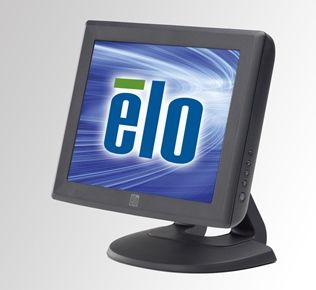

1215L 12.1" Touchscreen Monitor (Discontinued November 2011)
Overview
The 1215L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo. The space-saving 1215L features a choice of touch technologies and spill resistant sealing. Available with AccuTouch® five-wire resistive Technology, the most widely used for retail applications (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch® Surface Acoustic Wave Technology for superior image quality (activated with finger or glove), or Surface Capacitive Technology for compatibility with some existing systems.
Other features.
- Small footprint of a 12" LCD
- Economical and reliable
- Up to 800 x 600 resolution at 75 Hz
- Touchscreen sealed against spills
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Worldwide) - E432532
IntelliTouch (Worldwide) - E991639
Surface capacitive (Worldwide) - E083709外壳颜色
黑色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
Surface Capacitive (SCAP) - Single Touch对角线
12.1 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
9.7" x 7.3" / 246 mm x 185 mm
分辨率
800 x 600 at 60 Hz
其他支持的分辨率
800 x 600 at 56, 60, 70 or 75 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
水平: ±70° 或 140° 总计 / 垂直: ±50° 或 100° 总计
色彩
262000
亮度 (标准)
LCD panel: 200 nits
AccuTouch: 164 nits
IntelliTouch: 184 nits
Surface capacitive: 170 nits响应时间 - 总计 (标准)
35 msec
对比度
500:1
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, recall default, RGB (color temp), OSD exit, clock, phase, sharpness, OSD H/V position, OSD time, auto adjust, input select
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls视频输入格式
Analog VGA
视频输入信号接口
Mini D-Sub 15-Pin VGA type
功耗 (标准)
16W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 85-265 VAC, 47–63 Hz / DC: 12.0 V ± 0.75V
输入接口
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz
显示器尺寸 (不含底座)
11.9" x 6.6" x 11.3" / 301 mm x 168 mm x 286 mm
运输尺寸
14.77" x 10.24" x 14.38" / 375 mm x 260 mm x 365 mm
重量 (不含包装)
8.2 lbs / 3.7 kg
重量 (含包装)
13.6 lbs / 6.2 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% - 80%
Storage: 10% - 90%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
安装选项
75 mm VESA mount
Threaded-through mounting holes, under stand其他功能
Security lock receptacle
质保
3年
机构认证
UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B
电源线
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N - E540272.
可替换DC电源
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E785134, is available at additional cost.
AC电源线
AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
触控/视频线:
Detachable touch and video cables are included
