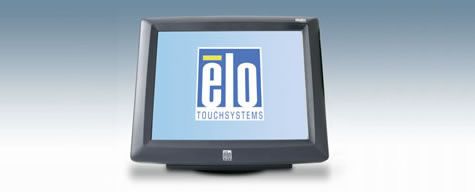

1229L 12" Touchscreen Monitor (Discontinued April 2006)
Overview
The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
- "Designed for touch" features such as a stable tilt base
- Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology, Surface Capacitive Technology or CarrollTouch Infrared Technology
- Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
- Optional rear-facing customer display
- Optional biometric fingerprint recognition device
- Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on base bottom for tabletop security
- Base removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (USB, Antiglare, Worldwide) - 839902-000
AccuTouch (USB, Antiglare, Worldwide) - D49457-000
CarrollTouch (USB, Antiglare, Worldwide) - F94006-000
IntelliTouch (USB, Antiglare, Worldwide) - D16736-000外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
CarrollTouch Infrared Technology对角线
12.1 英寸对角线,有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
9.69" x 7.27" / 246 mm x 184.5 mm
分辨率
800 x 600 at 60 Hz
其他支持的分辨率
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±60° or 120° total / Vertical: 50°/40° or 90° total
色彩
16.2 million with dithering (6 bit)
亮度 (标准)
LCD panel: 300 nits
AccuTouch: 246 nits
CarrollTouch: 276 nits
IntelliTouch: 276 nits响应时间 - 总计 (标准)
40 msec
对比度
300:1
触控界面
USB
屏幕显示 (OSD)
OSD lockouts for power and user controls
用户控件
OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
OSD languages: English, French, German, Spanish, Japanese
OSD disable/enable: power, OSD menu扬声器
Two watt/channel speakers located in display head
视频输入格式
RGB analog
视频输入信号接口
Mini D-Sub 15-Pin VGA type
电源
External brick
Output voltage/current: 12 VDC at 4.0 amps max.输入电压
100-240 VAC, 50-60 Hz
输入频率
Horizontal: 31.5-50 kHz / Vertical: 56.3-85 Hz
显示器尺寸 (含底座)
13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm
重量 (不含包装)
11.9 lbs / 5.4 kg
重量 (含包装)
19.8 lbs / 9 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20-80%
Storage: 5-95%
noncondensingMTBF
50,000小时演示
安装选项
75 mm VESA mount
Removable base
Optional stability plate其他功能
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle质保
3年
背光灯寿命
Min 50,000 hours to half brightness
机构认证
UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick
电源线
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.可选电源适配器
Elo p/n: E137360, available at additional cost.
触控/视频线:
All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: C41696-000, available at additional cost.
