1229L 12" Touchscreen Monitor (Discontinued August 2009)
Overview

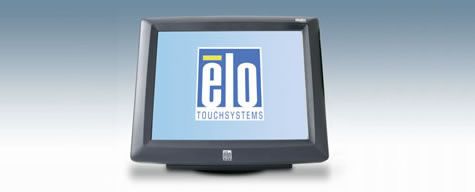

The 1229L multifunction touchmonitor may be ordered with up to three integrated peripherals, including an ergonomically-placed magnetic stripe reader (MSR), biometric fingerprint recognition device, and a rear-facing customer display. All are incorporated into the monitor housing and designed to flow with its elegant styling. Available with a choice of touch technologies, the 1229L is fully configurable for a variety of applications in the retail, hospitality, medical, gaming, and amusement markets where its compact design efficiently saves valuable work space as well as minimizing connections.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs
- "Designed for touch" features such as a stable tilt stand
- Available with AccuTouch® Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch® Surface-Wave Technology or Surface Capacitive Technology
- Optional ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version
- Optional rear-facing customer display
- Optional biometric fingerprint recognition device
- Integrated USB hub with two available USB connections. Also allows a single USB cable to carry the touch signal, MSR and fingerprint data, and output to the customer display. The serial version has cables/external connectors to carry the touch and MSR data.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on stand bottom for tabletop security
- Stand removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Dual serial/USB, Antiglare) - E742732
AccuTouch (Serial, Antiglare) - E984449
AccuTouch (Serial, Antiglare) - E015811
AccuTouch (USB, Antiglare) - E607817
AccuTouch (USB, Antiglare) - E518641
AccuTouch (USB, Antiglare) - E263847
AccuTouch (USB, Antiglare) - E187592
AccuTouch (USB, Antiglare) - E927973
IntelliTouch (Dual serial/USB, Antiglare) - E943243
IntelliTouch (Serial, Antiglare) - E384663
IntelliTouch (Serial, Antiglare) - E437198
IntelliTouch (Serial, Antiglare) - E213793
IntelliTouch (USB, Antiglare) - E193472
IntelliTouch (USB, Antiglare) - E329070
IntelliTouch (USB, Antiglare) - E811391
IntelliTouch (USB, Antiglare) - E948271
IntelliTouch (USB, Antiglare) - E907330
IntelliTouch (USB, Antiglare) - E488431
IntelliTouch (USB, Antiglare) - E363364
IntelliTouch (USB, Antiglare) - E737600
Surface capacitive (Dual serial/USB, Antiglare) - E118276
Surface capacitive (USB, Antiglare) - E826528外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
Surface Capacitive (SCAP) - Single Touch对角线
12.1 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
9.7" x 7.3" / 246 mm x 185 mm
分辨率
800 x 600 at 60 Hz
其他支持的分辨率
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±65° or 130° total / Vertical: 50°/45° or 95° total
色彩
1620万
亮度 (标准)
LCD panel: 350 nits
AccuTouch: 287 nits
IntelliTouch: 322 nits
Surface capacitive: 294 nits响应时间 - 总计 (标准)
45 msec
对比度
450:1
视频输入格式
Analog VGA
视频输入信号接口
Mini D-Sub 15-Pin VGA type
触控界面
Dual serial/USB: E742732, E943243, E118276
Serial: E984449, E015811, E384663, E437198, E213793
USB: E607817, E518641, E263847, E187592, E927973, E193472, E329070, E811391, E948271, E907330, E488431, E363364, E737600, E826528电源
External DC (power brick)
输入电压
DC: 12 VDC at 4.0 amps max.
输入接口
DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31.5-48 kHz / Vertical: 56.3-75 Hz
功耗 (标准)
Monitor: 20 W
VFD customer display: 3 W
USB fingerprint reader: 0.5 W
USB magnetic stripe reader: 0.5 W
2 USB external ports power when loaded: 5 W
Total with all possible accessories: 29 W扬声器
Two watt/channel speakers located in display head
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, recall defaults RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, resolution
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controls显示器尺寸 (含底座)
13.9" x 11.6" x 11.8" / 353mm x 295mm x 300mm
运输尺寸
18.50" x 18.50" x 13.00" / 470mm x 470mm x 330mm
重量 (含底座)
11.9 lbs / 5.4 kg
运输重量 (含底座)
19.8 lbs / 9.0 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20-80%
Storage: 5-95%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCD底座选项
Tilt, removable
安装选项
75 mm VESA mount
Optional stability plate其他功能
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle背光灯寿命
Typical 50,000 hours to half brightness
质保
3年
机构认证
UL, cUL, FCC, TÜV-GS, CE, VCCI, C-Tick
电源线
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying - Elo p/n: 276875-000.可替换DC电源
Elo p/n: E137360, available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
触控/视频线:
All appropriate cables are included and are detachable. Serial versions include an RJ45 to DB9 serial conversion cable.
Stability Plate
Mounts to the pedestal of the monitor to increase stability - Elo p/n: C41696-000, available at additional cost.
