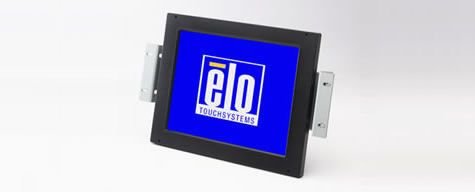

1247L 12.1" Touchscreen Monitor (Discontinued November 2006)
Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.
Other Features
- Higher brightness, better contrast, and wider viewing angle than most 12" LCDs (300 nits, 300:1, 120° x 90°)
- Up to 800 x 600 resolution at 75 Hz
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with watertight 0.5 mm seal
- Multiple mounting options including rear-mount or VESA mount
- IntelliTouch® Surface Wave Technology on pure glass for the ultimate in image quality
- Finger or gloved hand operation
- Serial touch interface
- Multilingual remote on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
规格
-
技术
产品料号
IntelliTouch (Antiglare, Worldwide) - E45839-000
外壳颜色
黑色
触控技术
SAW (IntelliTouch®表面声波) - 单点触控
对角线
12.1 英寸对角线，有源矩阵 TFT LCD (LED)
显示器厚度
2.36" / 60 mm
长宽比
4:3
有效显示区域 (mm)
9.69" x 7.27" / 246 mm x 184.5 mm
分辨率
800 x 600
其他支持的分辨率
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
640 x 350 at 70 Hz可视角度
Horizontal: ±65° or 130° total / Vertical: 65°/40° or 105° total
色彩
262000
亮度 (标准)
LCD panel: 350 nits
IntelliTouch: 320 nits响应时间 - 总计 (标准)
40 msec
对比度
500:1
视频输入格式
RGB analog
视频输入信号接口
Mini D-Sub 15-Pin VGA type
触控界面
Dual serial/USB
电源
Type: External brick
Output voltage/current: 12 volts at 3.33 amps max输入电压
100-240 VAC, 50-60 Hz
输入频率
Horizontal: 31.5-48.1 kHz
Vertical: 56.3-75 Hz屏幕显示 (OSD)
Remote OSD with 1.8m cable
用户控件
Remote OSD: menu, down, up, auto/sel
OSD: contrast, brightness, V/H position, recall default, RGB, OSD exit, sharpness, phase, clock, OSD H/V position, OSD time, auto adjust, OSD languages (English, French, German, Spanish, Japanese) and information显示器尺寸 (不含底座)
11.92" x 9.53" x 2.36" / 302.5 mm x 242 mm x 60 mm
显示器尺寸 (含底座)
14.14" x 9.53" x 2.36" / 359 mm x 242 mm x 60 mm
重量 (不含包装)
8.8 lbs / 4 kg
重量 (含包装)
13.2 lbs / 6.0 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20%-85%
Storage: 5%-95%
noncondensing安装选项
75 mm VESA mount
Mounting brackets included
Rear mount through bezel or with included brackets其他功能
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play背光灯寿命
Minimum 50,000 hours to half brightness
质保
3年
机构认证
UL/cUL (*recognized component), FCC, TÜV-Bauart, CE, VCCI, C-Tick
电源线
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.触控/视频线:
Detachable touch and video cables are included
