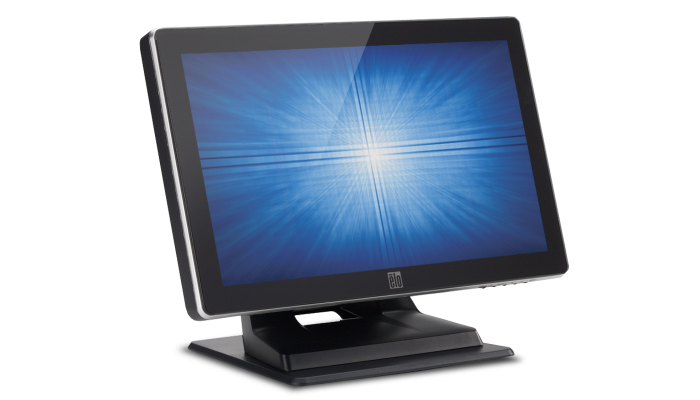

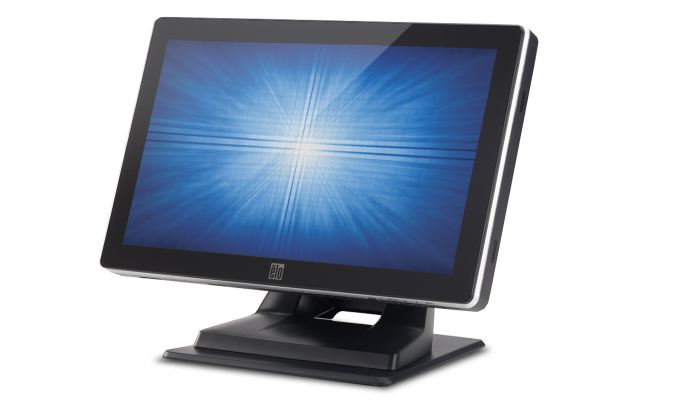

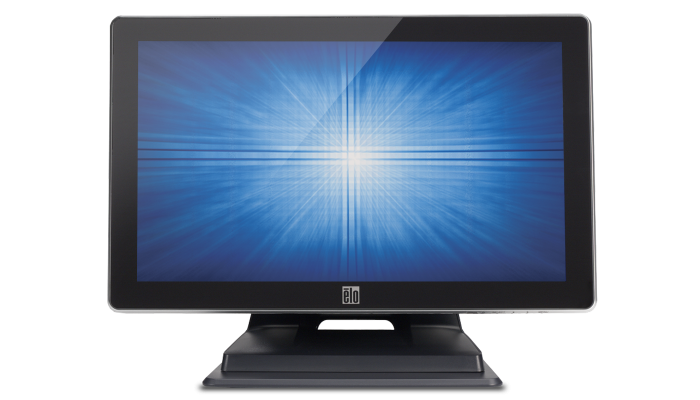

1519L 15" LCD Desktop Touchscreen Monitor (Discontinued March 2016)

规格

• 技术

  ---

  产品料号

  AccuTouch (China) - E821837
  AccuTouch (EMEA) - E175716
  IntelliTouch (Japan) - E353788
  IntelliTouch ZB (China) - E176449
  IntelliTouch ZB (EMEA) - E114849
  IntelliTouch ZB (Americas) - E232070
  IntelliTouch Dual-touch ZB (Worldwide) - E287348
  Projected Capacitive (Worldwide) - E651942

  外壳颜色

  黑色

  触控技术

  五线电阻 (AccuTouch®) - 单点触控
  SAW (IntelliTouch®表面声波) - 单点触控
  PCAP (TouchPro® 投射式电容)-10点触控
  SAW ZB (IntelliTouch®表面声波) - 单点触控
  SAW ZB (IntelliTouch® 表面声波) - 双点触控

  对角线

  15.6 英寸对角线，有源矩阵 TFT LCD (LED)

  长宽比

  16:9

  有效显示区域 (mm)

  13.4" x 7.6" / 344mm x 194mm

  分辨率

  1366 x 768 at 60 Hz

  其他支持的分辨率

  720 x 350 at 70Hz (may not display at full screen)
  720 x 400 at 70Hz
  640 x 480 at 60, 72, 75Hz
  800 x 600 at 56, 60, 72, 75Hz
  832 x 624 at 75Hz
  1024 x 768 at 60, 70, 75Hz
  1280 x 800 at 60 Hz
  1280 x 960 at 60Hz
  1280 x 1024 at 60, 75Hz
  1360 x 768 at 60Hz
  1366 x 768 at 60 Hz
  1440 x 900 at 60 Hz
  1600 x 1200 at 60 Hz
  1680 x 1050 at 60 Hz



  可视角度

  Horizontal: ±45° or 90° total / Vertical: -20°/+45° or 65° total

  色彩

  1670万

  亮度 (标准)

  LCD panel: 250 nits
  IntelliTouch: 225 nits
  AccuTouch: 200 nits
  Projected Capacitive (PCAP): 225 nits

  响应时间 - 总计 (标准)

  8 msec

  对比度

  500:1

  屏幕显示 (OSD)

  Controls: menu, up, down, select, power
  Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, OSD language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), Recall Defaults, Sharpness, Volume, Mute
  Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
  Lockouts: power, user controls

  音频输入接口

  3.5mm TRS jack

  音频信号输入频率

  1Vrms maximum stereo signal (standard PC line out)

  耳机输出接口

  3.5mm TRS jack x 2, wired in parallel

  耳机输出信号

  Delivers 90mW of power into a single 32-ohm stereo load (for 1KHz signal)

  扬声器

  Two 2W internal speakers

  视频输入格式

  Analog VGA

  视频输入信号接口

  Mini D-sub 15-pin VGA type

  功耗 (标准)

  Monitor only, no audio: 15.6 W
  Monitor plus AC/DC Adapter at 230V/50 Hz, no audio: 18.4W

  电源

  AC-DC power adapter

  输入电压

  12 V ±5%

  输入接口

  Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)

  输入频率

  Horizontal: 30-83 kHz / Vertical: 50-75 Hz

  适配器输入连接器

  IEC 60320 C14

  适配器输入连接器

  100-240VAC, 50/60 Hz

  显示器尺寸 (含底座)

  15.1" x 8.4" x 10.9" / 383mm x 213mm x 277mm

  运输尺寸

  18.7" x 13.8" x 8.86" / 47.5cm x 35.0cm x 22.5cm

  重量 (含底座)

  11.3 lb / 5.14 kg

  重量 (不含底座)

  7.5 lb / 3.43 kg

  运输重量 (含底座)

  16.4 lb / 7.4 kg

  工作温度

  0°C to 40°C / 32°F to 104°F

  储存温度

  -20°C to 60°C / -4°F to 140°F

  湿度

  Operating: 20%-80%
  Storage: 10%-90%

  高度

  Operating: 0m-3,658m / 12,000 ft.
  Storage: 0m-12,192m / 40,000 ft.

  密封性

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000小时演示

  底座选项

  Tilt, pivot (landscape/portrait mode)

  安装选项

  With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode
  75 mm VESA mount

  其他功能

  Security lock receptacle

  质保

  3年

  机构认证

  North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
  South America: Argentina S-mark
  Asia: China CCC, Japan VCCI, Korea KC, Korea KKC, Taiwan BSMI
  Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE

  替换电缆套件

  Elo P/N - E410150 (Beige)

  可选 IntelliTouch 手写笔

  D82064-000, available at additional cost.

  可选外设

  磁条阅读器 (MSR) – Elo P/N: E039290
  北美适配器 - Elo P/N: E005277
  欧洲与韩国适配器 - Elo P/N: E571601
  英国适配器 - Elo P/N: E180092
  中国适配器 - Elo P/N: E558862
  台湾电源适配器 - Elo P/N: E818655
  日本电源适配器 - Elo P/N: E182546
  阿根廷电源适配器 - Elo P/N: E887099

  支架，支架和套件

  I系列22寸桌面安装底座 (100mm VESA) - Elo P/N: E044356

  可选底座

  Stand - Elo p/n: E069296
