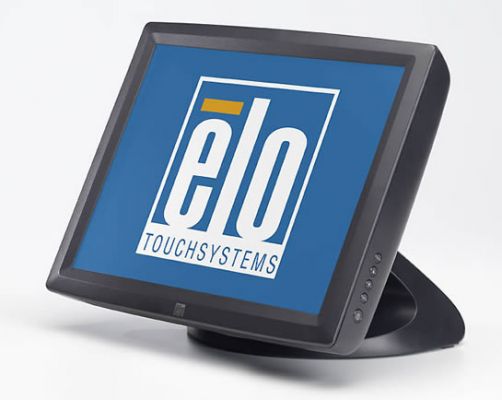

1522L 15" Touchscreen Monitor (Discontinued November 2011)
Overview
The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, CarrollTouch Infrared, Surface Capacitive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.
Other features.
- Long lasting product cycle – enclosure controlled by Elo specifications
- Small integrated design
- A touchmonitor that can function as a desktop or wall-mountable system
- Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, and Surface Capacitive Technology
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Touchscreen sealed to resist dirt, dust and splashes
- "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
- Controls on the side rather than the front, plus lockout function for public use
- Choice of short or tall monitor stand
- Choice of gray or beige finish
- Mounting holes on stand bottom for tabletop security
- Stand removable, VESA mounting option
- Worldwide agency approvals
- Security lock receptacle
- 3 year warranty
规格
-
技术
产品料号
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E460428
Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E172222
Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E796533
Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E206623
Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E520186
Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E754958外壳颜色
Dark Gray or Beige
触控技术
声学脉冲识别 - 单触
Surface Capacitive (SCAP) - Single Touch对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304mm x 228mm
分辨率
1024 x 768 at 60 Hz
其他支持的分辨率
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±70° or 140° total / Vertical: ±60° or 120° total
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
Acoustic Pulse Recognition: 230 nits
Surface capacitive: 213 nits响应时间 - 总计 (标准)
12 msec
对比度
500:1
触控界面
USB: E460428, E172222, E796533, E206623, E520186, E754958
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controls扬声器
Two watt/channel speakers located in display head
视频输入格式
Analog VGA
视频输入信号接口
Mini D-Sub 15-Pin VGA type
功耗 (标准)
30W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
输入接口
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
显示器尺寸 (含底座)
14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
Dimensions vary with stand type and position; see drawing for tall stand dimensions运输尺寸
Short stand: 17.53" x 13.00" x 14.97" / 445mm x 330mm x 380mm
Tall stand: 17.53" x 11.03" x 17.34" / 445mm x 280mm x 440mm重量 (含底座)
Short stand: 14.3 lbs / 6.5 kg
Tall stand: 14.9 lbs / 6.8 kg运输重量 (含底座)
Short stand: 19.6 lbs / 8.9 kg
Tall stand: 20.2 lbs / 9.2 kg工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20-80%
Storage: 5-95%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, removable, short or tall stand
安装选项
75mm VESA mount
其他功能
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle质保
3年
机构认证
EMC: CE, C-Tick, FCC, VCCI (Class B)
Safety: CB, CE, cULus, S (Argentina), TÜV T MarkAC电源线
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.
AC power cables for power brick are also available at additional cost:
United States: Elo P/N - E042259
Europe: Elo P/N - E690013
United Kingdom: Elo P/N - E235317可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
触控/视频线:
All appropriate cables are included and are detachable.
可选外设
磁条阅读器 (深灰色 MSR) - Elo P/N: E560084
磁条阅读器 (米色) - Elo P/N: E895934
