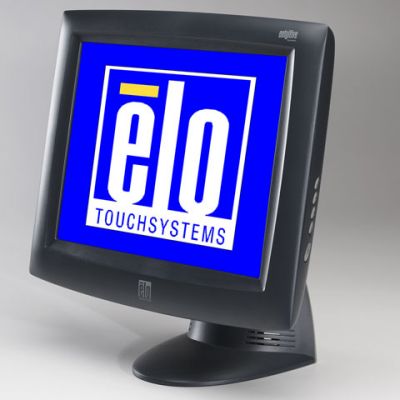

1525L 15" Touchscreen Monitor (Discontinued October 2005)
Overview
The 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- "Designed for touch" features such as a stable tilt base
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology, CarrollTouch Infrared Technology, IntelliTouch® Surface Wave Technology, or Surface Capacitive.
- Serial or USB touch interface
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Internal power supply
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Serial, Antiglare, Worldwide) - E75784-000
AccuTouch (Dual serial/USB, Antiglare, Worldwide) - 947098-000
CarrollTouch (Serial, Antiglare, Worldwide) - F91950-000
CarrollTouch (USB, Antiglare, Worldwide) - A62620-000
IntelliTouch (Serial, Antiglare, Worldwide) - E70597-000
IntelliTouch (Dual serial/USB, Antiglare, Worldwide) - 726256-000
Surface capacitive (Dual serial/USB, Antiglare, Worldwide) - F41115-000外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
Surface Capacitive (SCAP) - Single Touch
CarrollTouch Infrared Technology对角线
15 英寸对角线,有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
11.9" x 8.9" / 304mm x 228mm
分辨率
1024 x 768 at 60, 70 or 75 Hz
其他支持的分辨率
1024 x 768 at 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz可视角度
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
色彩
16.2 million with dithering (6 bit)
亮度 (标准)
LCD panel: 300 nits
AccuTouch: 246 nits
CarrollTouch: 276 nits
IntelliTouch: 276 nits
Surface capacitive: 237 nits响应时间 - 总计 (标准)
25 msec
对比度
500:1
触控界面
Serial: E75784-000, F91950-000, E70597-000
Dual Serial/USB: 947098-000, 726256-000, F41115-000
USB: A62620-000屏幕显示 (OSD)
Digital OSD
用户控件
Side: auto, enter, ±, menu, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menu扬声器
Two built-in, rear-facing 1W speakers in display head
视频输入格式
Analog (no proprietary video card needed)
视频输入信号接口
Mini D-Sub 15-Pin VGA type
功耗 (标准)
20 W max.
电源
Type: Internal power supply
输入电压
100-240 VAC, 50-60 Hz
输入频率
Horizontal: 31.5-60 kHz / Vertical: 56-75 Hz
显示器尺寸 (含底座)
15.37" x 15.40" x 8.2" / 390mm x 391mm x 208mm
重量 (不含包装)
14.7 lbs / 6.67 kg
重量 (含包装)
20.45 lbs / 9.28 kg
工作温度
0°C to 40°C
储存温度
-30°C to 60°C
湿度
Operating: 20%-80%
Storage: 5%-95%
noncondensingMTBF
50,000小时演示
安装选项
75mm VESA mount
Removable base
Wall-mountable when installed by qualified personnel
Optional stability plate其他功能
Sealing
质保
3年
背光灯寿命
Min 40,000 hours to half brightness
机构认证
UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick, Class B
电源线
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo P/N: 276875-000.触控/视频线:
Detachable touch and video cables are included.
Stability Plate
C41696-000 - Mounts to the pedestal of the monitor to increase stability. Available at additional cost.
