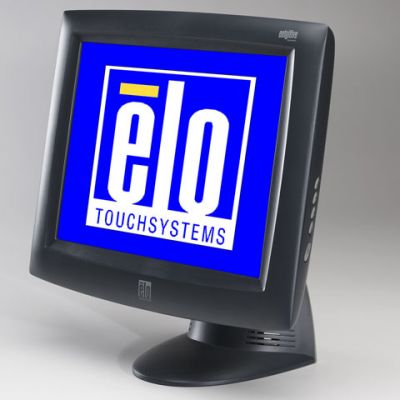

1525L 15" Hi-Bright Touchscreen Monitor (Discontinued October 2005)
Overview
The 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- "Designed for touch" features such as a stable tilt base
- Cables hidden from user's view
- Built-in speakers located in display head
- Available with surface capacitive touch technology
- Dual serial/USB interface
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Internal power supply
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
Surface capacitive (Dual serial/USB, Antiglare, Worldwide) - E074047
外壳颜色
深灰色
触控技术
Surface Capacitive (SCAP) - Single Touch
对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
11.9" x 8.9" / 304 mm x 228 mm
分辨率
1024 x 768 at 60, 70 or 75 Hz
可视角度
水平: ±70°或 140°总计 /垂直: 65°/60°或 125°总计
色彩
16.2 million with dithering (6 bit)
亮度 (标准)
LCD panel: 400 nits
Surface Capacitive: 316 nits响应时间 - 总计 (标准)
16 msec
对比度
500:1
视频输入格式
Analog (no proprietary video card needed)
视频输入信号接口
Mini D-Sub 15-Pin VGA type
触控界面
Dual serial/USB
电源
Type: Internal power supply
输入电压
100-240 VAC, 50-60 Hz
输入频率
Horizontal: 31.5-60 kHz / Vertical: 56-75 Hz
扬声器
Two built-in, rear-facing 1W speakers in display head
屏幕显示 (OSD)
Digital OSD
用户控件
Side: auto, enter, ±, menu, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menu显示器尺寸 (含底座)
15.37" x 15.40" x 8.2" / 390mm x 391mm x 208mm
重量 (不含包装)
14.7 lbs / 6.67 kg
重量 (含包装)
20.45 lbs / 9.28 kg
质保
3年
机构认证
UL, cUL, FCC
