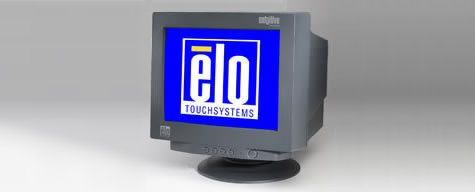

1526C 15" CRT Touchmonitor (Discontinued November 2004)
Overview
For delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch® ZB touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.
Features
- Our lowest cost touchmonitor
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original picture quality
- Digital on-screen display (OSD) with lockout function for public use
- Power Save function
- Rigid (removable) base
- Innovative touchscreen sealing
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Antiglare, Worldwide) - 263864-000
AccuTouch (Antiglare, Worldwide) - 516252-000
IntelliTouch ZB (Antireflective, Worldwide) - 139862-000
IntelliTouch ZB (Antireflective, Worldwide) - 639794-000外壳颜色
黑色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW ZB (IntelliTouch®表面声波) - 单点触控对角线
15 英寸对角线,有源矩阵 TFT LCD (LED)
显示器厚度
15.2" / 385 mm
长宽比
4:3
有效显示区域 (mm)
Horizontal: 10.2" / 260 mm
Vertical: 7.7" / 195 mm分辨率
800 x 600 at 85 Hz
其他支持的分辨率
1024 x 768 at 60, 70, 75, or 85 Hz
800 x 600 at 60, 72, 75, or 85 Hz
640 x 480 at 60, 72, 75, or 85 Hz色彩
1670万
Dot Pitch
0.28 mm
对比度
300:1
Touch Interfaces
Serial: 263864-000, 139862-000
USB: 516252-000, 639794-000屏幕显示 (OSD)
Digital OSD with lockout capability
Video Bandwidth
67 MHz
视频输入格式
Analog (no proprietary video card needed)
视频输入信号接口
Mini D-Sub 15-Pin (female)
功耗 (标准)
70 W max.
电源
90-264 VAC, 50-60 Hz
输入频率
Horizontal: 30-70 kHz
Vertical: 50-160 Hz显示器尺寸 (不含底座)
14.3" x 12.9" x 15.2" / 362 mm x 328 mm x 385 mm
重量 (不含包装)
29 lbs / 13.0 kg
重量 (含包装)
33 lbs / 15.0 kg
工作温度
0°C to 40°C
储存温度
-40°C to 60°C
湿度
Operating: 10% to 90%
Storage: 10% to 90%
noncondensingMTBF
50,000小时演示
安装选项
Rigid (removable) base
其他功能
VESA DDC 1/2 B Plug and Play
质保
2年
机构认证
UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)
电源线
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000触控/视频线:
Detachable touch and video cables are included
