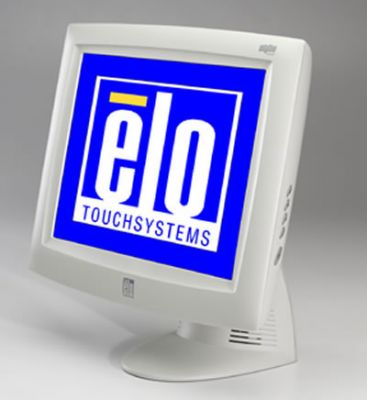

1526L 15" Touchscreen Monitor (Discontinued June 2007)
Overview
The 1526L carries worldwide medical certifications and utilizes AccuTouch five-wire resistive touchscreen technology, the most widely used technology for medical equipment applications. Certifications include UL, cUL 2601-1, C22.2 No. 601.1, CE MDD, Demko EN60601-1, and CB Report & Certificate to all member deviations. The innovative IPX1 enclosure design, coupled with the addition of a special gasket, ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. The drip-proof nature of this touchmonitor also provides a seal which allows the monitor to be sterilized with hospital-grade disinfectants. As a result, this monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The AccuTouch touchscreen can be activated with a gloved hand or any stylus-a critical capability for medical applications. The 1526L is a truly integrated solution for medical equipment OEMs and health care systems integrators seeking a reliable, durable and cost-effective medical grade touchmonitor.
Other features.
- Worldwide medical certifications and IPX1 drip-proof enclosure
- "Designed for touch" features such as a stable tilt base
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology and serial interface
- Touch can be activated with gloves or any stylus
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- External power supply
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Worldwide) - F65991-000
外壳颜色
米白色
触控技术
五线电阻 (AccuTouch®) - 单点触控
对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
11.9" x 8.9" / 304mm x 228mm
分辨率
1024 x 768 at 60, 70 or 75 Hz
其他支持的分辨率
1024 x 768 at 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz可视角度
Horizontal: ±75° or 150° total / Vertical: 70/60° or 130° total
色彩
16.7 million, 8-bit per color data
亮度 (标准)
LCD panel: 350 nits
AccuTouch: 255 nits对比度
450:1
视频输入格式
VGA/SVGA/XGA analog
视频输入信号接口
Mini D-Sub 15-Pin (female)
电源
100-240 VAC, 50-60 Hz
输入电压
15V
输入频率
Horizontal: 31.5-60 kHz; Vertical: 56-75 Hz
功耗 (标准)
32 W max.
扬声器
Two built-in, rear-facing 1W speakers in display head
屏幕显示 (OSD)
Digital OSD
用户控件
Side: auto, enter, ±, menu, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menu重量 (不含包装)
15.2 lbs / 6.9 kg
重量 (含包装)
21.6 lbs / 9.8 kg
工作温度
10°C to 40°C
储存温度
-30°C to 60°C
湿度
Operating: 20%-80%; Storage: 5%-90%; noncondensing
安装选项
Removable base
VESA mount
Wall-mountable when installed by qualified personnel背光灯寿命
40,000 hours to half brightness
质保
3年
机构认证
FCC, IC, C-Tick Class B, UL, cUL Medical UL 2601-1, C22.2 No. 601.1 (Drip-proof IPX1, AccuTouch only), CE Medical Device Directive EN60601-1, Demko Medical EN60601-1, CB Medical IEC 60601-1. Includes EMC requirements EN, IEC 60601-1-2.
电源线
A 10' hospital grade North America power cord and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.
触控/视频线:
Detachable touch and video cables are included.
