1529L 15" Touchscreen Monitor (Discontinued December 2013)
Overview

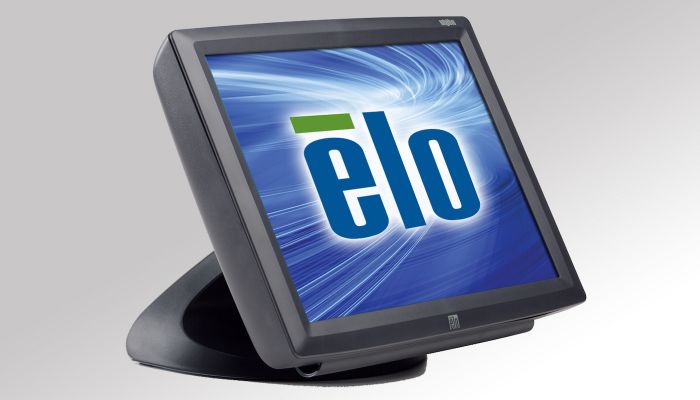

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR). The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt stand that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.
Other features.
- Economical and reliable
- Up to 1024 x 768 resolution at 75 Hz
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove).
- Optional ergonomic 3 stripe MSR Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Internal power supply
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch - E582772
AccuTouch - E785333
AccuTouch - E619005
AccuTouch - E587776
AccuTouch - E659634
IntelliTouch - E101984
IntelliTouch - E641269
IntelliTouch - E926109
IntelliTouch - E229149
IntelliTouch - E273617
IntelliTouch - E733714外壳颜色
Dark Gray or Beige
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线
15 英寸对角线,有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304mm x 228mm
分辨率
1024 x 768 at 60 Hz
其他支持的分辨率
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±70° or 140° total / Vertical: ±60° or 120° total
色彩
1620万
亮度 (标准)
LCD panel: 350 nits
AccuTouch: 280 nits
IntelliTouch: 315 nits响应时间 - 总计 (标准)
8 msec
对比度
500:1
触控界面
Serial/USB: E582772, E785333, E619005, E587776, E101984, E641269, E926109, E229149
USB: E659634, E273617, E733714屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controls扬声器
Two watt/channel speakers located in display head
视频输入格式
Analog VGA, DVI-D
视频输入信号接口
Mini D-Sub 15-Pin VGA type, DVI-D connector
功耗 (标准)
Monitor: 20 W
USB magnetic stripe reader: 0.5 W
2 USB external ports power when loaded: 5 W
Total with all possible accessories: 31 W电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V
输入接口
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31-60 kHz / Vertical: 56-75 Hz
显示器尺寸 (含底座)
14.0" x 10.4" x 11.3" / 355mm x 265mm x 286mm
运输尺寸
Tall stand: 21.65" x 11.02" x 19.69" / 550mm x 280mm x 500mm
Short stand with scanner: 21.65" x 16.73" x 13.58" / 550mm x 425mm x 345mm
Short stand: 19.09" x 16.73" x 13.00" / 485mm x 425mm x 330mm重量 (含底座)
Short stand: 14.4 lbs / 6.6 kg
重量 (不含底座)
10.6 lbs / 4.8 kg
运输重量 (含底座)
Short stand: 21.2 lbs / 9.6 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20-80%
Storage: 5-95%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, removable, reverse (wall mount), short or tall stand
安装选项
75mm VESA mount
其他功能
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle
Two external USB ports质保
3年
AC电源线
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n - E042259
Europe: Elo p/n - E690013
United Kingdom: Elo p/n - E235317可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E137360, is available at additional cost.
可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.
触控/视频线:
All appropriate cables are included and are detachable.
支架,支架和套件
Short Desktop stand (Dark gray) - Elo p/n: E252977
Tall Desktop stand (Dark gray) - Elo p/n: E930466
Short Desktop stand (Beige) - Elo p/n: E819036
Tall Desktop stand (Beige) - Elo p/n: E024520
1529L VESA Plate – Elo p/n: E295293
