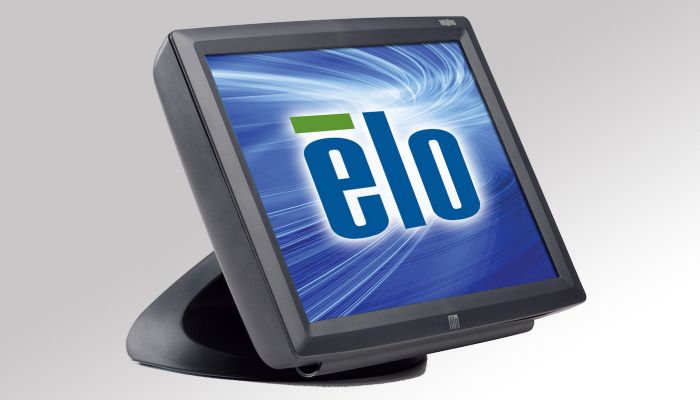

1529L 15" Touchscreen Monitor (Discontinued May 2006)
Overview
The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a choice of either a 2 x 20 vacuum fluorescent rear-facing customer display (VFD) or the first consumer-touchable 12.1" rear-facing customer display. The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
- "Designed for touch" features such as a stable tilt base
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, or Surface Capacitive.
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Optional rear-facing customer display available as either a 20x2 USB vacuum fluorescent display (VFD) or a 12.1" LCD monitor with or without touch.
- Optional biometric fingerprint recognition device
- USB hub or dual serial/USB interface available on certain configurations
- Choice of gray or beige finish,
- Choice of short, tall, or no monitor stand. No stand version also omits the logo.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on base bottom for tabletop security
- Base removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
Rear-Facing Customer Display (12.1" LCD):
IntelliTouch (Antiglare, Worldwide) - C20438-000
IntelliTouch (Antiglare, Worldwide) - C42629-000
Rear-Facing Customer Display (12.1" LCD), Magnetic Stripe Reader (MSR):
IntelliTouch (Antiglare, Worldwide) - C20438-000
IntelliTouch (Antiglare, Worldwide) - C42629-000
AccuTouch (Antiglare, Worldwide) - F09152-000
AccuTouch (Antiglare, Worldwide) - E34949-000
CarrollTouch (Antiglare, Worldwide) - F39300-000
CarrollTouch (Antiglare, Worldwide) - D29715-000
CarrollTouch (Antiglare, Worldwide) - D38020-000
CarrollTouch (Antiglare, Worldwide) - E55136-000
Acoustic Pulse (Antiglare, Worldwide) - E700641
IntelliTouch (Antiglare, Worldwide) - C98615-000
IntelliTouch (Antiglare, Worldwide) - A97407-000
IntelliTouch (Antiglare, Worldwide) - E36679-000
IntelliTouch (Antiglare, Worldwide) - C12144-000外壳颜色
Dark Gray or Beige
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触
Surface Capacitive (SCAP) - Single Touch
CarrollTouch Infrared Technology对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
11.98" x 8.98" / 304mm x 228mm
分辨率
1024 x 768
其他支持的分辨率
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
色彩
16.2 million with dithering (6 bit)
亮度 (标准)
LCD panel: 350 nits
AccuTouch: 287 nits
CarrollTouch: 322 nits
IntelliTouch: 322 nits
Surface Capacitive: 294 nits响应时间 - 总计 (标准)
25 msec
对比度
400:1
视频输入格式
RGB analog; DVI-D
视频输入信号接口
Mini D-Sub 15-Pin VGA type; DVI-D connector
触控界面
USB hub: C20438-000, C42629-000, E74257-000, E02656-000, F09152-000, E34949-000, F39300-000, D29715-000, D38020-000, E55136-000, C98615-000, A97407-000, E36679-000, C12144-000
USB: E700641电源
AC/DC input internal power supply; Power: 50 W max.; only AC power cable supplied; 12V power supply optional
输入电压
AC: 85-265 VAC, 47-63 Hz.; DC: 12.0V ± 0.75V
输入频率
Horizontal: 31-60 kHz / Vertical: 56-75 Hz
功耗 (标准)
30 W
扬声器
Two watt/channel speakers located in display head
屏幕显示 (OSD)
OSD lockouts for power and user controls
用户控件
OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
OSD languages: English, French, German, Spanish, Japanese
OSD disable/enable: power, OSD menu显示器尺寸 (含底座)
13.99" x 11.27" x 10.44" / 355 mm x 286 mm x 265 mm
重量 (不含包装)
14.44 lb / 6.55 kg
重量 (含包装)
21.16 lb / 9.60 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20-80%; Storage: 5-95%; noncondensing
安装选项
75 mm VESA mount
Removable base其他功能
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle背光灯寿命
Min 40,000 hours to half brightness
质保
3年
机构认证
UL, cUL, FCC-A, TÜV-GS, CE, VCCI, C-Tick
AC电源线
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n - E540272.
可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E785134, is available at additional cost.
触控/视频线:
All appropriate cables are included and are detachable.
支架，支架和套件
Short Desktop stand (Dark gray) - Elo p/n: E252977
1529L VESA Plate – Elo p/n: E295293
