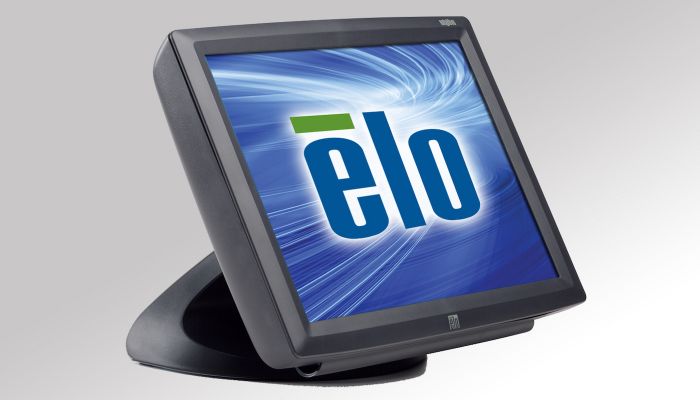

1529L 15" Touchscreen Monitor (Discontinued September 2009)
Overview
The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions and is now available with the new breakthrough Elo touch technology, Acoustic Pulse Recognition. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a 2 x 20 vacuum fluorescent rear-facing customer display (VFD). The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.
Other features.
- Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
- "Designed for touch" features such as a stable tilt base
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, Surface Capacitive Technology, or the newest Elo touch technology, Acoustic Pulse Recognition.
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
- Optional 20x2 USB vacuum fluorescent display (VFD) rear-facing customer display
- Optional biometric fingerprint recognition device
- USB hub or dual serial/USB interface available on certain configurations
- Choice of gray or beige finish
- Choice of short, tall, or no monitor stand. No stand version also omits the logo.
- Single power supply for all optional devices
- Cables hidden from user's view
- Built-in speakers located in display head
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Mounting holes on base bottom for tabletop security
- Base removable, VESA mounting option
- Controls on the side rather than the front, plus lockout function for public use
- Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
- Diagnostic LEDs for touch and video
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Worldwide) - E546488
AccuTouch (Worldwide) - E279342
AccuTouch (Worldwide) - E796307
AccuTouch (Worldwide) - E020488
AccuTouch (Worldwide) - E926511
AccuTouch (Worldwide) - E555205
AccuTouch (Worldwide) - E632357
AccuTouch (Worldwide) - E063265
AccuTouch (Worldwide) - E126282
AccuTouch (Worldwide) - E096781
AccuTouch (Worldwide) - E924006
AccuTouch (Worldwide) - E393179
AccuTouch (Worldwide) - E076187
AccuTouch (Worldwide) - E647575
AccuTouch (Worldwide) - E047935
AccuTouch (Worldwide) - E287402
AccuTouch (Worldwide) - E055718
Acoustic Pulse (Worldwide) - E646249
Acoustic Pulse (Worldwide) - E101434
Acoustic Pulse (Worldwide) - E111996
Acoustic Pulse (Worldwide) - E078837
Acoustic Pulse (Worldwide) - E882210
Acoustic Pulse (Worldwide) - E565489
Acoustic Pulse (Worldwide) - E833021
Acoustic Pulse (Worldwide) - E356826
Acoustic Pulse (Worldwide) - E608995
Acoustic Pulse (Worldwide) - E199054
Acoustic Pulse (Worldwide) - E773574
Acoustic Pulse (Worldwide) - E666063
Acoustic Pulse (Worldwide) - E447939
Acoustic Pulse (Worldwide) - E700641
Acoustic Pulse (Worldwide) - E817828
Acoustic Pulse (Worldwide) - E432559
Acoustic Pulse (Worldwide) - E100780
Acoustic Pulse (Worldwide) - E591196
Acoustic Pulse (Worldwide) - E140194
Acoustic Pulse (Worldwide) - E064766
Acoustic Pulse (Worldwide) - E780194
Acoustic Pulse (Worldwide) - E831960
Acoustic Pulse (Worldwide) - E128864
Acoustic Pulse (Worldwide) - E539795
Acoustic Pulse (Worldwide) - E598972
CarrollTouch (Worldwide) - E417282
CarrollTouch (Worldwide) - E705218
CarrollTouch (Worldwide) - E070995
CarrollTouch (Worldwide) - E795441
CarrollTouch (Worldwide) - E506999
CarrollTouch (Worldwide) - E767165
CarrollTouch (Worldwide) - E287070
CarrollTouch (Worldwide) - E744471
CarrollTouch (Worldwide) - E374721
CarrollTouch (Worldwide) - E908294
CarrollTouch (Worldwide) - E471821
CarrollTouch (Worldwide) - E495600
CarrollTouch (Worldwide) - E563628
CarrollTouch (Worldwide) - E783072
CarrollTouch (Worldwide) - E487971
CarrollTouch (Worldwide) - E075080
CarrollTouch (Worldwide) - E688262
CarrollTouch (Worldwide) - E813886
CarrollTouch (Worldwide) - E781200
CarrollTouch (Worldwide) - E398253
CarrollTouch (Worldwide) - E316086
IntelliTouch (Worldwide) - E516663
IntelliTouch (Worldwide) - E663024
IntelliTouch (Worldwide) - E016941
IntelliTouch (Worldwide) - E433640
IntelliTouch (Worldwide) - E289242
IntelliTouch (Worldwide) - E380869
IntelliTouch (Worldwide) - E661852
IntelliTouch (Worldwide) - E937444
IntelliTouch (Worldwide) - E040092
IntelliTouch (Worldwide) - E175924
IntelliTouch (Worldwide) - E023920
Surface capacitive (Worldwide) - E237725
Surface capacitive (Worldwide) - E280918
Surface capacitive (Worldwide) - E551369
Surface capacitive (Worldwide) - E448529
Surface capacitive (Worldwide) - E839032
Surface capacitive (Worldwide) - E581284
Surface capacitive (Worldwide) - E072568
Surface capacitive (Worldwide) - E867462
Surface capacitive (Worldwide) - E301869
Surface capacitive (Worldwide) - E980630
Surface capacitive (Worldwide) - E594680
Surface capacitive (Worldwide) - E267225
Surface capacitive (Worldwide) - E138095
外壳颜色
Dark Gray or Beige
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触
Surface Capacitive (SCAP) - Single Touch
CarrollTouch Infrared Technology对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
11.98" x 8.98" / 304mm x 228mm
分辨率
1024 x 768
其他支持的分辨率
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
色彩
16.2 million with dithering (8 bit)
亮度 (标准)
LCD panel: 350 nits
AccuTouch: 280 nits
APR: 322 nits
CarrollTouch: 322 nits
IntelliTouch: 322 nits
Surface capacitive: 298 nits响应时间 - 总计 (标准)
12 msec
对比度
400:1
屏幕显示 (OSD)
OSD lockouts for power and user controls
用户控件
OSD control menu: menu, up, down, select, power
OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, OSD language (English, French, German, Spanish, Japanese), input select
OSD disable/enable: power, OSD menu扬声器
Two watt/channel speakers located in display head
视频输入格式
RGB analog; DVI-D
视频输入信号接口
Mini D-Sub 15-Pin VGA type; DVI-D connector
功耗 (标准)
Monitor: 20 W typical, 25 W max.
VFD customer display: 3 W typical, 6 W max.
USB fingerprint reader: 0.5 W typical, 1 W max.
USB magnetic stripe reader: 0.5 W typical, 1 W max.
2 USB external ports power when loaded: 5 W typical, 7 W max.
Total with all possible accessories: 39 W typical, 50 W max.电源
AC/DC input internal power supply, with jack to accept power from optional external brick;
Power: 50 W max.; only AC power cable supplied; 12V power supply optional输入电压
AC: 90-265 VAC, 50/60 Hz.; DC: 12.0V ± 0.75V
显示器尺寸 (含底座)
13.99" x 11.27" x 10.44" / 355mm x 286mm x 265mm; Dimensions vary with stand type and position; see drawing for tall stand dimensions
重量 (含底座)
14.44 lbs / 6.55 kg
运输重量 (含底座)
21.16 lbs / 9.60 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20-80%
Storage: 5-95%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
安装选项
75 mm VESA mount
Removable base其他功能
Energy save mode (less than 2 watts)v
2 stage DPMSv
VESA DDC Plug and Play
Security lock receptacle质保
3年
背光灯寿命
Min 40,000 hours to half brightness
机构认证
UL, cUL (*recognized component), FCC-A, TÜV-GS, CE, VCCI, C-Tick
AC电源线
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n - E042259
Europe: Elo p/n - E690013
United Kingdom: Elo p/n - E235317可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E785134, is available at additional cost.
可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost.
触控/视频线:
All appropriate cables are included and are detachable.
支架，支架和套件
Short Desktop stand (Dark gray) - Elo p/n: E252977
Tall Desktop stand (Dark gray) - Elo p/n: E930466
Short Desktop stand (Beige) - Elo p/n: E819036
Tall Desktop stand (Beige) - Elo p/n: E024520
1529L VESA Plate – Elo p/n: E295293
