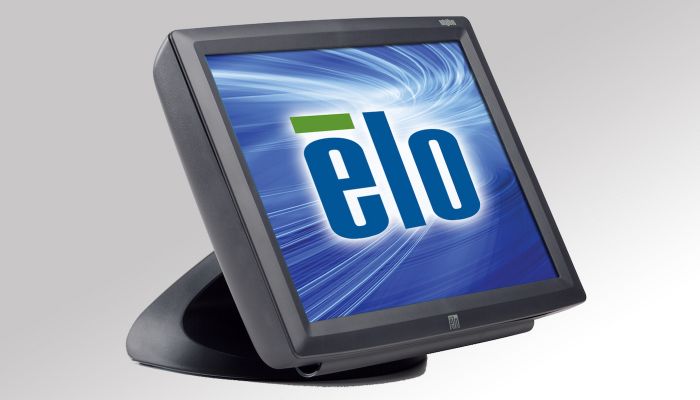

1529L 15" Touchcomputer (Discontinued November 2006)
Overview
The 1529L touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions. The silent, fanless 1529L integrates an all-in-one touchcomputer within the footprint of a 15" LCD monitor. The retail-rugged 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short stable tilt base that is removable or reversible for wall mounting, and a choice of Elo touch technology as well as color. The Microsoft Windows 2000 and XP Professional versions of the 1529L touchcomputer include a hard drive; the Windows CE .NET and Windows XP Embedded versions have solid-state components with no moving parts. Options include a magnetic stripe reader (MSR) and rear-facing customer display. The 1529L offers a wide range of connectivity, including USB and legacy serial ports. Applications for the new all-in-one touchcomputer include loyalty systems, kiosk information systems, POS, casino management, cash systems, and Internet access points such as those for Web surfing and hotel reservations. The 1529L is also available without the integrated computer.
Features
- Space saving, integrated, all-in-one touchcomputer with the footprint of a standard 15" LCD display
- Silent, fanless design
- Available as a solid-state embedded system or with an integrated hard drive
- Choice of Microsoft Windows XP Professional, Microsoft Windows XP Embedded, Microsoft Windows 2000 (not available in Europe), or Microsoft Windows CE .Net operating systems
- Functions as desktop or wall-mountable system
- Optional integrated MSR and/or rear-facing customer display
- Available with AccuTouch Five-Wire Resistive, CarrollTouch Infrared or IntelliTouch Surface-Wave touch technology
- "Designed for touch" from the ground-up; stable tilt base; cables hidden from user's view; controls on the side rather than the front, plus lockout function for public use
- Base removable, plus VESA mounting option
- Connectivity includes two serial, four USB 1.1, Ethernet, PCMCIA, PS/2 mouse, and keyboard ports
- Built-in speakers located in display head
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Antiglare, Worldwide) - D99994-000
AccuTouch (Antiglare, Worldwide) - F22545-000
AccuTouch (Antiglare, Worldwide) - E500771
IntelliTouch (Antiglare, Worldwide) - E91643-000
IntelliTouch (Antiglare, Worldwide) - E82317-000
IntelliTouch (Antiglare, Worldwide) - C32066-000
IntelliTouch (Antiglare, Worldwide) - E82983-000
IntelliTouch (Antiglare, Worldwide) - F23779-000外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控处理器
Via Eden 1 GHz CPU or equivalent
内存 (RAM)
512 MB
存储
CE: 64 MB Compact Flash
XP/2000: 30 GB HDD (minimum)
XP Embedded: Optional 30 GB HDD (minimum) or 1 GB Compact Flash对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
控制按钮
Side: Power and user controls with lockout function for public use
长宽比
4:3
有效显示区域 (mm)
11.98" x 8.98" / 304.1 mm x 228 mm
分辨率
1024 x 768 at 60, 70 or 75 Hz
色彩
16.2 million with dithering (6 bit)
亮度 (标准)
LCD panel: 350 nits
AccuTouch: 287 nits
IntelliTouch: 322 nits响应时间 - 总计 (标准)
25 msec
对比度
400:1
可视角度
Horizontal: ±75° or 150° total / Vertical: 50°/75° or 125° total
I/O 端口
One PS/2 each
USB端口
Four external
串口
Two external
以太网端口
TCP/IP 10/100 Base-T RJ45 port
无线
Capable through PCMCIA
扬声器
Two-watt/channel speakers in display head
操作系统
Windows XP Professional 3
Windows XP Embedded 4
Windows 2000 (not available in Europe)
Windows CE .NET 4.2语言
Windows 7 - 35 语言组
电源
Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 V at 5.0 amps max.输入电压
100-240 VAC, 50-60 Hz
功耗 (标准)
30 W
带底座的最大尺寸
13.99" x 11.27" x 10.44" / 355 mm x 286 mm x 265 mm
重量 (不含包装)
17.38 lbs / 7.88 kg
重量 (含包装)
22.66 lbs / 10.26 kg
工作温度
0°C to 35°C
储存温度
-20°C to 60°C
湿度
Operating: 20%-80%
Storage: 5%-95%
noncondensing机构认证
UL/cUL (recognized component), FCC, TÜV-GS, CE, VCCI, C-Tick
MTBF
50,000小时演示
安装选项
75 mm VESA mount
Removable base质保
1年
密封性
Touchscreen sealed to bezel and LCD
电源线
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000
其他功能
Energy save mode (less than 2 watts)
Touchscreen sealed to bezel and LCD
Security lock receptacle升级选项
320GB 5400 rpm 硬盘驱动器 (HDD) - E274069
RE/SE系列 AC 电源线订购信息
北美 p/n: E042259
Optional Accessories/Peripherals
Rear-Facing Customer Display
Magnetic Stripe Reader
Tall Stand: Elo P/N: E930466. Available at additional cost.
VESA Plate: Elo P/N: E310429. Available at additional cost.支架，支架和套件
Tall Desktop stand (Dark gray) - Elo p/n: E930466
VESA Plate - Elo P/N: E310429
