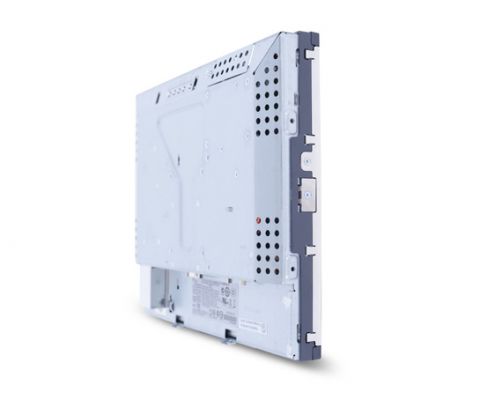

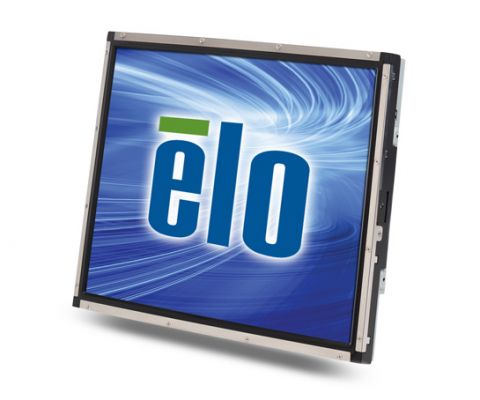

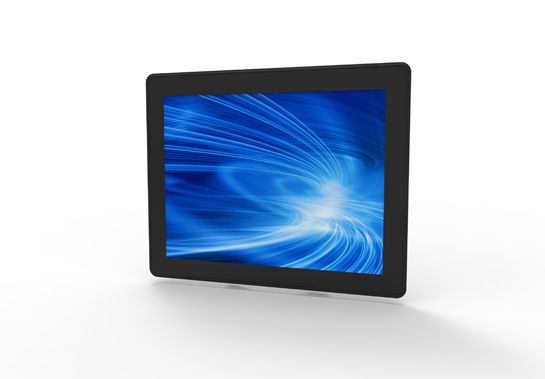

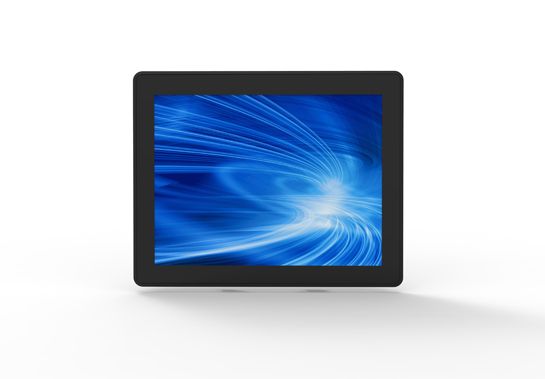

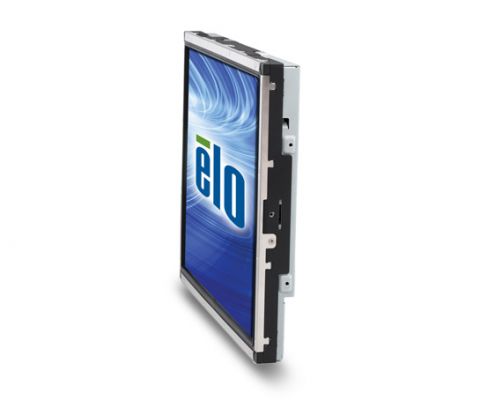

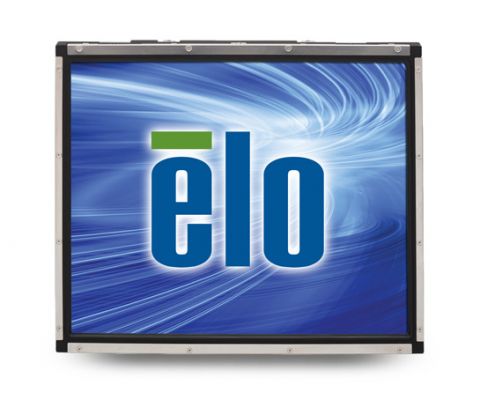

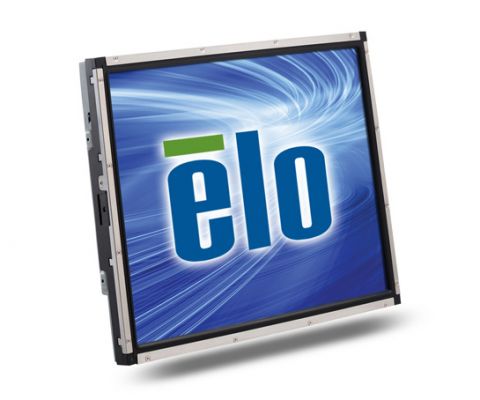

1537L 15" Open Frame Touchscreen (Discontinued September 2015)

规格

• 技术

  ---

  产品料号

  CarrollTouch (Antiglare, Worldwide) - E461378

  外壳颜色

  黑色

  触控技术

  CarrollTouch Infrared Technology

  触控界面

  Dual serial/USB

  对角线

  15 英寸对角线，有源矩阵 TFT LCD (LED)

  屏幕显示 (OSD)

  Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
  Controls (back): menu, up, down, select, power
  Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
  Languages: English, German, Spanish, Japanese, French
  Lockouts: power, user controls

  长宽比

  4:3

  有效显示区域 (mm)

  12.0" x 9.0" / 304 mm x 228 mm

  分辨率

  1024 x 768 at 60 Hz

  其他支持的分辨率

  1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
  832 x 624 at 75 Hz (Mac)
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  720 x 350 at 70 Hz
  640 x 480 at 60, 66 (Mac), 72 or 75 Hz
  512 x 256 at 60 Hz
  512 x 247 at 60 Hz

  可视角度

  水平: ±80° 或 160° 总计 / 垂直: ±70° 或 140° 总计

  色彩

  1620万

  亮度 (标准)

  LCD panel: 250 nits
  CarollTouch: 230 nits

  响应时间 - 总计 (标准)

  16 msec

  对比度

  700:1

  视频输入格式

  Analog VGA and digital DVI

  视频输入信号接口

  Female DE-15 connector
  Female DVI-D, Dual-Link connector

  电源

  External DC - Optional power brick (sold separately)

  Input voltage
  DC: +12VDC ±5%

  Input power connector specification (on Monitor)
  Type: DC Barrel Jack
  Barrel inner diameter: 6.4mm (+/- 0.3mm)
  Pin outer diameter: 2.0mm (+0.0 -0.1mm)
  Barrel depth: 8.8mm (+/- 0.3mm)

  Power connector (on Power brick)
  Type: DC Barrel Plug
  Barrel outer diameter: 5.5mm (+/- 0.1mm)
  Pin inner diameter: 2.1mm (+/-0.1mm)
  Barrel length: 9.5mm (+/- 0.5mm)

  电源输入接口 (显示器)

  Type: DC Barrel Jack
  Barrel inner diameter: 6.4mm (+/- 0.3mm)
  Pin outer diameter: 2.0mm (+0.0 -0.1mm)
  Barrel depth: 8.8mm (+/- 0.3mm)

  电源连接器 (适配器)

  Type: DC Barrel Plug
  Barrel outer diameter: 5.5mm (+/- 0.1mm)
  Pin inner diameter: 2.1mm (+/-0.1mm)
  Barrel length: 9.5mm (+/- 0.5mm)

  输入电压

  +12VDC ±5%

  输入接口

  DC Barrel Jack

  输入频率

  Horizontal: 31.5-60.2 kHz
  Vertical: 56.3-75 Hz

  功耗 (标准)

  Monitor only: 20W
  Monitor and power brick: 22W

  尺寸

  13.24" x 10.49" x 1.66" / 336.4 mm x 264.4 mm x 42.1 mm

  运输尺寸

  16.14" x 6.50" x 14.17" / 410 mm x 165 mm x 360 mm

  重量 (不含包装)

  6.6 lbs / 3.0 kg

  重量 (含包装)

  9.7 lbs / 4.4 kg

  工作温度

  0°C to 40°C / 32°F to 104°F

  储存温度

  -20°C to 60°C / -4°F to 140°F

  湿度

  Operating: 20%-80%
  Storage: 10%-90%

  密封性

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000小时演示

  质保

  3年

  机构认证

  UL, cUL, FCC, CE, VCCI, IC, C-TICK, CCC, BSMI, KC, China RoHS

  安装选项

  100 mm or 75 mm VESA mount
  Rear mount or with included standard mounting brackets
  Front mount with optional bezel (see Accessories tab for details)
  Rack mount with optional bracket (see Accessories tab for details)
  Flush mount with optional bezel kit (see Accessories tab for details)

  相关选项/可选外设

  北美电源适配器 - Elo P/N: E005277
  欧洲&韩国电源适配器 - Elo P/N: E571601
  英国电源适配器 - Elo P/N: E180092
  中国电源适配器 - Elo P/N: E558862
  台湾电源适配器 - Elo P/N: E818655
  日本电源适配器 - Elo P/N: E182546
  阿根廷电源适配器 - Elo P/N: E887099
  Elo 15-寸- 嵌入式安装支架 - Elo P/N: E139556
  Elo 15-寸 - L形支架 - Elo P/N: E203787
  Elo 15-寸 - 前边框 - Elo P/N: E323425
  Elo 15-寸 - 机架安装支架 - Elo P/N: E295006
  Elo OSD遥控 (包含1.8 m 线缆) - Elo P/N: E622897

  Brackets & Bezel Kits

  Front-Mount Bezel - Elo P/N: E323425
  Optional Mounting Brackets - Elo P/N: E295006
  Flush-Mount Bezel kit - Elo P/N: E139556

  VESA转接板

  Part number E155809, adapter plate kit available to alter the VESA mounting options on the 1537L family

  触控/视频线:

  Detachable touch and video cables are included.

  可选 IntelliTouch 手写笔

  D82064-000, available at additional cost.
