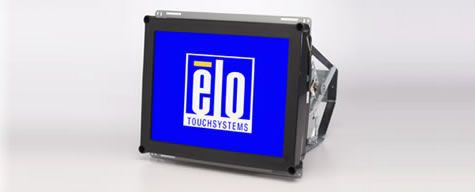

1587C 15" CRT Open Frame Touchmonitor (Discontinued November 2007)
Overview
Elo IntelliTouch® ZB touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch ZB touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
规格
-
技术
产品料号
IntelliTouch ZB ( Antireflective, Worldwide) - E493538
外壳颜色
黑色
触控技术
SAW ZB (IntelliTouch®表面声波) - 单点触控
对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
显示器厚度
14.8" / 375 mm
长宽比
4:3
有效显示区域 (mm)
Horizontal: 10.6" / 270 mm
Vertical: 8.0" / 202 mm分辨率
800 x 600 at 85 Hz
其他支持的分辨率
800 x 600 at 85 Hz
640 x 480 at 60 Hz色彩
1670万
Dot Pitch
0.28 mm
对比度
300:1
触控界面
Dual serial/USB
屏幕显示 (OSD)
Multilingual OSD
Video Bandwidth
65 MHz
视频输入格式
Analog (no proprietary video card needed)
功耗 (标准)
60 W typical, 65 W max.
电源
100-240 VAC, 50/60 Hz
输入频率
Dual serial/USB
显示器尺寸 (不含底座)
13.8" x 12.3" x 14.8" / 351.2 mm x 313 mm x 375 mm
重量 (不含包装)
25.8 lb / 11.7 kg
重量 (含包装)
31.3 lb / 14.2 kg
工作温度
5°C to 55°C
储存温度
-20°C to 65°C
湿度
Operating: 10% to 80%
Storage: 5% to 95%
noncondensingMTBF
50,000小时演示
其他功能
Built-in power, deflection, and video test
Video diagnostic pin
Diagnostic LED
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC, Plug and Play
Watertight minibezel to protect touch components
Square kiosk bezel质保
2年
机构认证
FCC/ICES-03: Class B, UL/cUL (Recognized component), TÜV Bauart, CE, VCCI, C-Tick, MPR II, DHHS, Demko
电源线
A special locking power cable is required. Power cables which may be suitable are available separately: North American version (part # 918850-000, drawing MS500325 Rev B); European version (part # D57513-000, drawing MS500324 Rev B).
触控/视频线:
Detachable touch and video cables are included
Optional Accessories/Peripherals
Replacement Board Set: E190987
Open-Frame Adaptor Bracket: C51251-000. For base-mounting solutions.
Square Kiosk Bezel: C57638-000. Shipped separately
All available at additional cost.
