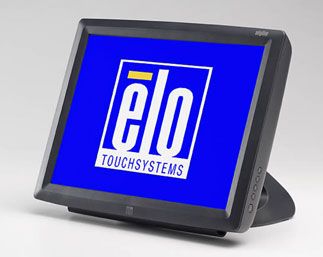

15A1 15" Touchcomputer (Discontinued December 2010)
Overview
The 15A1 15" LCD all-in-one touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions that can meet the requirements of any systems integrator, OEM or value-added reseller. Retail-rugged, the 15A1 features a spill-resistant sealing, a stable tilt stand that is removable or reversible for wall mounting, a VESA mounting option, cables hidden from user view, and side controls with lockout for public use. The 15A1 Rev B, is now available with a standard 1GB memory and 160GB hard drive; twice the size of the original introduction!
Touch options include a choice of AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave, CarrollTouch infrared or the innovative Acoustic Pulse Recognition (APR). Additional options include a three-track magnetic stripe reader (MSR) and rear-facing customer display. Operating system options support Microsoft® Windows® XP Professional Service Pack 2 and Microsoft Windows Embedded for Point of Service (WEPOS).
The silent, fanless design of the 15A1, and its compact integrated peripherals, make this touchcomputer an ideal choice for point-of-sale, point-of-service, loyalty systems, kiosk information systems, medical and light industrial, airport security, home control, and Internet access points.
Features
- Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 15" LCD display, Combining processing with touchscreen to fit virtually anywhere
- Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529L based on Passmark Benchmark
- Available with IntelliTouch surface wave, AccuTouch five-wire resistive, Acoustic Pulse Recognition, or CarrollTouch infrared touch technology - Choice of touch technology to fit a wide range of applications
- Touchscreen sealed from the factory - Resists dirt, dust & liquid intrusion
- "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting - Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options to complement store layout and customer traffic
- USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
- Dual video display capability - Allows attachment of a second touch screen display for digital signage, Scalar support for 800X600, 1024X768 and native 1280X1024 for running legacy applications
- Sensible line of point-of-service options - Optional peripherals include: three-track magnetic stripe reader (MSR) for credit, ID and loyalty card transactions; customer-facing display to verify those transactions
- Windows XP Professional or WEPOS operating system support - Increases software and peripheral choices offering versatility and compatibility
- On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
- Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
- Accessible hard drive - For upgrades or repairs
- Long product life-cycle - Peace of mind that Elo touchcomputers will be available throughout all phases of project rollouts and when future spares are needed
- Same sleek look and feel as our 1529 family of products - Minimum impact to existing installations
规格
-
技术
产品料号
AccuTouch (Antiglare) - E728363
AccuTouch (Antiglare) - E989952
AccuTouch (Antiglare) - E433131
AccuTouch (Antiglare) - E571287
AccuTouch (Antiglare) - E248796
IntelliTouch (Antiglare) - E509001
IntelliTouch (Antiglare) - E375209
IntelliTouch (Antiglare) - E381919外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控处理器
Intel Celeron M 1GHz CPU
BIOS
ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL
内存 (RAM)
Rev A: 512MB PC2-3200 SODIMM (400MHz) standard (expandable up to 1GB max 2)
Rev B: 1GB PC2-3200 SODIMM (400MHz) standard (expandable up to 2GB max 2)硬盘
Rev A: 1 x 2.5” 80GB SATA hard drive
Rev B: 1 x 2.5” 160GGB SATA hard drive芯片组
Intel 915GME/ICH6
对角线
15 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
Languages: English, French, Italian, German, Spanish
Lockouts: all controls长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304 mm x 228 mm
分辨率
1024 x 768 at 60 Hz
其他支持的分辨率
800 x 600
色彩
1620万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
14.5 msec
对比度
500:1
可视角度
Horizontal: ±70° or 140° total / Vertical: 60/55° or 115° total
I/O 端口
1 x VGA D-SUB / 1 x PS/2 universal (default to keyboard compatibility)
USB端口
4 x USB self powered 2.0
1 (of 4) port is 12V powered USB (1.5A) for POS peripherals串口
2 x RS-232 serial (RJ45, 8 position)
COM2 is RS-232, RS-422 and RS-485 selectable以太网端口
1 x LAN RJ45
钱箱端口
1 x cash drawer (RJ11, 6 position)
音频端口
1 x 3.5 mm audio-out
1 x 3.5 mm mic-in扬声器
Two-watt/channel speakers in display head
操作系统
Windows XP Professional Service Pack 2
Windows Embedded for Point of Service (WEPOS)语言
Windows XP – 24 Language groups; WEPOS - 5 language groups
电源
External DC (power brick)
输入电压
DC: 12 V at 10.0 amps max.
功耗 (标准)
Touchcomputer: 85 W max.
Serial VFD customer display: 5 W max.
USB magnetic stripe reader: 1 W max.
Total power drawn with all possible peripherals: 91 W max.带底座的最大尺寸
14.0" x 11.3" x 11.0" / 355 mm x 286 mm x 278 mm
运输尺寸
With device : 19.1” x 16.7” x 13.0” / 485mm x 425mm x 330mm
With MSR or Without device: 17.5” x 15.0” x 13.0” / 445mm x 380mm x 330mm重量 (不含包装)
17.2 lbs / 7.8 kg
重量 (含包装)
22.5 lbs / 10.2 kg
工作温度
0°C to 35°C / 32°F to 95°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 5%-95%机构认证
UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950
实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
75 mm VESA mount
Threaded holes on bottom of stand for secure mounting质保
3年
密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCD电源线
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317
其他功能
Accessible hard disk drive
Kensington security lock升级选项
320GB 5400 rpm 硬盘驱动器 (HDD) - E274069
RE/SE系列 AC 电源线订购信息
北美 p/n: E042259
英国 p/n: E235317可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
