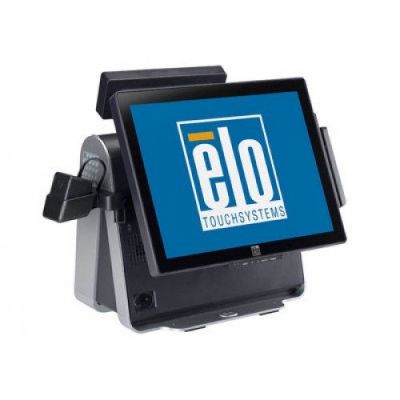

15D1 15" Touchcomputer (Discontinued April 2013)
Overview
The new D-Series Rev C 15" and 17" All-in-One Touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses as the previous versions. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the D-Series rev.C models are versatile and powerful. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing the Intel Celeron E1500 2.2GHz Dual-Core Processor, just as the previous D-Series models did.
New for the Rev C models are twice the memory and twice the hard disk drive (HDD) storage capacity - now with 2GB DDR3 RAM and a 320GB advanced format HDD. Also new is a DVI-D video output port which simplifies adding a secondary, customer-facing LCD display when used with the new rear-facing LCD bracket kit.
Features
- "Designed for touch" from the ground-up; stable base and tiltable display - Elo quality and reliability
- Available with True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Multiple touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements
- Touchscreen sealed from the factory - Minimize damage from accidental liquid spills
- Long-lasting product design - Elo touchcomputers have a history of being available - with an unchanged mechanical design - throughout all phases of project rollouts, and even when future spares are needed
- Bright high contrast LCD screens - Improved screen readability
- On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display controls
- Security lock receptacle - Provides fast, effective, and convenient security
- Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
- Worldwide agency approvals - Meets local agency approvals, as required in many countries
- Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
- Field-replaceable motherboard, power supply, display head, hard drive(s), and memory - Easy serviceability minimizes downtime
- Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
- 5 serial ports (2 are powered 5V default/adjustable to 12V), 7 USB 2.0 ports (1x24VDC USB printer power port), Ethernet 100/10 Base-T, cash drawer port (24V default/adjustable to 12V), new DVI-D secondary display output port, 2 PS/2, audio (1 line-in, 1 line-out, 1 mic-in) - Accessible POS/POI-focused input/output ports make installation of peripherals easy
- Clips on the back of the unit - Allow users to display customer-facing messages or advertising
- 3-year warranty - Customer satisfaction and peace of mind
规格
-
技术
产品料号
AccuTouch (None, USB, Antiglare, Worldwide) - E328019
AccuTouch (POSReady 2009, USB, Antiglare, Worldwide) - E409402
AccuTouch (WinXP Pro, USB, Antiglare, Worldwide) - E126702
AccuTouch (Win7 Pro, USB, Antiglare, Worldwide) - E772930
AccuTouch (WinXP Pro, USB, Antiglare, Japan) - E332597
IntelliTouch (None, USB, Antiglare, Worldwide) - E129811
IntelliTouch (POSReady 2009, USB, Antiglare, Worldwide) - E836223
IntelliTouch (WinXP Pro, USB, Antiglare, Worldwide) - E739901
IntelliTouch (Win7 Pro, USB, Antiglare, Worldwide) - E125031
IntelliTouch (WinXP Pro, USB, Antiglare, Japan) - E012981外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控处理器
Intel 2.2GHz Celeron Dual-Core E1500
512KB L2 Cache
800MHz System BusBIOS
AMI
内存 (RAM)
2GB Low-Profile 1333MHz DDR3 DIMM on 1 of 2 slots
硬盘
320GB 2.5" Advanced Format (AF) SATA HDD
Optional 2nd 320GB hard drive available芯片组
Intel G41 Express
对角线
15 英寸对角线,有源矩阵 TFT LCD (LED)
控制按钮
Controls (bottom): menu, up, down, select, power
Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: user controls长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304.0mm x 228.0mm
分辨率
1024 x 768 @ 60Hz
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
8 msec
对比度
700:1
可视角度
水平: ±70°或 140°总计 /垂直: 65°/60°或 125°总计
I/O 端口
2 x PS/2 (1 Keyboard and 1 Mouse)
USB端口
6 x USB2.0 Standard
1 x 24VDC USB 2.0 Printer Power Port (can be used as standard USB 2.0 port with standard type-A USB cable).串口
1 x RS-232 (standard)
2 x USB-to-Serial RS-232 (standard)
2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)以太网端口
1 x LAN RJ45 (Gigabit)
无线
Optional USB wireless kit available (802.11b/g/n)
钱箱端口
1 x cash drawer (12V/24V default; selectable via jumper)
Compatible with the following APG models:
MultiPRO 420 with CD-039A cable
MultiPRO 420 with CD-039A cable额外视频输出
DVI-D
音频端口
1 x 3.5mm line in
1 x 3.5mm line-out
1 x 3.5mm mic-in扬声器
Two 2W internal speakers
操作系统
无操作系统
Windows XP Professional Service Pack 3 (32-bit only)
Windows POSReady 2009
Windows 7 Professional (32-bit only)语言
Windows XP – 24 语言组; Windows 7 – 35 语言组
Windows POSReady 2009 – 32 Language groups电源
Internal PSU (270W)
AC input voltage: 100-240 VAC
Input frequency: 47-63 Hz输入电压
100-240 VAC
功耗 (标准)
15D1 Without Peripherals: 75W
15D1 With All Peripherals Connected: 165W带底座的最大尺寸
13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm
运输尺寸
17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm
重量 (含底座)
22.1 lbs / 10.0 kg
重量 (含包装)
26.8 lbs / 12.2 kg
工作温度
0°C to 35°C / 32°F to 95°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%
Storage: 5% to 95%机构认证
UL/cUL
FCC
Germany TUV
Europe CE
Europe CB
Argentina AR S-Mark
Russia GOST-R
Australia C-Tick
Japan VCCI
Taiwan BSMI
Korea KC
Mexico COC实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
Ability to secure base to tabletop or desktop; tiltable display/head unit
质保
3年
密封性
Touchscreen sealed to bezel (IntelliTouch)
Touchscreen sealed to sub-bezel (AccuTouch)
Touchscreen sealed to LCD (all)电源线
North American and European power cables included
其他功能
Serviceable internal components
Threaded holes on bottom of base for secure mounting
Kensington security lock升级选项
320GB 第二硬盘驱动器 (HDD) 套件
扩展选项
Optional USB wireless kit available (802.11b/g/n)
Second HDD kit
Memory kitsRE/SE系列 AC 电源线订购信息
北美 p/n: E042259
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
可选外设
7" LCD 顾客显示屏 – Elo P/N: E791658 (AccuTouch®)
Optional Accessories/Peripherals
Second 320GB Advanced Format (AF) Hard Disk Drive (HDD)
Second HDD/SSD Mounting Kit Only (no drive)
Rear-Facing LCD Mounting Bracket Kit
2GB Low-Profile DDR3 Memory DIMM Kit
4GB Low-Profile DDR3 Memory DIMM Kit
Single-line Barcode Reader
Omni-directional Barcode Reader
Magnetic Stripe Reader (MSR)
7" 0700L Rear-Facing Customer LCD (touch - E791658 or no touch - E807955)
Customer Display (2x20 VFD)
Biometric Fingerprint Reader (FPR)Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
Reads up to 3 tracks of information
Bidirectional swipe reading
Superior reading of high jitter, scratched, and worn MagStripe cards
- Reliable for over 1,000,000 card swipes
- Reads ISO7811, AAMVA, and most other card data formats
- PC software makes configuration changes easy
- Swipe speeds from 3 to 60 inches per second
- Interfaces: USB-IDTech-HID
- Fully supports USB 2.0
- Part Number: E145919
