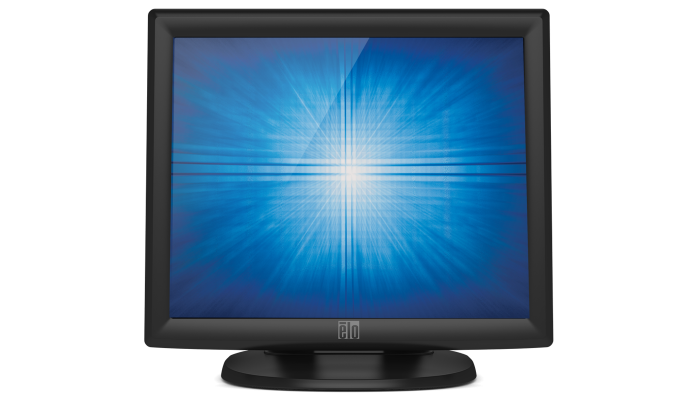

1715L 17" Touchscreen Monitor (Discontinued October 2012)

规格

• 技术

  ---

  产品料号

  APR (Antiglare) - E832132 (Americas, EMEA)
  AccuTouch (Antiglare) - E162119 (Asia/Pacific)
  APR (Antiglare) - E441167 (Asia/Pacific)
  IntelliTouch (Antiglare) - E783252 (Asia/Pacific)
  Projected Capacitive (Clear) - E230052 (Worldwide)

  外壳颜色

  深灰色

  触控技术

  五线电阻 (AccuTouch®) - 单点触控
  SAW (IntelliTouch®表面声波) - 单点触控
  PCAP (TouchPro® 投射式电容)-10点触控
  声学脉冲识别 - 单触

  对角线

  17 英寸对角线，有源矩阵 TFT LCD (LED)

  长宽比

  5:4

  有效显示区域 (mm)

  13.3" x 10.6" / 338mm x 270mm

  分辨率

  1280 x 1024

  其他支持的分辨率

  1280 x 1024 60, 75 Hz
  1280 x 960 60 Hz
  1152 x 864 75 Hz
  1024 x 768 60, 70, 75 Hz
  1024 x 768 65 Hz (Sun)
  832 x 624 75 Hz (Mac)
  800 x 600 56, 60, 72, 75 Hz
  720 x 400 70 Hz
  720 x 350 70 Hz
  640 x 480 60, 72, 75 Hz
  640 x 480 66 Hz (Mac)

  可视角度

  水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计

  色彩

  1670万

  亮度 (标准)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  APR: 225 nits
  IntelliTouch: 225 nits
  Projected Capacitive: 225 nits

  响应时间 - 总计 (标准)

  25 msec

  对比度

  800:1

  触控界面

  Dual serial/USB: E603162, E719160, E162119, E783252
  USB: E832132, E441167, E230052

  屏幕显示 (OSD)

  Controls (side): menu, up, down, select, power
  Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
  Languages: English, German, Spanish, Japanese, French
  Lockouts: power, user controls

  视频输入格式

  Analog VGA

  视频输入信号接口

  Mini D-Sub 15-Pin VGA type

  功耗 (标准)

  AC: 36W
  DC: Monitor only: 29W; Monitor + AC/DC Adapter: 36W

  电源

  Internal AC, Optional external DC (power brick)

  输入电压

  AC: 100-240 VAC, 50/60 Hz; DC: +12 VDC ±5%

  输入接口

  AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

  输入频率

  Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

  显示器尺寸 (含底座)

  15.4" x 8.0" x 14.4" / 391mm x 203mm x 366mm

  运输尺寸

  17.99" x 11.42" x 17.32" / 457mm x 290mm x 440mm

  重量 (不含包装)

  15.2 lb / 6.9 kg

  重量 (含包装)

  21.2 lb / 9.6 kg

  工作温度

  0°C to 40°C / 32°F to 104°F

  储存温度

  -20°C to 60°C / -4°F to 140°F

  湿度

  Operating: 20%-80%; Storage: 10%-90%; noncondensing

  密封性

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  MTBF

  50,000小时演示

  底座选项

  Tilt, removable

  安装选项

  100 mm VESA mount
  Threaded-through mounting holes, under stand

  其他功能

  Security lock receptacle

  质保

  3年

  机构认证

  Worldwide including Asia: UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick
  Asia: KC, CCC, BSMI, China RoHS

  AC电源线

  A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region. AC power cables for power brick are also available at additional cost:

  United States: Elo p/n - E042259
  Europe: Elo p/n - E690013
  United Kingdom: Elo p/n - E235317

  替换电缆套件

  Elo p/n: E378229 (Gray); Elo p/n: E410150 (Beige) , available at additional cost.

  可选电源适配器

  The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E785134, is available at additional cost.

  可选 IntelliTouch 手写笔

  D82064-000, available at additional cost.

  Optional Acoustic Pulse Recognition (APR) Stylus Pen

  E963860, available at additional cost.

  触控/视频线:

  Detachable touch and video cables are included.

  可选外设

  磁条阅读器 (深灰色 MSR) – Elo P/N: E963462

  可选底座

  Part number E191105, available at additional cost.
