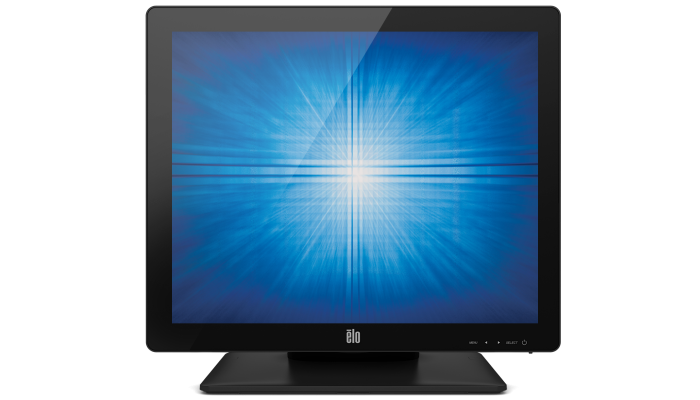

1717L 17" Touchscreen Monitor (Discontinued December 2018)
Overview
The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch.The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box. |
 |
 |

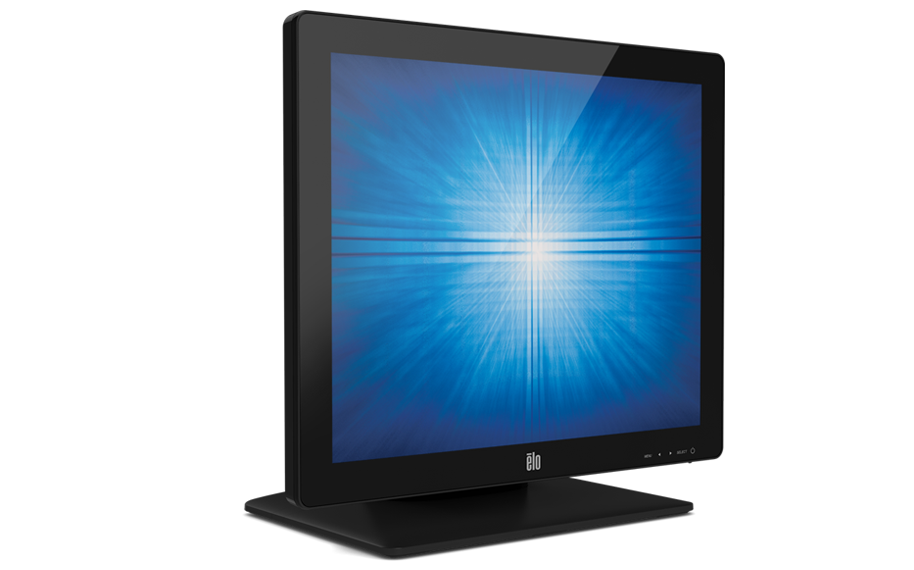

MSR ready.The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. |

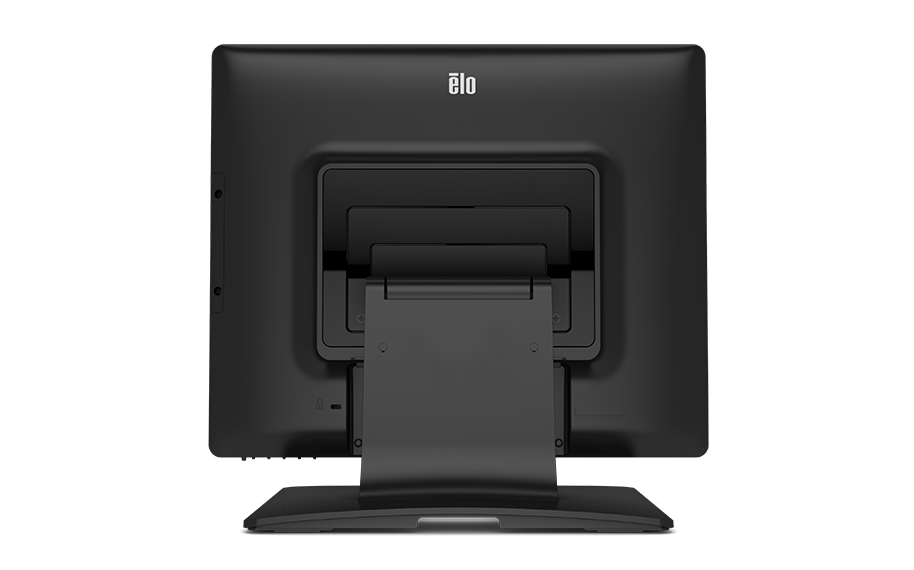

Flexible mounting.The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security. |
 |
Other features.
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 20W, internal and external power options
- Three-year standard warranty
规格
-
技术
产品料号
PCAP Black (Asia-Pacific & Japan) - E824217
外壳颜色
白色或黑色
触控技术
PCAP (投射式电容) - 10点触控
对角线
17 英寸对角线，有源矩阵 TFT LCD (LED)
显示器厚度
1.7" / 43mm panel depth
长宽比
5:4
有效显示区域 (mm)
13.3" x 10.64" / 337.92mm x 270.34mm
分辨率
1280 x 1024
其他支持的分辨率
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
1280 x 1024 @ 60Hz, 75Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
PCAP: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
Serial (RS232) and USB
屏幕显示 (OSD)
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power视频输入格式
Analog VGA on Female DB-15 connector
视频输入频率
Horizontal: 31.5-80 kHz
Vertical: 56-75 Hz功耗 (标准)
Monitor Only
ON: 16W
SLEEP: 3.0W
OFF: 0.5W输入电压
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
输入接口
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
适配器输入连接器
IEC 60320 C14
适配器输入连接器
100-240VAC, 50/60Hz
显示器尺寸 (含底座)
15.43" x 8.38" x 14.24" / 391.9mm x 215.4mm x 361.6mm
运输尺寸
20.12" x 9.17" x 20.08" / 511mm x 233mm x 510mm
重量 (不含包装)
11.9 lbs / 5.4 Kg
重量 (含包装)
18.3 lbs / 8.3 Kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%; Storage: 10% to 90%
密封性
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000小时演示
安装选项
75 mm VESA mount
Capped through-mount holes其他功能
Security lock receptacle
质保
3年
延保选项
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125机构认证
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
包装内含
QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand base assembly, Filler Plate
可替换DC电源
The monitor may be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E005277, is available at additional cost.
AC电源线
North American & EU power cables included. UK AC power cables included with P/Ns available for EMEA.
China: E030476
Japan: E849156 (3-pin to 2-pin adapter: E351985
UK: E235317
Taiwan: E637694可选的PCAP手写笔
E066148
触控/视频线:
Detachable touch and video cables are included.
可选外设
磁条阅读器 (黑色 MSR) – Elo P/N: E500356
支架，支架和套件
1717L VESA 安装板 (Black) - Elo p/n: E000405
后置显示器安装底座（0700L专用） - Elo p/n: E332358
1717L 替换底座 (白色) - Elo p/n: E061177
1717L 替换底座 (黑色) - Elo p/n: E904304
配置
