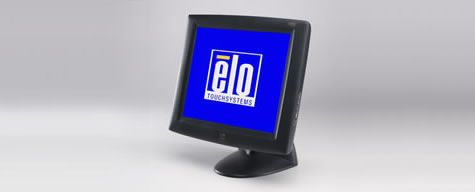

1725L 17" Touchscreen Monitor (Discontinued May 2003)

规格

• 技术

  ---

  产品料号

  AccuTouch (Antiglare, Worldwide) - 954174-000
  AccuTouch (Antiglare, Worldwide) - 069914-000
  IntelliTouch (Antiglare, Worldwide) - D00405-000
  IntelliTouch (Antiglare, Worldwide) - 442072-000

  外壳颜色

  深灰色

  触控技术

  五线电阻 (AccuTouch®) - 单点触控
  SAW (IntelliTouch®表面声波) - 单点触控

  对角线

  17 英寸对角线，有源矩阵 TFT LCD (LED)

  长宽比

  4:3

  有效显示区域 (mm)

  13.3" x 10.6" / 338mm x 270mm

  分辨率

  1280 x 1024 at 75 Hz

  其他支持的分辨率

  1024 x 768 at 60, 70, or 75 Hz
  832 x 624 at 75 Hz (Mac)
  800 x 600 at 56, 60, 72, or 75 Hz
  720 x 400 at 70 Hz
  640 x 480 at 60, 72, or 75 Hz
  640 x 480 at 66 Hz (Mac)

  可视角度

  Horizontal: ±80° or 160° total / Vertical: 55°/80° or 135° total

  色彩

  16.7 million (24 bit)

  亮度 (标准)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  IntelliTouch: 230 nits

  对比度

  400:1

  Video Bandwidth

  135 Mhz

  视频输入格式

  Analog (no proprietary video card needed) or Digital Video Input (DVI-D)

  视频输入信号接口

  Mini D-Sub 15-Pin or Digital 24-pin Input

  触控界面

  Serial: 954174-000, D00405-000; USB: 069914-000, 442072-000

  电源

  External power supply, 100-240 VAC, 50-60 Hz (Monitor input power, 19V @ 2.65A)

  输入频率

  Horizontal: 31.5-80 kHz / Vertical: 56-75 Hz

  功耗 (标准)

  50 W max.

  扬声器

  2 watt/channel speakers located in display head

  屏幕显示 (OSD)

  Languages: English, German, Spanish, Japanese, French
  OSD lockouts for power and user controls
  OSD extras include volume, treble, bass, balance

  显示器尺寸 (含底座)

  17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm

  重量 (不含包装)

  21.6 lbs / 9.82 kg

  重量 (含包装)

  30.6 lbs / 13.9 kg

  工作温度

  0°C to 40°C

  储存温度

  -20°C to 60°C

  湿度

  Operating: 20%-80%; Storage: 10%-90%; noncondensing

  密封性

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  安装选项

  100 mm or 75 mm M4 VESA mount
  100 mm M5 threaded holes on base bottom for table top security
  Removable base
  Reversible stand for wall mounting
  Stand rotates from -5° (from vertical) to 90° (horizontal)

  背光灯寿命

  25,000 hours to half brightness

  质保

  3年

  机构认证

  UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick

  电源线

  A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
  Elo p/n: 276875-000.
