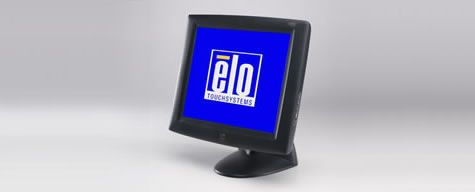

1725L 17" Touchscreen Monitor (Discontinued November 2006)
Overview
The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal. The optional, integrated three-stripe, ergonomically-placed magnetic stripe reader (MSR) is incorporated into the monitor housing and is positioned ergonomically on the top, right corner so that the user can swipe the card flat with a natural action. The MSR also reads the third data stripe, normally reserved for applications such as customer loyalty programs. The USB version has an internal USB hub so that a single USB connection/cable carries both the touch interface signal and the MSR data. Available with a choice of touch technologies, the 1725L is targeted toward applications that require the use of credit/debit cards, loyalty cards, and other card transactions.
Other features.
- High quality panel with 140°x127° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology
- Dual serial/USB interface for non-MSR version
- Ergonomic 3 stripe MSR available in three versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1; and serial, which supports OPOS. OPOS is only supported in serial version.
- Magnetic Stripe Reader cable is internal for USB versions and external for serial versions
- Unique USB hub inside the monitor allows a single USB cable to carry both the touch signal and MSR data. The serial version has two cables/external connectors to carry the touch and MSR data.
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Antiglare, Worldwide) - 069914-001
AccuTouch (Antiglare, Worldwide) - E76025-001
AccuTouch (Antiglare, Worldwide) - E87300-001
AccuTouch (Antiglare, Worldwide) - E43463-001
IntelliTouch (Antiglare, Worldwide) - D14995-001
IntelliTouch (Antiglare, Worldwide) - F37082-001
IntelliTouch (Antiglare, Worldwide) - D66140-001
Surface Capacitive (Antiglare, Worldwide) - F80972-000外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
Surface Capacitive (SCAP) - Single Touch对角线
17 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
5:4
有效显示区域 (mm)
13.3" x 10.6" / 338mm x 270mm
分辨率
1280 x 1024
其他支持的分辨率
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz可视角度
Horizontal: ±70° or 140° total / Vertical:67/63° or 130° total
色彩
16.2 million with dithering (6 bit)
亮度 (标准)
LCD panel: 260 nits
AccuTouch: 213 nits
IntelliTouch: 239 nits
surface capacitive: 218 nits响应时间 - 总计 (标准)
25 msec
对比度
450:1
视频输入格式
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
视频输入信号接口
Mini D-Sub 15-Pin; DVI-D
触控界面
Dual serial/USB: F80972-000, 069914-001
Serial: E76025-001, D14995-001
USB: E87300-001, E43463-001, F37082-001, D66140-001电源
External power supply, 100-240 VAC, 50-60 Hz
输入电压
11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.
输入频率
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
功耗 (标准)
50 W max.
扬声器
Two watt/channel speakers located in display head
屏幕显示 (OSD)
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balance用户控件
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, input select (analog or digital)
Llanguages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menu重量 (不含包装)
22.2 lbs / 10.0 kg
重量 (含包装)
30.8 lbs / 14.0 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20%-80%; Storage: 10%-90%; noncondensing
密封性
Touchscreen sealed to bezel; Touchscreen sealed to LCD
安装选项
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Optional stability plate背光灯寿命
Typical 40,000 hours to half brightness
质保
3年
机构认证
UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II
电源线
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: 276875-000.可选电源适配器
Elo p/n: E785134. Available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
