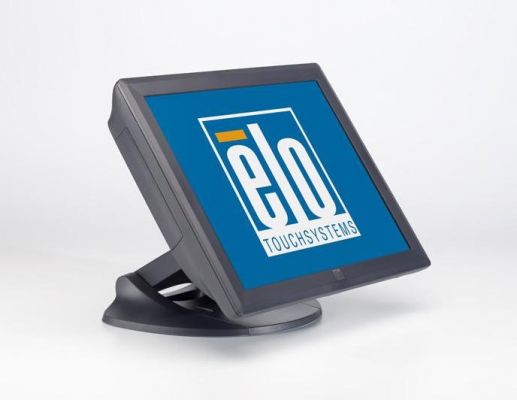

1729L Touchscreen Monitor (Discontinued October 2012)
Overview
The Elo 1729L 17" LCD integrated multifunction touchmonitor is an attractive solution for a variety of applications. Its optional peripherals can easily be integrated into the 1729L's compact design. A choice of up to three of the optional peripherals can be installed including: the magnetic stripe reader, vacuum fluorescent, rear-facing LED customer display, biometric fingerprint recognition device, and speaker bar with or without a built in single or omni-directional barcode scanner. Its 1280 x 1024 resolution with a 5:4 ratio displays clear, precise graphics, and a contrast ratio of 800:1, together with a typical LCD panel brightness of 300 nits, provides bright, high contrast for improved readability.
Other features.
- Seamless, integrated design
- Available with AccuTouch® Five-Wire Resistive Technology, Acoustic Pulse Recognition (APR) Technology, CarrollTouch Infrared Technology, IntelliTouch® Surface-Wave Technology and Surface Capacitive Technology
- Choice of desktop, wall or VESA mount
- "Designed for touch" with stable tilt stand, adjustable and removable for VESA mounting; also mounting holes in stand for secure desktop use
- Professional cable management hides cables from view
- Touchscreen sealed to resist dirt, dust, and splashes
- Controls on the side plus lockout function for public use
- An internal USB hub for minimal external connections
- Multi-lingual on-screen display (OSD)
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID)
- Security lock receptacle
- Long-lasting product cycle – enclosure controlled by Elo specifications
- Choice of gray or beige finish
- Worldwide agency approvals
- Three year warranty
规格
-
技术
产品料号
CarrollTouch (Americas, Asia/Pacific) - E523806
Acoustic Pulse Recognition (EMEA) - E266435
Acoustic Pulse Recognition (Americas, Asia/Pacific) - E645806
Acoustic Pulse Recognition (Americas, Asia/Pacific) - E463022外壳颜色
Dark Gray or Beige
触控技术
声学脉冲识别 - 单触
CarrollTouch Infrared Technology对角线
17 英寸对角线,有源矩阵 TFT LCD (LED)
长宽比
5:4
有效显示区域 (mm)
13.3" x 10.6" / 338 mm x 270 mm
分辨率
1280 x 1020
其他支持的分辨率
1280 x 1024 at 60,75Hz
1280 x 960 at 60Hz
1024 x 768 at 60,65,70, 75 Hz
1152 x 864 at 75 Hz
720 x 400 at 70 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, 75Hz
640 x 350 at 70Hz
640 x 480 at 60, 72, 75Hz
640 x 480 at 66 Hz可视角度
水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
CarrollTouch: 225 nits
Acoustic Pulse Recognition: 270 nits响应时间 - 总计 (标准)
7.2 msec
对比度
1000:1
触控界面
USB
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, V-position, H-position, recall default, color temperature, volume, sharpness, phase, clock, OSD position, auto adjust, information, OSD timeout, input video select
Languages: English, French, German, Spanish, Japanese
Lockouts: power, user controls扬声器
Two watt/channel speakers located in display head
视频输入格式
Analog VGA, DVI video (EMEA CarrollTouch models without DVI)
视频输入信号接口
Mini D-Sub 15-Pin VGA type, DVI-D connector
功耗 (标准)
Monitor: 50 W
VFD customer display: 7.0 W
USB fingerprint reader: 0.95 W
USB magnetic stripe reader: 0.15 W
USB hub loaded: 7.0 W
Speaker bar with single line barcode scanner: 10.75 W
Speaker bar with omni-directional barcode scanner: 11.53 W
Speaker bar: 10.0 W电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 100-240V, 50/60 Hz; DC: 12V ± 0.75V
输入接口
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 56.7-81.1 kHz / Vertical: 55-76 Hz
显示器尺寸 (含底座)
15.4" x 15.0" x 9.4" / 391mm x 381mm x 239mm
运输尺寸
Touch only or touch with MSR: 20.09" x 10.04" x 17.91" / 510 mm x 255 mm x 455 mm
Touch with two+ peripherals: 21.65" x 10.04" x 20.47" / 550 mm x 255 mm x 520 mm重量 (不含包装)
19.3 lbs / 8.8 kg
重量 (含包装)
24.7 lbs / 11.2 kg
工作温度
0°C to 50°C / 32°F to 122°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20-80%
Storage: 5-95%
noncondesing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, removeable, adjust height
安装选项
100mm VESA mount
其他功能
Field upgradeable peripherals
VESA DPMS
VESA DDC Plug and Play
Security lock receptacle质保
3年
机构认证
UL, cUL, FCC-B, TÜV-T, CE, VCCI, C-Tick, MPRII, S-Mark
AC电源线
All appropriate cables are included and are detachable. EMEA model include EU and UK power cables.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
可选外设
北美适配器 - Elo P/N: E005277
欧洲与韩国适配器 - Elo P/N: E571601
英国适配器 - Elo P/N: E180092
中国适配器 - Elo P/N: E558862
台湾电源适配器 - Elo P/N: E818655
日本电源适配器 - Elo P/N: E182546
阿根廷电源适配器 - Elo P/N: E887099Optional Accessories/Peripherals
Customer Display (2x20 VFD) (Dark Gray) - Elo p/n: E626003
Customer Display (2x20 VFD) (Beige) - Elo p/n: E351000
Magnetic Stripe Reader (Dark Gray) - Elo p/n: E246532
Magnetic Stripe Reader (Beige) - Elo p/n: E701607
Fingerprint Reader (Dark Gray) - Elo p/n: E477341
Fingerprint Reader (Beige) - Elo p/n: E417406
Speaker Bar (Dark Gray) No barcode scanner - Elo p/n: E182214
Speaker Bar (Beige) No barcode scanner - Elo p/n: E221190
Speaker Bar (Dark Gray) Single line barcode scanner) - Elo p/n: E382588
Speaker Bar (Beige) Single line barcode scanner) - Elo p/n: E185318
Speaker Bar (Dark Gray) Omni-directional barcode scanner) - Elo p/n: E798729
Speaker Bar (Beige) Omni-directional barcode scanner) - Elo p/n: E391239可选底座
Dark gray: Elo p/n: E408061; Beige: Elo p/n: E239639; available at additional cost.
