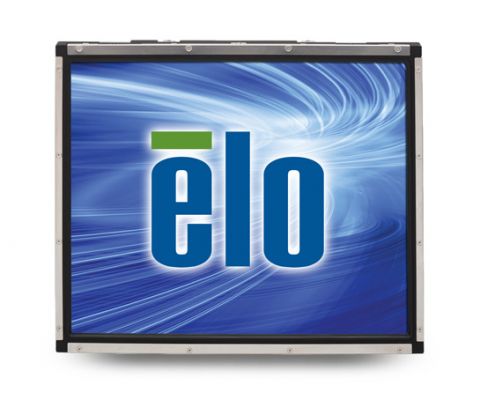

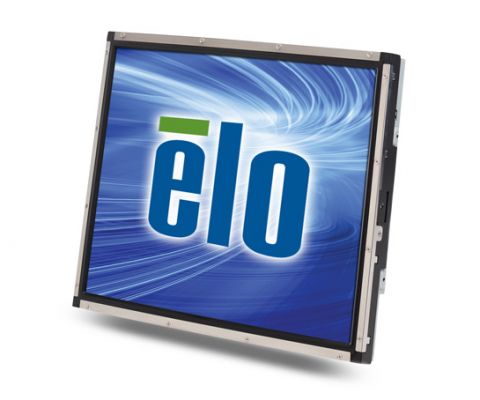

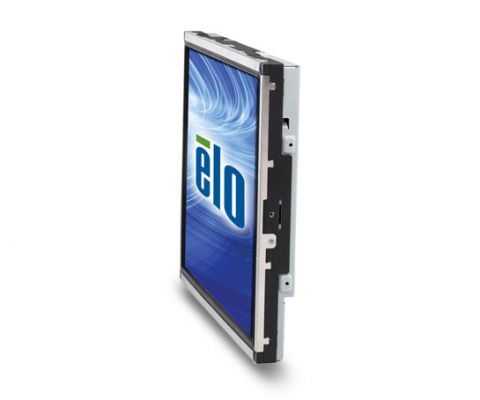

1739L 17" Open Frame Touchscreen (Discontinued September 2015)
Overview
Elo Open Frames Touchscreens have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1739L features a wide viewing angle panel along with a unique, injection-molded mini-bezel and virtually invisible water-resistant seal.

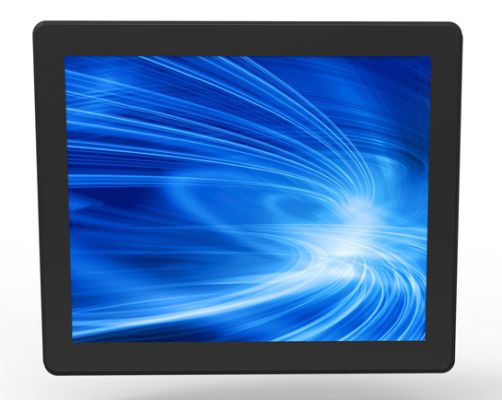

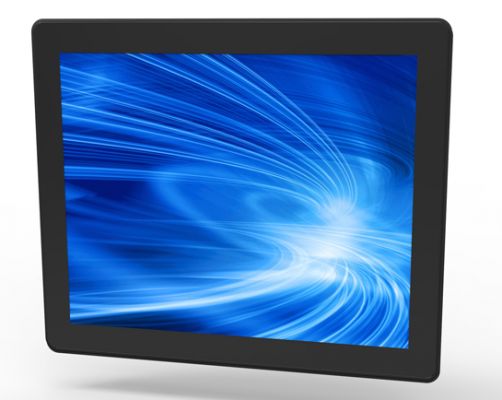

The 1739L is available with a choice of touch technology, with single touch and multi touch options and in standard bezel and seamless, zero-bezel touchscreen design.
Other Features
- High quality energy-saving LED panel
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision mini-bezel with water-resistant 0.5 mm seal

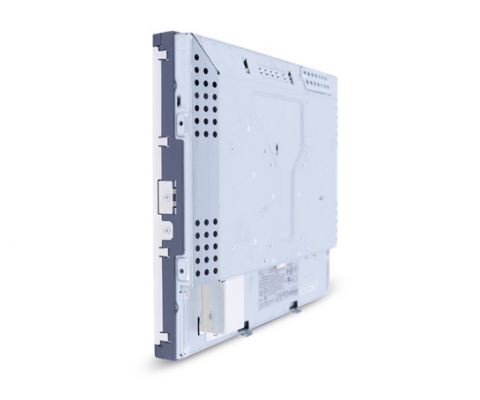

- Mounting options including rear-mount (two standard rear-mount brackets included) and VESA mount; optional front mount (see Accessories tab for details) and rack mount (see Accessories tab for details)
- Multilingual on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
规格
-
技术
产品料号
CarrollTouch (Antiglare, Worldwide) - E964551
外壳颜色
黑色
触控技术
CarrollTouch Infrared Technology
触控界面
Dual serial/USB
对角线
17 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls长宽比
5:4
有效显示区域 (mm)
13.3" x 10.6" / 338 mm x 270 mm
分辨率
1280 x 1024
其他支持的分辨率
1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
CarrollTouch: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
视频输入格式
Analog VGA and digital DVI
视频输入信号接口
Female DE-15 connector, Female DVI-D, Dual-Link connector
电源
External DC - Optional power brick (sold separately)
电源输入接口 (显示器)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)电源连接器 (适配器)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)输入电压
DC: +12VDC ±5%
输入频率
Horizontal: 31.5-80.0 kHz
Vertical: 56.3-75 Hz功耗 (标准)
Monitor only: 20 W
Monitor and power brick: 22 W尺寸
Bezel: 14.5" x 12.0" x 1.9" / 368 mm x 306 mm x 49 mm
Zero-bezel: 15.6" x 13" x 1.8" / 397mm x 332mm x 46.4mm运输尺寸
Bezel: 18.11" x 16.10" x 6.89" / 460 mm x 410 mm x 175 mm
Zero-bezel: 18.1” x 15.7” x 6.1” / 460 mm x 400 mm x 155 mm重量 (不含包装)
8.8 lbs / 4.0 kg
重量 (含包装)
11.5 lbs / 5.2 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
质保
3年
机构认证
North America/Worldwide: UL/cUL (Recognized), TÜV T-Mark, Argentina S-Mark, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), BSMI Mark, MIC, CCC, China RoHS
安装选项
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)相关选项/可选外设
北美电源适配器 - Elo P/N: E005277
欧洲&韩国电源适配器 - Elo P/N: E571601
英国电源适配器 - Elo P/N: E180092
中国电源适配器 - Elo P/N: E558862
台湾电源适配器 - Elo P/N: E818655
日本电源适配器 - Elo P/N: E182546
阿根廷电源适配器 - Elo P/N: E887099
IntelliTouch 手写笔 - Elo P/N: D82064-000
Elo 17-寸 & 19-inch L形支架- Elo P/N: E147211
Elo 17-寸 - 前边框 - Elo P/N: E860319
Elo 17-寸 - 机架安装支架 - Elo P/N: E939253
Elo OSD遥控 (包含1.8 m 线缆) - Elo P/N: E622897触控/视频线:
Detachable touch and video cables are included
可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
