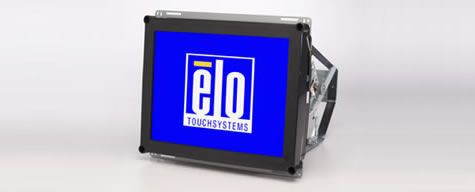

1787C 17" CRT Open Frame Touchmonitor (Discontinued April 2007)
Overview
Elo IntelliTouch® ZB touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch ZB touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
规格
-
技术
产品料号
IntelliTouch ZB (Antireflective, Worldwide) - 375460-000
IntelliTouch ZB (Antireflective, Worldwide) - A24302-000外壳颜色
黑色
触控技术
SAW ZB (IntelliTouch®表面声波) - 单点触控
触控界面
Serial: 375460-000 /nUSB: A24302-000
对角线
17 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Multilingual OSD
长宽比
4:3
有效显示区域 (mm)
Horizontal: 11.8" / 300 mm
Vertical: 8.9" / 225 mm分辨率
1024 x 768 at 85 Hz
其他支持的分辨率
1024 x 768 at 85 Hz (VESA)
800 x 600 at 85 Hz (VESA)
640 x 480 at 60 Hz (VGA)色彩
1670万
对比度
300:1
视频输入格式
Analog
视频输入信号接口
Mini D-Sub 15-Pin (female)
电源
100-240 VAC, 50-60 Hz
输入频率
Horizontal: 30-70 kHz
Vertical: 50-160 Hz功耗 (标准)
65 W typical, 75 W max.
尺寸
15.6" x 13.5" x 15.9" / 397.2 mm x 342.6 mm x 405 mm
重量 (不含包装)
27.8 lb / 12.6 kg
重量 (含包装)
34.4 lb / 15.6 kg
工作温度
5°C to 55°C
储存温度
-20°C to 60°C
湿度
Operating: 10% to 80%
noncondensingMTBF
50,000小时演示
质保
联系Elo
机构认证
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CE, VCCI, C-Tick, MPR II, DHHS, Demko
电源线
A special locking power cable is required. Power cables which may be suitable are available separately: North American version (drawing MS500325 Rev B); European version (drawing MS500324 Rev B).
Brackets & Bezel Kits
Open-Frame Adaptor Bracket: A44380-000. For base-mounting solutions. Available at additional cost.
Replacement Board Set: 408678-000. Available at additional cost.
Square Kiosk Bezel: A71324-000. Shipped separately. Available at additional cost.触控/视频线:
Detachable touch and video cables are included
