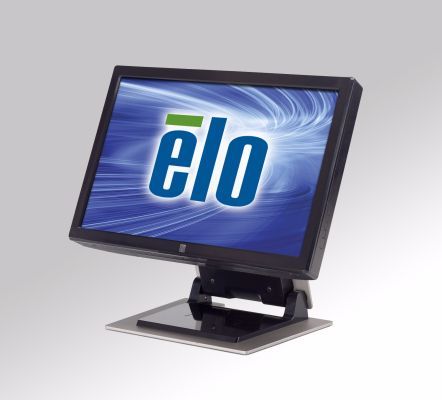

1900L 19-inch Desktop Touchmonitor (Discontinued November 2015)
Overview
Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.
The 1900L is available with IntelliTouch® surface acoustic wave touch technology, a pure-glass touchscreen that provides superior optical performance.
Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
规格
-
技术
产品料号
E619279
E500662外壳颜色
黑色
触控技术
五线电阻 (AccuTouch®) - 单点触控
对角线
19 英寸对角线，有源矩阵 TFT LCD (LED)
显示器厚度
11.8" (300 mm)
长宽比
4:3
有效显示区域 (mm)
Horizontal: 16.1" (408 mm)
Vertical: 10.1" (255 mm)分辨率
1440 x 900 at 60 Hz
其他支持的分辨率
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 Hz可视角度
水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls音频输入接口
3.5mm TRS jack
耳机输出接口
3.5mm TRS jack
扬声器
Two 2W internal speakers
视频输入格式
Analog VGA, DVI video (Asia/Pacific models without DVI)
视频输入信号接口
Mini D-Sub 15-Pin VGA type, DVI-D connector
功耗 (标准)
70W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 100-240 VAC, 50/60 Hz
DC: 12 VDC ±5%适配器输入连接器
AC: IEC 60320 C6
DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)显示器尺寸 (含底座)
Width: 17.7" (449 mm)
Depth: 11.8" (300 mm)
Height: 15.0" (380 mm)运输尺寸
Width:19.75" (500 mm)
Depth: 23.63" (600 mm)
Height: 10.06" (255 mm)重量 (含底座)
19.9 lb (9.0 kg)
重量 (不含底座)
13.2 lb (6.0 kg)
运输重量 (含底座)
26.8 lb (12.2 kg)
工作温度
0°C to 40°C (32°F to 104°F)
储存温度
-20°C to 60°C (-4°F to 140°F)
湿度
Operating: 20%-80%
Storage: 10%-90%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, remove, adjust height, pivot (landscape/portrait mode)
安装选项
100 mm VESA mount
Threaded-through mounting holes, under stand其他功能
Security lock receptacle
质保
2年
