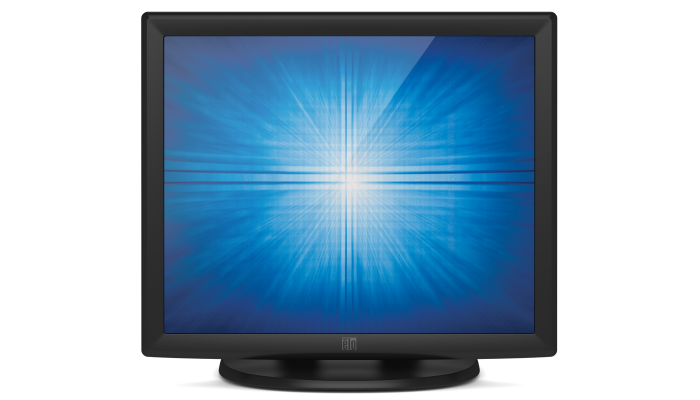

1915L 19" Touchscreen Monitor (Discontinued June 2013)
Overview
The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.
Other features.
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Available with IntelliTouch Surface Wave Technology, AccuTouch Five-Wire Resistive Technology or Acoustic Pulse Recognition Technology
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
规格
-
技术
产品料号
Acoustic Pulse Recognition (USB, Antiglare, Americas / EMEA) - E437227
外壳颜色
深灰色
触控技术
声学脉冲识别 - 单触
对角线
19 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
5:4
有效显示区域 (mm)
14.8" x 11.9" / 376.3mm x 301.1mm
分辨率
1280 x 1024
其他支持的分辨率
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 Hz可视角度
Horizontal: ±80° or 160° total / Vertical: 80°/75° or 155° total
色彩
1670万
亮度 (标准)
LCD panel: 300 nits
Acoustic Pulse Recognition: 270 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
USB
屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls视频输入格式
Analog VGA
视频输入信号接口
Mini D-Sub 15-Pin VGA type
功耗 (标准)
50 W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 85-265 VAC, 47–63 Hz; DC: 12.0 VDC ±0.75V
输入接口
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
显示器尺寸 (含底座)
16.9" x 14.9" x 8.2" / 429mm x 379mm x 207mm
运输尺寸
21.28" x 11.23" x 19.50" / 540mm x 285mm x 495mm
重量 (不含包装)
17.4 lbs / 7.9 kg
重量 (含包装)
25.8 lbs / 11.7 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, removable
安装选项
100 mm VESA mount
Threaded-through mounting holes, under stand其他功能
Security lock receptacle
质保
3年
机构认证
North America/Worldwide: UL, cUL, MPR II, CE, FCC, VCCI, C-Tick Class B
Asia: BSMI, CCC, MIC, China RoHSAC电源线
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
AC power cables for power brick are also available at additional cost:
United States - Elo p/n: E042259
Europe - Elo p/n: E690013
United Kingdom - Elo p/n: E235317可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E785134, is available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
可选底座
Stand (Beige) - Elo p/n: E668438
Stand (Dark Grey) - Elo p/n: E335194
