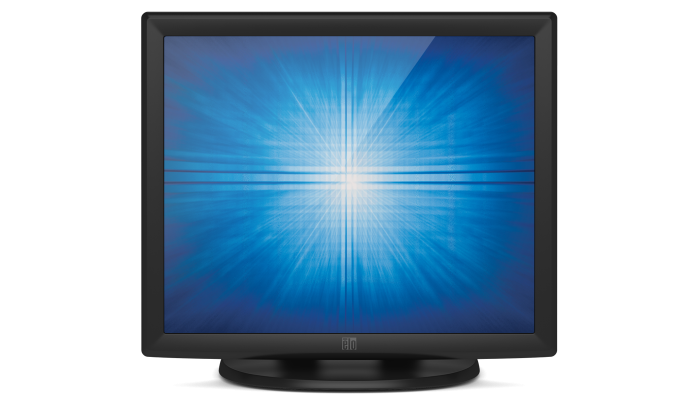

1915L 19" Touchscreen Monitor (Discontinued June 2015)
Overview
The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor. This compact touchmonitor is "designed for touch" from the ground up, with Elo expertise and reliability built in-not added by altering an existing monitor. The 1915L desktop LCD touchmonitor is available with a choice of Elo's AccuTouch® five-wire resistive, or IntelliTouch® surface wave touch technologies, plus a dual serial/ USB touch interface. The monitor is factory sealed against dust, dirt, and liquid splashes. The 1915L can be used in a wide variety of environments because it registers input from a finger, gloved hand or soft stylus with a fast and accurate response.
Other features.
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt stand
- Long-lasting product cycle
- Available with IntelliTouch Surface Wave Technology, or AccuTouch Five-Wire Resistive Technology
- Sealed touchscreen
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Antiglare) - E142981 (Asia/Pacific)
IntelliTouch (Antiglare) - E966732 (Asia/Pacific)外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线
19 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
5:4
有效显示区域 (mm)
14.8" x 11.9" / 376.3mm x 301.1mm
分辨率
1280 x 1024
其他支持的分辨率
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 Hz可视角度
水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 187 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
Dual serial/USB
用户控件
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls视频输入格式
Analog VGA
视频输入信号接口
Mini D-Sub 15-Pin VGA type
功耗 (标准)
23 W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 85-265 VAC, 47–63 Hz; DC: 12.0 VDC ±0.75V
输入接口
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
显示器尺寸 (含底座)
16.9" x 14.9" x 8.2" / 429mm x 379mm x 207mm
运输尺寸
21.28" x 19.50" x 11.23" / 540mm x 495mm x 285mm
重量 (不含包装)
17.4 lbs / 7.9 kg
重量 (含包装)
25.8 lbs / 11.7 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, removable
安装选项
100 mm VESA mount
Threaded-through mounting holes, under stand其他功能
Security lock receptacle
质保
3年
机构认证
North America/Worldwide: UL, cUL, MPR II, CE, FCC, VCCI, C-Tick Class B
Asia: BSMI, CCC, MIC, China RoHSAC电源线
North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
AC power cables for power brick are also available at additional cost:
United States - Elo p/n: E042259
Europe - Elo p/n: E690013
United Kingdom - Elo p/n: E235317可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E005277, is available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
可选底座
Stand (Beige) - Elo p/n: E668438
Stand (Dark Grey) - Elo p/n: E335194
