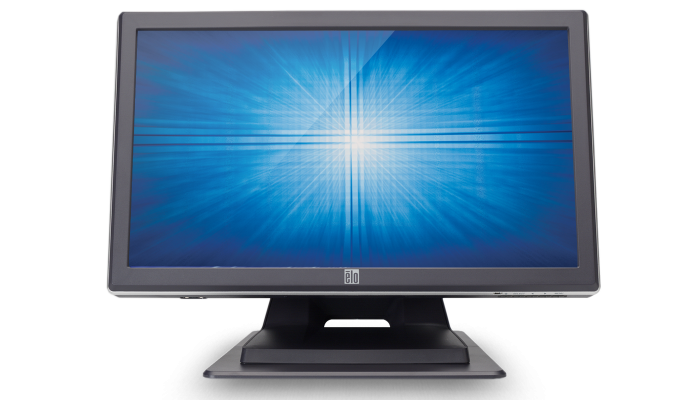

1919L 19" Touchscreen Monitor (Discontinued August 2013)
Overview
The 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1919L is available in three industry-leading Elo touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch® surface acoustic wave and zero-bezel AccuTouch® 5-wire resistive. Additional applications well-suited to take advantage of the monitor’s features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Other features.
- Wide-screen format provides more application space
- Pure glass construction provides superior optical performance (APR and IntelliTouch only)
- Uninterrupted surface area and easy-to-clean true-flat surface on the zero-bezel APR and zero-bezel AccuTouch touchmonitors
- "Designed for touch" features such as a stable tilt stand
- Space-saving built-in speakers
- Sleek, integrated design offers a stylish look for public venues
- User-lockable on-screen display – designed for public access
- Can also be used in portrait mode
- VESA compliance makes wall or arm-mounting possible
- VGA video input
- Screen is resistant to water, dust, grease
- One-time factory calibration for easy deployment and integration (APR only)
- Headphone jacks
规格
-
技术
产品料号
Acoustic Pulse Recognition (USB, Anti-glare, ASIA-Pacific) - E555042
Acoustic Pulse Recognition (USB, Anti-glare, EMEA) - E253324
Acoustic Pulse Recognition (USB, Anti-glare, Japan) - E947660
Acoustic Pulse Recognition (USB, Anti-glare, Americas) - E459829外壳颜色
深灰色
触控技术
声学脉冲识别 - 单触
对角线
18.5 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
16:9
有效显示区域 (mm)
16.1" x 9.1" / 410mm x 230mm
分辨率
1366 x 768 at 60 Hz
其他支持的分辨率
1680 x 1050 at 60 Hz
1600 x 1200 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 800 at 60 Hz
1280 x 768 at 65 Hz
1024 x 768 at 60, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 72 or 75 Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
Acoustic Pulse Recognition: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
USB: E555042, E253324, E947660, E459829
屏幕显示 (OSD)
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, recall defaults, sharpness, volume, mute
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls音频输入接口
3.5mm TRS jack
音频信号输入频率
1Vrms maximum stereo signal (standard PC line out)
耳机输出接口
3.5mm TRS jack x 2, wired in parallel
耳机输出信号
Delivers 90mW of power into a single 32-ohm stereo load
扬声器
Two 2W internal speakers
视频输入格式
Analog VGA
视频输入信号接口
Mini D-sub 15-pin VGA type
功耗 (标准)
Monitor only, no audio: 17.6 W
Monitor plus AC/DC Adapter at 230V/50 Hz, no audio: 20.7W电源
AC-DC power adapter
输入电压
12 V ±5%
输入接口
Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)
输入频率
Horizontal: 30-83 kHz / Vertical: 50-75 Hz
适配器输入连接器
IEC 60320 C14
适配器输入连接器
100-240VAC, 50/60 Hz
显示器尺寸 (含底座)
17.9" x 12.6" x 9.3" / 454mm x 321mm x 236mm
运输尺寸
22.4" x 16.3" x 8.9" / 570mm x 415mm x 225mm
重量 (含底座)
15.1lbs / 6.8kg
重量 (不含底座)
10.2lbs / 4.6kg
运输重量 (含底座)
21.5lbs / 9.7kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 50°C / -4°F to 122°F
湿度
Operating: 20% - 80%
Storage: 10% - 90%
noncondensing高度
Operating: 0m - 3,658m / 12,000 ft.
Storage: 0m - 12,192m / 40,000 ft.密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tiltable, removable, pivot (landscape/portrait mode)
安装选项
With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode
100 mm VESA mount其他功能
Security lock receptacle
质保
3年
背光灯寿命
Minimum 40,000 hours to half brightness
机构认证
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
Asia: China CCC, Japan VCCI, Korea KC, Korea KKC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE替换电缆套件
Elo P/N: E378229 (Gray)
可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost
可选外设
磁条阅读器 (MSR) – Elo P/N: E039290
北美适配器 - Elo P/N: E348315
欧洲适配器 - Elo P/N: E162361
英国适配器 - Elo P/N: E334749
中国适配器 - Elo P/N: E834397
台湾电源适配器 - Elo P/N: E953228
日本电源适配器 - Elo P/N: E033396
阿根廷电源适配器- Elo P/N: E707702可选底座
Elo p/n: E952913
