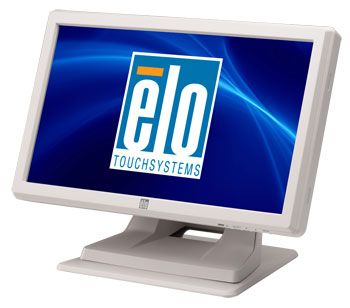

1919LM 19" Touchscreen Monitor (Discontinued August 2013)
Overview
The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch® surface acoustic wave and AccuTouch® five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.
The 1919LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC and the 1919LM meets RoHS compliance. As a result the 1919LM is an excellent fit for a wide variety of settings, including healthcare.
The Elo 1919LM touchmonitor is an effective solution for System Integrators, Value-Added Resellers and Software Developers to consider integrating into their healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point–of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.
Other features.
- Economical and reliable
- Support input video up to 1680 x 1050 at 60Hz
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), Projected Capacitive (PCAP) or Acoustic Pulse Recognition Technology
- Optional ergonomic 3 stripe MSR available in: USB with keyboard emulation
- Sealed touchscreen
- Dual serial/USB touch interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
规格
-
技术
产品料号
Acoustic Pulse Recognition (Dual serial/USB, Antiglare) - E374220
Acoustic Pulse Recognition (Dual serial/USB, Antiglare, Japan) - E843921
Acoustic Pulse Recognition (Dual serial/USB, Antiglare, North America) - E956891
Acoustic Pulse Recognition (Dual serial/USB, Antiglare, Europe) - E660283外壳颜色
白色
触控技术
声学脉冲识别 - 单触
对角线
18.5 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
16:9
有效显示区域 (mm)
16.1" x 9.1" / 410 mm x 230mm
分辨率
1366 x 768
其他支持的分辨率
720 x 350 at 70Hz
720 x 400 at 70Hz
640 x 480 at 60, 72, 75Hz
800 x 600 at 56, 60, 72, 75Hz
832 x 624 at 75Hz
1024 x 768 at 60, 70, 75Hz
1280 x 800 at 60Hz
1280 x 960 at 60Hz
1280 x 1024 at 60, 75Hz
1360 x 768 at 60Hz
1366 x 768 at 60Hz
1440 x 900 at 60Hz
1600 x 1200 at 60Hz
1680 x 1050 at 60Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 300 nits
Acoustic Pulse Recognition (APR): 270 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
Dual serial/USB: E374220, E843921, E956891, E660283
屏幕显示 (OSD)
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Phase, Clock, H-Position, VPosition, Auto-Adjust, Maintain Aspect Ratio, Sharpness, Video Source, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese,Japanese
Lockouts: OSD, Power音频输入接口
3.5mm TRS jack
耳机输出接口
Two 3.5mm TRS jacks
扬声器
Two 2W internal speakers
视频输入格式
Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D connector功耗 (标准)
21.8W (monitor and AC/DC adapter)
电源
DC (external power adapter included with unit)
输入电压
AC/DC Adapter: 100-240 VAC, 50/60 Hz; Monitor: +12VDC ±5%
输入接口
AC/DC Adapter: IEC 60320 C14; Monitor: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 30-83KHz / Vertical: 50-75 Hz
显示器尺寸 (含底座)
13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm
运输尺寸
22.44" x 14.96" x 8.86" / 570mm x 415mm x 225mm
重量 (不含包装)
15.2 lbs / 6.9 kg
重量 (含包装)
21.6 lbs / 9.8 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tiltable and removable
安装选项
100 mm VESA mount
Interface on rear of unit; 4-hole mounting interface on stand baseplate.其他功能
Security lock receptacle
质保
3年
机构认证
North America: USA UL 60601-1 (3rd Edition), CSA C22.2 No. 60601-1 (medical), USA FCC CFR 47 Part 18 Subpart B (medical), UL 60950, CSA C22.2 No. 60950-1-03, Mexico NOM, FCC, ICES
EMEA: Europe IEC, EN 60601-1:1988+A1+A2 2nd Edition (medical), Europe IEC, EN 60601-1-2:2005, IEC, EN 55011 (medical), Europe IEC, EN 60950-1 including all CB scheme member country deviations, C-tick, CE mark
Japan: VCCI
South America: Argentina S-mark替换电缆套件
Elo p/n: E378229, available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
Optional Accessories/Peripherals
Replacement Medical Power Brick Kits:
United States: Elo p/n: E179789
Europe: Elo p/n: E050243
United Kingdom: Elo p/n: E287753
Japan: Elo p/n: E970286可选底座
Elo p/n: E990099, available at additional cost.
