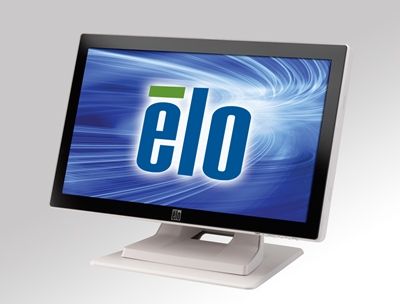

1919LM 19" Touchscreen Monitor (Discontinued November 2015)
Overview
The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive and projected capacitive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.
The 1919LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC and the 1919LM meets RoHS compliance. As a result the 1919LM is an excellent fit for a wide variety of settings, including healthcare.
The Elo 1919LM touchmonitor is an effective solution for System Integrators, Value-Added Resellers and Software Developers to consider integrating into their healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point–of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.
Other features.
- Economical and reliable
- Support input video up to 1680 x 1050 at 60Hz
- Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), or Projected Capacitive (PCAP) multi-touch technology in zero-bezel design
- Optional ergonomic 3 stripe MSR
- Sealed touchscreen
- Dual serial/USB touch interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Dual serial/USB, Antiglare, Europe) - E120415
AccuTouch (Dual serial/USB, Antiglare, North America) - E093466
AccuTouch (Dual serial/USB, Antiglare, Japan) - E966131
IntelliTouch (Dual serial/USB, Antiglare, North America) - E872193
IntelliTouch (Dual serial/USB, Antiglare, Europe) - E803857
IntelliTouch (Dual serial/USB, Antiglare, Japan) - E214864
PCAP (USB, Clear, Worldwide) - E849623外壳颜色
白色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控
PCAP (TouchPro® 投射式电容)-10点触控对角线
18.5 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
16:9
有效显示区域 (mm)
16.1" x 9.1" / 410 mm x 230mm
分辨率
1366 x 768
其他支持的分辨率
720 x 350 at 70Hz
720 x 400 at 70Hz
640 x 480 at 60, 72, 75Hz
800 x 600 at 56, 60, 72, 75Hz
832 x 624 at 75Hz
1024 x 768 at 60, 70, 75Hz
1280 x 800 at 60Hz
1280 x 960 at 60Hz
1280 x 1024 at 60, 75Hz
1360 x 768 at 60Hz
1366 x 768 at 60Hz
1440 x 900 at 60Hz
1600 x 1200 at 60Hz
1680 x 1050 at 60Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 300 nits
AccuTouch: 240 nits
IntelliTouch: 270 nits
Projected Capacitive: 270 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
Dual serial/USB: E120415, E093466, E966131, E872193, E803857, E214864
USB: E849623屏幕显示 (OSD)
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Phase, Clock, H-Position, VPosition, Auto-Adjust, Maintain Aspect Ratio, Sharpness, Video Source, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese,Japanese
Lockouts: OSD, Power音频输入接口
3.5mm TRS jack
耳机输出接口
Two 3.5mm TRS jacks
扬声器
Two 2W internal speakers
视频输入格式
Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D connector功耗 (标准)
21.8W (monitor and AC/DC adapter)
电源
DC (external power adapter included with unit)
输入电压
AC/DC Adapter: 100-240 VAC, 50/60 Hz; Monitor: +12VDC ±5%
输入接口
AC/DC Adapter: IEC 60320 C14; Monitor: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
输入频率
Horizontal: 30-83KHz / Vertical: 50-75 Hz
显示器尺寸 (含底座)
13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm
运输尺寸
22.44" x 14.96" x 8.86" / 570mm x 415mm x 225mm
重量 (不含包装)
15.2 lbs / 6.9 kg
重量 (含包装)
21.6 lbs / 9.8 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%
noncondensing密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tiltable and removable
安装选项
100 mm VESA mount
Interface on rear of unit; 4-hole mounting interface on stand baseplate.其他功能
Security lock receptacle
质保
3年
机构认证
North America: USA UL 60601-1 (3rd Edition), CSA C22.2 No. 60601-1 (medical), USA FCC CFR 47 Part 18 Subpart B (medical), UL 60950, CSA C22.2 No. 60950-1-03, Mexico NOM, FCC, ICES
EMEA: Europe IEC, EN 60601-1:1988+A1+A2 2nd Edition (medical), Europe IEC, EN 60601-1-2:2005, IEC, EN 55011 (medical), Europe IEC, EN 60950-1 including all CB scheme member country deviations, C-tick, CE mark
Japan: VCCI
South America: Argentina S-mark替换电缆套件
Elo p/n: E378229, available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
Optional Accessories/Peripherals
Replacement Medical Power Brick Kits:
United States: Elo p/n: E179789
Europe: Elo p/n: E050243
United Kingdom: Elo p/n: E287753
Japan: Elo p/n: E970286可选底座
Elo p/n: E990099, available at additional cost.
