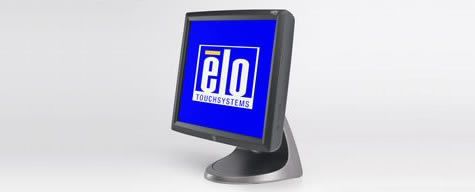

1926L 19" Touchscreen Monitor (Discontinued June 2007)
Overview
The 1926L carries worldwide medical certifications and is available with AccuTouch five-wire resistive touchscreen technology, the most widely used technology for medical equipment applications, or IntelliTouch surface wave technology for superior image quality. Certifications include UL/cUL 2601-1/C22.2 No. 601.1, and CE MDD. The innovative IPX1 enclosure design (AccuTouch only) ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. The drip-proof nature of this touchmonitor allows the monitor to be sterilized with hospital-grade disinfectants. As a result, this monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchscreen can be activated with a gloved hand-a critical capability for medical applications. The 1926L is a truly integrated solution for medical equipment OEMs and health care systems integrators seeking a reliable, durable and cost-effective medical grade touchmonitor.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Serial, Antiglare, Worldwide) - F49784-000
AccuTouch (USB, Antiglare, Worldwide) - 107650-000
AccuTouch (Serial, Antiglare, Worldwide) - E51854-000
AccuTouch (USB, Antiglare, Worldwide) - F22431-000
IntelliTouch (Serial, Antiglare, Worldwide) - E343474
IntelliTouch (USB, Antiglare, Worldwide) - E125960
IntelliTouch (Serial, Antiglare, Worldwide) - E624063
IntelliTouch (USB, Antiglare, Worldwide) - E764789外壳颜色
Dark Gray or Beige
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线
19 英寸对角线,有源矩阵 TFT LCD (LED)
长宽比
5:4
有效显示区域 (mm)
14.8" x 11.9" / 376mm x 301mm
分辨率
1280 x 1024 at 60, 70 or 75 Hz
其他支持的分辨率
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±85° 或 170° 总计
色彩
16.7 million, 8-bit per color data
亮度 (标准)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nits响应时间 - 总计 (标准)
25 msec
对比度
700:1
触控界面
Serial: F49784-000, E51854-000, E343474, E624063
USB: 107650-000, F22431-000, E125960, E764789屏幕显示 (OSD)
Digital
Locking OSD and/or power用户控件
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, Japanese音频输入接口
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacks扬声器
Two built-in, rear-facing 2W speakers in display head
视频输入格式
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
视频输入信号接口
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cables视频输入频率
Separate H & V, composite sync, sync-on-green
功耗 (标准)
40 W
电源
External (inlet connector: IEC60320-C13)
输入电压
100-240 V, 50/60 Hz
输入频率
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
显示器尺寸 (含底座)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
重量 (不含包装)
21.5 lbs / 9.78 kg
重量 (含包装)
30.0 lbs / 13.6 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF
50,000小时演示
安装选项
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt control质保
3年
机构认证
UL, cUL Classified 60601-1, CE, FCC, IC, C-Tick Class B, IPX1 (AccuTouch only)
电源线
A 10' hospital grade North America power cord and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: 276875-000.可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
可选外设
磁条阅读器 (MSR) – Elo P/N: E039290
