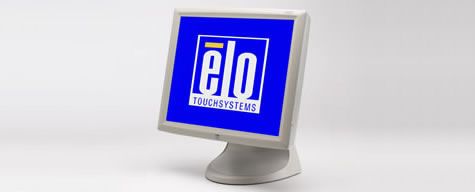

1927L 19" Touchscreen Monitor (Discontinued October 2007)
Overview
The 1927L 19" touchmonitor is the latest addition to the popular Elo desktop line, designed to address the key needs of touch applications requiring a large, visually appealing display. The 1927L can truly be called "designed for touch" with features such as a stable tilt base, OSD controls on the side with lockout feature for public use, speakers, and flexible input/output connectivity, including extra USB connections. It has a unique combination of performance, reliability, installation and ease-of-use, all with distinctive new styling.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
规格
-
技术
产品料号
AccuTouch (Serial, Antiglare, Worldwide) - E820608
AccuTouch (USB, Antiglare, Worldwide) - E319464
IntelliTouch (Serial, Antiglare, Worldwide) - E674496
IntelliTouch (USB, Antiglare, Worldwide) - E367777外壳颜色
米白色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线
19 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
5:4
有效显示区域 (mm)
14.8" x 11.9" / 376mm x 301mm
分辨率
1280 x 1024
其他支持的分辨率
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 Hz可视角度
水平: ±85° 或 170° 总计 / 垂直: ±85° 或 170° 总计
色彩
16.7 million, 8-bit per color data
亮度 (标准)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nits响应时间 - 总计 (标准)
25 msec
对比度
700:1
触控界面
Serial: E820608, E674496
USB: E319464, E367777屏幕显示 (OSD)
Digital
Locking OSD and/or power用户控件
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, Japanese音频输入接口
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacks扬声器
Two built-in, rear-facing 2W speakers in display head
视频输入格式
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
视频输入信号接口
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cables功耗 (标准)
40 W
电源
Internal, with jack to accept power from optional external brick
输入电压
85-265 V, 50-60 Hz and/or 12VDC @ 3.75A (max)
输入接口
Inlets IEC60320-1C6 for AC and 5.5 mm external / 2.5 mm internal coaxial for DC; cords NEMA 15-3 and CEE 7 Schuko
输入频率
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
显示器尺寸 (含底座)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
重量 (不含包装)
21.5 lbs / 9.78 kg
重量 (含包装)
30.0 lbs / 13.6 kg
工作温度
0°C to 40°C
储存温度
-20°C to 60°C
湿度
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF
50,000小时演示
安装选项
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt control质保
3年
背光灯寿命
50,000 hours
机构认证
UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B, CB Report, Certificate, MPRII, Section 508
AC电源线
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
A replacement North American AC power cable, Elo p/n: C45467-000, is available at additional cost.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E042259
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317可选电源适配器
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E034907, is available at additional cost.
可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
触控/视频线:
Detachable touch and video cables are included. A replacement DVI-I to Analog video cable, Elo p/n: E38043-000, is available at additional cost.
可选外设
磁条阅读器 (MSR) – Elo P/N: E039290
