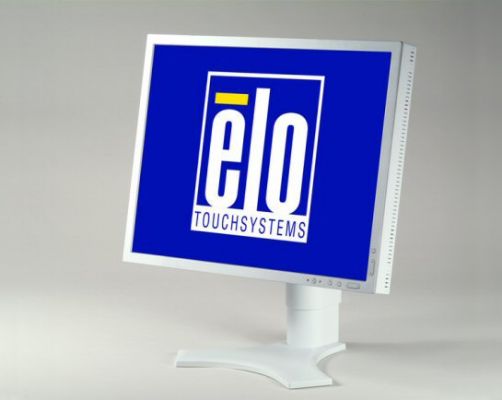

2020L 20" Touchscreen Monitor (Discontinued January 2007)
Overview
The 2020L touchmonitor is designed for retail POS, industrial, and government applications as well as interactive digital signage. The large display area is suitable for many different environments, including flight simulators, industrial equipment, interactive digital signage, and retail.
Other features.
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- High quality panel with 178° viewing angle
- Available in black or beige
- Can be used in portrait mode
- Adjustable height
- Carrying handle for easy transport
- Quick release stand
- Desktop stand can be removed or reversed for wall mounting option
- VESA mounting option
- Sealed touchscreen
- Controls on the side rather than the front
- Digital on-screen display (OSD)
规格
-
技术
产品料号
AccuTouch (USB, Antiglare, Worldwide) - E418308
AccuTouch (Serial, Antiglare, Worldwide) - E854384
AccuTouch (USB, Antiglare, Worldwide) - E973889
IntelliTouch (USB, Antiglare, Worldwide) - E637315
IntelliTouch (Serial, Antiglare, Worldwide) - E994124
IntelliTouch (USB, Antiglare, Worldwide) - E414923
IntelliTouch (Serial, Antiglare, Worldwide) - E735022外壳颜色
Black or Beige
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线
20.1" diagonal, Active matrix TFT L
长宽比
4:3
有效显示区域 (mm)
16.14" x 12.12" / 409.9mm x 307.8mm
分辨率
1600 x 1200 at 60 Hz
其他支持的分辨率
1600 x 1200 at 60 Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60-85 Hz
1200 x 1600 at 60 Hz
1152 x 864 at 70-85 Hz
1152 x 870 at 75 Hz
1024 x 768 at 60-85 Hz
832 x 624 at 75 Hz
800 x 600 at 56-85 Hz
720 x 400 at 70-85 Hz
640 x 480 at 60-85 Hz
640 x 400 at 70-85 Hz (digital)可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD panel: 280 nits
AccuTouch: 238 nits
IntelliTouch: 266 nitsDot Pitch
0.255 mm
响应时间 - 总计 (标准)
16 msec
对比度
700:1
Touch Interfaces
Serial: E854384, E994124, E735022
USB: E418308, E973889, E637315, E414923屏幕显示 (OSD)
Digital
视频输入信号接口
15pin D-sub, DVI-D, DVI-I and VGA
功耗 (标准)
On: 50W
Power saving mode: < 1W电源
Internal AC
输入电压
AC 100–120V; AC 220–240V
输入频率
Analog
Horizontal: 31.5–91.1 kHz / Vertical: 50–85 Hz
Digital
Horizontal: 31.5–99.4 kHz / Vertical: 50–85 Hz显示器尺寸 (不含底座)
17.3" x 13.4" x 3.3" / 439.2mm x 340mm x 85mm
显示器尺寸 (含底座)
17.3" x 22.3" x 9.7" / 439.2mm x 565.5mm x 247.3mm
重量 (含底座)
21.4 lbs / 9.7 kg
重量 (不含包装)
15.4 lbs / 7.0 kg
工作温度
5°C to 35°C / 41°F to 95°F
储存温度
-10°C to 60°C / 14°F to 140°F
湿度
Operating: 30%-80%
Storage: 10%-85%
noncondensingMTBF
40,000 – 50,000 hours
安装选项
100 mm VESA mount
Removable and adjustable base
Wall mountable质保
4-years parts and labor, including backlight
背光灯寿命
40,000 hours until half brightness
机构认证
The approved monitor is not submitted for re-certification after touch modification.
