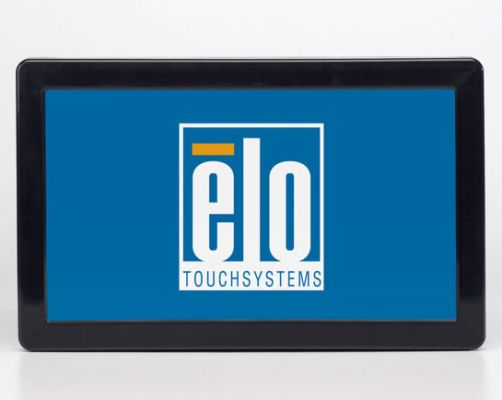

2039L 20" Open Frame Touchscreen (Discontinued April 2010)
Overview
The 2039L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
The 2039L features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. Because the enclosure is controlled by Elo specifications and tooling, the Elo open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing. It also features a unique, injection-molded bezel with a virtually invisible watertight seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a dual serial/USB touch interface add to the versatility of the 2039L. Worldwide agency approvals cover the entire monitor that is designed, built and supported by Elo, a true single-source supplier.
The 2039L is available with a choice of the innovative APR (Acoustic Pulse Recognition), IntelliTouch® surface acoustic wave, and surface-capacitive touch technologies. The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Features
- A bright, high-contrast display with wide viewing angle easily attracts and holds the user's attention.
- Pure-glass Acoustic Pulse Recognition technology combines optical quality, durability and drift-free stability, with excellent drag properties.
- IntelliTouch (surface acoustic wave) technology offers high-quality optics, durability, and long-term reliability.
- Surface-capacitive technology offers a fast, sensitive touch response with strong dragging performance.
- A transparent protective coating makes the touchscreen resistant to scratches and abrasions.
- Integrated precision minibezel with watertight 0.5 mm seal
- The enclosure is controlled by Elo specifications and results in a long-lasting product cycle.
- Multiple mounting options are available.
- Dual serial and USB connectivity are standard.
- Worldwide agency approvals and a three-year standard warranty are backed by Elo.
规格
-
技术
产品料号
Acoustic Pulse Recognition (Antiglare, Americas) - E450093
IntelliTouch (Antiglare, Americas) - E462322
Surface Capacitive (Antiglare, Americas) - E175754
Acoustic Pulse Recognition (Antiglare, Asia/Pacific) - E262156
IntelliTouch (Antiglare, Asia/Pacific) - E628199
Surface Capacitive (Antiglare, Asia/Pacific) - E212155
Acoustic Pulse Recognition (Antiglare, EMEA) - E399892
IntelliTouch (Antiglare, EMEA) - E509059
Surface Capacitive (Antiglare, EMEA) - E275642外壳颜色
黑色
触控技术
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触
Surface Capacitive (SCAP) - Single Touch触控界面
USB: E450093, E262156, E399892
Dual serial/USB: E462322, E175754, E628199, E212155, E509059, E275642对角线
20" diagonal, Active matrix TFT LCD
屏幕显示 (OSD)
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall default, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls长宽比
16:9
有效显示区域 (mm)
17.4" x 9.8" / 443 mm x 249 mm
分辨率
1366 x 768 at 60 Hz
其他支持的分辨率
1680 x 1050 at 60 Hz
1600 x 1200 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1024 x 768 at 60 Hz
800 x 600 at 56 or 60 Hz
640 x 480 at 60 Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD panel: 410 nits
Acoustic Pulse Recognition: 369 nits
IntelliTouch: 369 nits
Surface capacitive: 340 nits响应时间 - 总计 (标准)
17 msec
对比度
600:1
视频输入格式
Analog VGA, DVI video (EMEA models without DVI)
视频输入信号接口
Mini D-Sub 15-Pin VGA type, DVI-D connector
电源
Internal AC
输入电压
AC: 100~240 VAC, 50/60 Hz
输入接口
AC: IEC 60320 C6
输入频率
Horizontal: 30-75 kHz
Vertical: 47-66 Hz功耗 (标准)
65 W
尺寸
20.1" x 12.6" x 3.8" / 511 mm x 320 mm x 97 mm
运输尺寸
25.59" x 11.26" x 18.11" / 650 mm x 286 mm x 460 mm
重量 (不含包装)
18.8 lbs / 8.5 kg
重量 (含包装)
26.8 lbs / 12.2 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
质保
3年
机构认证
Australia C-Tick, China CCC, Japan VCCI, Korea EK, Korea MIC, Taiwan BSMI, Argentina S-mark, UL, cUL, FCC, Mexico NOM, CE, Russia PCT, China RoHS, WEEE, IMERC
安装选项
100 mm VESA mount
Mounting brackets included相关选项/可选外设
替换线缆套件 - Elo P/N: E378229
IntelliTouch 手写笔 - Elo P/N: D82064-000可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
