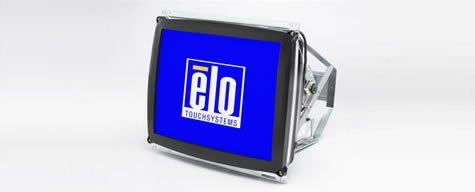

2187C 21" CRT Open Frame Touchmonitor (Discontinued June 2007)
Overview
Elo IntelliTouch® ZB SAW touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo iTouch touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
规格
-
技术
产品料号
IntelliTouch ZB (Antireflective, Worldwide) - C21274-000
外壳颜色
黑色
触控技术
SAW ZB (IntelliTouch®表面声波) - 单点触控
对角线
21.0" diagonal, Active matrix TFT LCD
显示器厚度
19.45" / 494 mm
长宽比
4:3
有效显示区域 (mm)
Horizontal: 14.96" / 380 mm
Vertical: 11.22" / 285 mm分辨率
1024 x 768 at 85 Hz (VESA)
其他支持的分辨率
1024 x 768 at 85 Hz
800 x 600 at 85 Hz
640 x 480 at 60 Hz
640 x 400 at 70 Hz
640 x 350 at 70 Hz色彩
1670万
Dot Pitch
0.25 mm
对比度
300:1
触控界面
Serial
屏幕显示 (OSD)
Multilingual OSD
Video Bandwidth
100 MHz
视频输入格式
Analog (no proprietary video card needed)
视频输入信号接口
Mini D-Sub 15-Pin (female)
功耗 (标准)
80 W typical, 90 W max.
电源
100-240 VAC, 50-60 Hz
输入频率
Horizontal: 30-70 kHz
Vertical: 50-120 Hz显示器尺寸 (不含底座)
18.58" x 16.22" x 19.45" / 472 mm x 412 mm x 494 mm
重量 (不含包装)
55 lbs / 25.0 kg
重量 (含包装)
66 lbs / 30.0 kg
工作温度
5°C to 55°C
储存温度
-20°C to 65°C
湿度
Operating: 10% to 80%
Storage: 5% to 95%
noncondensingMTBF
50,000小时演示
其他功能
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and Play质保
联系Elo
机构认证
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CB (all members), CE, VCCI, C-Tick, Nevada SR 14, MPR II, DHHS
电源线
A special locking power cable is required.
Power cables which may be suitable are available separately:
North American version (drawing MS500325 Rev B, 79K PDF)
European version (drawing MS500324 Rev B, 85K PDF)触控/视频线:
Detachable touch and video cables are included
