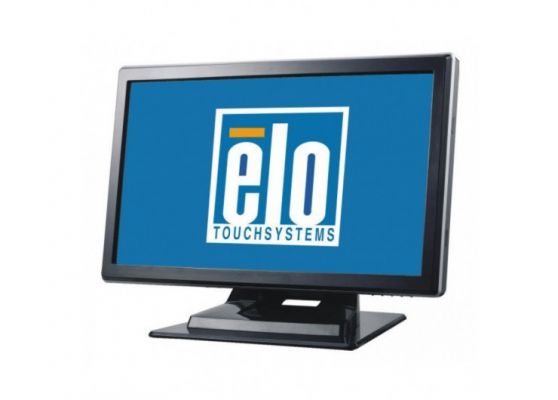

2200L 22" Touchscreen Monitor (Discontinued March 2012)
Overview
Wide-aspect displays like the 2200L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Other features.
- Wide-screen format provides more application space
- Pure glass construction provides superior optical performance
- Uninterrupted surface area and easy-to-clean true-flat surface on the zero-bezel APR touchmonitor
- "Designed for touch" features such as a stable tilt stand
- Space-saving built-in speakers
- Sleek, integrated design offers a stylish look for public venues
- User-lockable on-screen display – designed for public access
- Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
- VESA compliance makes wall or arm-mounting possible
- AC and DC power for maximum input flexibility
- VGA and DVI video input (Asia/Pacific models without DVI)
- Screen is resistant to water, dust, grease
- One-time factory calibration for easy deployment and integration
规格
-
技术
产品料号
Acoustic Pulse Recognition (USB, Antiglare, Americas) - E170919
Acoustic Pulse Recognition (USB, Antiglare, Asia/Pacific) - E948587
Acoustic Pulse Recognition (USB, Antiglare, Asia/Pacific) - E803654
Acoustic Pulse Recognition (USB, Antiglare, EMEA) - E870480
IntelliTouch (Dual serial/USB, Clear, Asia/Pacific) - E707382
IntelliTouch (Dual serial/USB, Clear, Asia/Pacific) - E448309
IntelliTouch (Dual serial/USB, Clear, EMEA) - E521976外壳颜色
Dark Gray or Beige
触控技术
SAW (IntelliTouch®表面声波) - 单点触控
声学脉冲识别 - 单触对角线
22 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
16:10
有效显示区域 (mm)
18.7" x 11.7" / 474 mm x 296 mm
分辨率
1680 x 1050 at 60 Hz
其他支持的分辨率
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 Hz可视角度
水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 300 nits
Acoustic Pulse Recognition: 270 nits
IntelliTouch: 270 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
Touch Interfaces
Dual serial/USB: E707382, E448309, E521976
USB: E170919, E948587, E803654, E870480屏幕显示 (OSD)
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls音频输入接口
3.5mm TRS jack
耳机输出接口
3.5mm TRS jack
扬声器
Two 2W internal speakers
视频输入格式
Analog VGA, DVI video (Asia/Pacific models without DVI)
视频输入信号接口
Mini D-Sub 15-Pin VGA type, DVI-D connector
功耗 (标准)
75W
电源
Internal AC, Optional external DC (power brick)
输入电压
AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%
输入接口
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)
输入频率
Horizontal: 30-83 kHz / Vertical: 53-75 Hz
显示器尺寸 (含底座)
20.3" x 15.8" x 13.5" / 516mm x 401mm x 343mm
运输尺寸
20.67" x 10.06" x 26.77" / 525mm x 255mm x 680mm
重量 (含底座)
22.2 lbs / 10.1 kg
重量 (不含底座)
15.0 lbs / 6.8 kg
运输重量 (含底座)
30.0 lbs / 13.6 kg
工作温度
0°C to 40°C /32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%
noncondensing高度
Operating: 0 to 3658m / 12,000 ft
Storage: 0 to 12,192m / 40,000 ft密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
底座选项
Tilt, removable, adjust height, pivot (landscape/portrait mode)
安装选项
100 mm VESA mount
Threaded-through mounting holes, under stand其他功能
Security lock receptacle
质保
3年
机构认证
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
EMEA: Russia PCT
Asia: Australia C-Tick, China CCC, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CEAC电源线
For touchmonitors being shipped to the Americas, a North American AC power cable is included.
For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included.
For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.替换电缆套件
Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
Optional Acoustic Pulse Recognition (APR) Stylus Pen
E963860, available at additional cost.
触控/视频线:
Detachable touch, audio, power and video cables are included.
Optional Accessories/Peripherals
North America Power Brick (N. America) - Elo p/n: E480320
European Power Brick (EMEA) - Elo p/n: E252938
UK Power Brick (UK) - Elo p/n: E872515
China Power Brick (China) - Elo p/n: E860910可选底座
Desktop Stands:
Dark gray: Elo p/n: E647647, available at additional cost.
Beige: Elo p/n: E830716, available at additional cost.
