AccuTouch® 2201 Bus Controller (Discontinued June 2004)
Overview

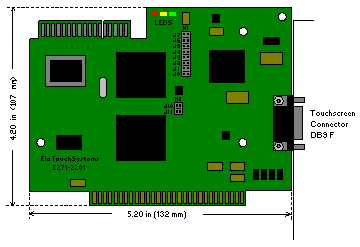

The 2201 Bus Controller (Part # 981411-000) is a half-slot PC-Bus controller for ISA and EISA systems. Host communication can be polled or interrupt-driven. Also, the I/O address and interrupt (IRQ) is selectable through software or jumpers.
规格
-
技术
产品料号
981411-000
技术
accutouch
接触数
单点触控
响应时间 - 总计 (标准)
5 ms to 20 ms
输入法
手指
手套的手
被动触控笔尺寸
please inquire
表面处理
透明
潜伏
5 ms to 20 ms
工作温度
0°C to 50°C
储存温度
-25°C to 85°C
湿度
95% RH, noncondensing
MTBF
50,000小时演示
Compatibility Mode
E271-141
控制器电缆
Contact Elo for more information.
