2240L 22" Open Frame Touchscreen (Discontinued August 2015)
Overview
Specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments, the 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178° x 178° horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

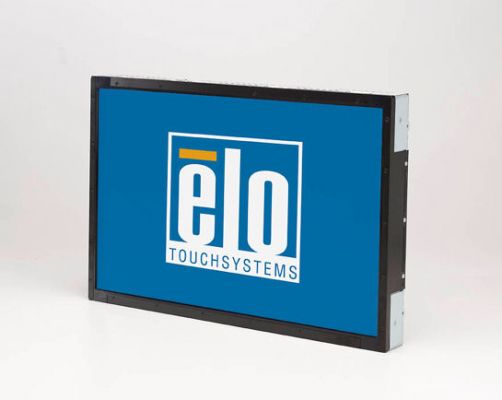

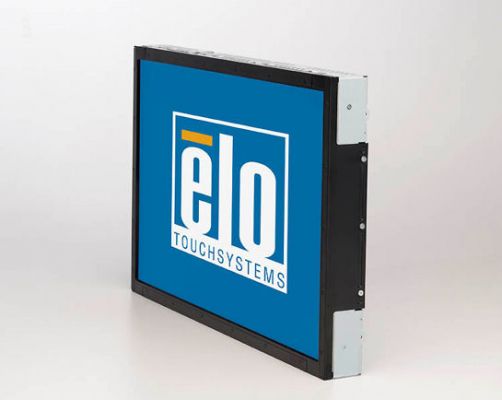

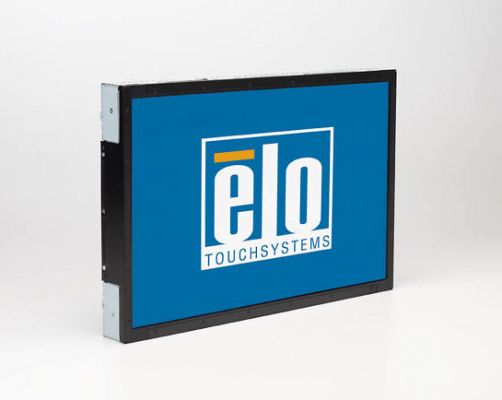

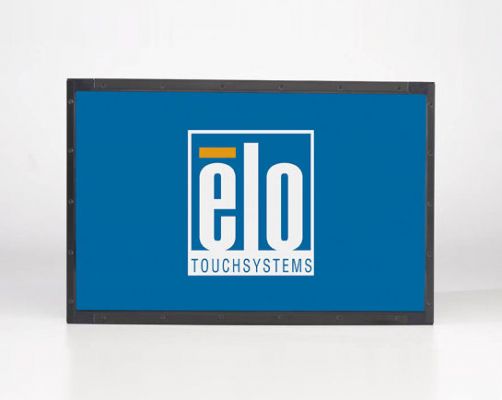

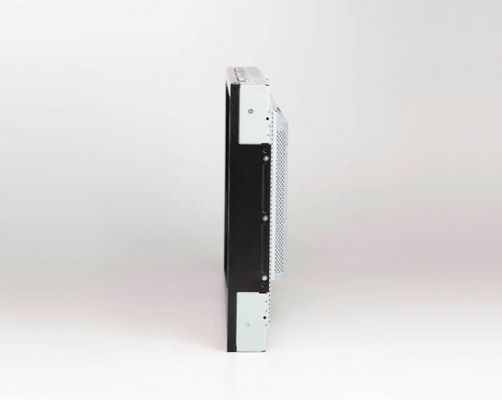

The innovative design of the open-frame 2240L provides a seamless fit for gaming and kiosk applications, and can be deployed in both landscape and portrait orientations. With a front-facing metal hardened anodized bezel and L-mounting brackets and slim dimensional profile (500 x 332 x 80 mm), the 2240L offers installation flexibility in a variety of entertainment and retail environments.
Features
- A bright, high contrast display with ultra-wide 178° x 178° viewing angle easily attracts and holds the users' attention
- Elo Touch Solutions IntelliTouch (surface acoustic wave) technology offers high quality optics, durability, and long-term reliability
- "Designed for touch" from the ground-up, including Elo Touch Solutions proprietary ultra-slim protective bezel for sealing against liquids.
- A long product life with the enclosure controlled by Elo Touch Solutions specifications
- Multiple mounting options are available

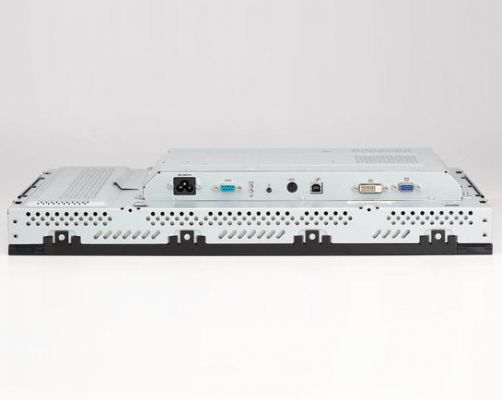

- Dual serial and USB connectivity are standard
- Worldwide agency approvals and a three-year standard warranty are backed by Elo
规格
-
技术
产品料号
IntelliTouch (Clear, EMEA) - E186354
外壳颜色
黑色
触控技术
SAW (IntelliTouch®表面声波) - 单点触控
触控界面
Dual serial/USB
对角线
22 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall defaults, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controls长宽比
16:10
有效显示区域 (mm)
18.7" x 11.7" / 474 mm x 296 mm
分辨率
1680 x 1050
其他支持的分辨率
720x350 @ 70Hz
720x400 @ 70Hz
640x480 @ 60Hz, 66Hz, 72Hz
800x500 @ 60Hz
800x600 @ 56Hz, 60Hz, 72Hz
832x624 @ 75 Hz
1024x768 @ 60Hz, 65Hz, 72Hz, 75Hz
1152x864 @ 75 Hz
1280x768 @ 65 Hz
1280x800 @ 60 Hz
1280x960 @ 60 Hz
1280x1024 @ 60Hz, 75Hz
1360x768 @ 60 Hz
1366x768 @ 60 Hz
1440x900 @ 60 Hz
1600x1200 @ 60 Hz
1680x1050 @ 60Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD panel: 400 nits
IntelliTouch: 270 nits响应时间 - 总计 (标准)
16 msec
对比度
1000:1
视频输入格式
Analog VGA, DVI video
视频输入信号接口
Mini D-Sub 15-Pin VGA type, DVI-D connector
电源
Internal AC
输入电压
AC: 100-240 VAC, 50-60 Hz
输入接口
AC: IEC 60320 C6
输入频率
Horizontal: 30-83 kHz
Vertical: 56-75 Hz功耗 (标准)
60 W
尺寸
19.7" x 13.1" x 3.2" / 500mm x 332 mm x 80 mm
运输尺寸
23.62" x 19.68" x 9.06" / 600 mm x 500 mm x 230 mm
重量 (不含包装)
16.6 lbs / 7.5 kg
重量 (含包装)
23.5 lbs / 10.7 kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20%-80%
Storage: 10%-90%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
质保
3年
机构认证
UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, China CCC, Korea MIC, Taiwan BSMI, China RoHS, UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, : China CCC, Japan VCCI, China RoHS
Elo Declarations: WEEE, IMERC安装选项
100 mm VESA mount
Mounting brackets included相关选项/可选外设
替换线缆套件 - Elo P/N: E378229
IntelliTouch 手写笔 - Elo P/N: D82064-000
Elo OSD遥控 (包含1.8 m 线缆) - Elo P/N: E622897可选 IntelliTouch 手写笔
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
