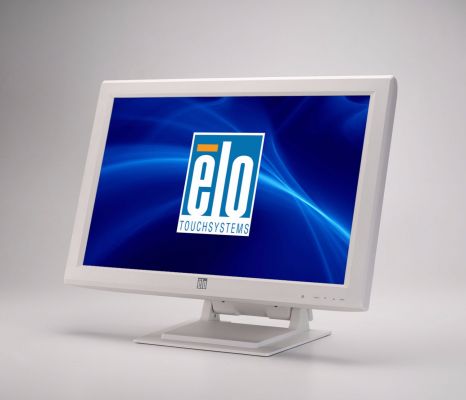

2400LM 24" Touchscreen Monitor (Discontinued October 2013)
Overview
The fully featured 2400LM touchmonitor offers best-in-class optical performance mated to leading touch technologies – IntelliTouch® surface acoustic wave and AccuTouch® five-wire resistive–in addition to a combination touch controller, DVI, VGA and built-in speakers, available in white or gray color. The 2400LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN 60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC and the 2400LM meets RoHS compliance. As a result the 2400LM is an excellent fit for a wide variety of settings, including healthcare.
The Elo 2400LM touchmonitor is an effective solution for nurse station, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in/registration, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.
Other features.
- High quality panel wide viewing angles, and high contrast ratio - Best-in-class optical performance
- Available with AccuTouch five-wire resistive touchscreen or IntelliTouch surface acoustic wave touchscreen - Choice of touch technology optimized for a wide variety of modalities
- High definition LED display - Ultimate HD interactivity, clarity and resolution
- LED backlighting - Allows for state-of-the-art slim design, while reducing power consumption
- Design is tightly controlled by Elo specifications - Elo touchmonitors have a long history of availability, which is important to maintain continuity through all phases of project roll-outs and servicing
- Removable base with mounting options including - Affords installation flexibility with both wall and arm-mounting capabilities
- EN 60950-1 and EN 60601-1 (3rd Edition) for safety; EN 55011, EN 55024, EN 61000-3-3 and EN 60601-1-2 for EMC - Recognized by public health authorities in most countries as the safety standard for certain medical electrical equipment
- RoHS compliant - Meets the lead-free, Restriction of Hazardous Substances requirements
- 3 year warranty - Fosters customer satisfaction and peace of mind; 1 year or 2 year extended warranty services available at additional cost
- Built-in speakers - For applications that require audio
规格
-
技术
产品料号
IntelliTouch (USB and Serial, Antiglare,North America) - E178661
IntelliTouch (USB and Serial, Antiglare,North America) - E109990
AccuTouch (USB and Serial, Antiglare,North America) - E567145
IntelliTouch (USB and Serial, Antiglare,Japan) - E945691
AccuTouch (USB and Serial, Antiglare,Europe) - E100905外壳颜色
Dark Gray or White
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线
24 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
16:10
有效显示区域 (mm)
20.4" x 12.8" / 518mm x 324mm
分辨率
1920 x 1200
其他支持的分辨率
640 x 480 at 60Hz
800 x 600 at 56, 60Hz
1024 x 768 at 60Hz
1280 x 960 at 60Hz
1280 x 1024 at 60Hz
1360 x 768 at 60Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1200 at 60 Hz可视角度
水平: ±80° 或 160° 总计 / 垂直: ±80° 或 160° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 245 nits
IntelliTouch: 190 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
触控界面
USB and Serial
用户控件
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, OSD H/V position, OSD timeout, recall defaults, sharpness, volume
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, power音频输入接口
3.5mm TRS jack
音频信号输入频率
0.5Vrms maximum stereo signal
扬声器
Two 2W internal speakers
视频输入格式
Analog VGA, DVI video
视频输入信号接口
15-pin female D-sub (Analog VGA, 25-pin female DVI-D (DVI）
功耗 (标准)
Monitor only: 50W
Monitor + AC/DC adapter: 61W电源
AC/DC power adapter
输入电压
AC: 100-240VAC, 50/60Hz; DC: 12V +/- 10%
输入接口
MINI DIN 4pin power jack; IEC 60320 C6
输入频率
Horizontal: 31-75 kHz / Vertical: 56-61 Hz
Sync Types
Separate H&V syncs, Composite Sync, and Sync-On-Green (Analog VGA）
运输尺寸
27.6" x 20.1" x 10.0" / 700mm x 510mm x 255mm
重量 (含底座)
27.8 lbs / 12.6kg
重量 (不含底座)
21.5 lbs / 9.8kg
运输重量 (含底座)
36.4 lbs / 16.5kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%
Storage: 10% to 90%
noncondensingMTBF
50,000小时演示
安装选项
With provided stand (on flat surface or bolted to surface via holes in base) in landscape
100mm VESA rear-mount其他功能
Security lock receptacle
质保
3年
机构认证
CB, CCC, UL, cUL, FCC, CE, VCCI, C-Tick (Class B), IEC60601-1 (3rd Edition)
Elo Declarations: RoHS, WEEE, IMERC, CE电源线
Hospital-grade power cord for US/Canada; European power cord.
AC电源线
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E587451
Europe: Elo p/n: E076657
United Kingdom: Elo p/n: E048881替换电缆套件
Elo p/n: E260110, available at additional cost.
可选 IntelliTouch 手写笔
D82064-000, available at additional cost.
触控/视频线:
Detachable touch and video cables are included.
Optional Accessories/Peripherals
North American and European power cables included
