2494L 23.8" Open Frame Touchscreen (Rev B - Discontinued June 2019)

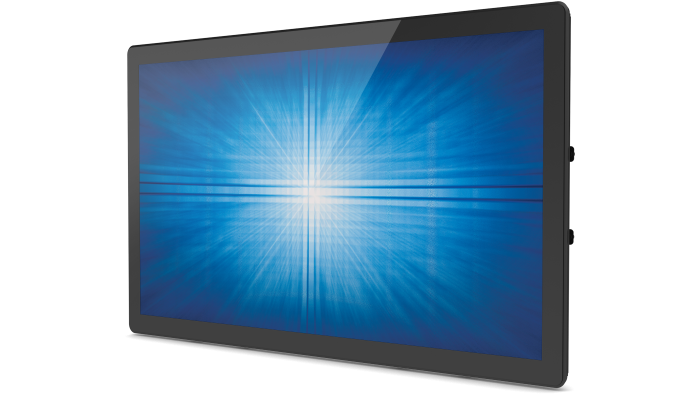

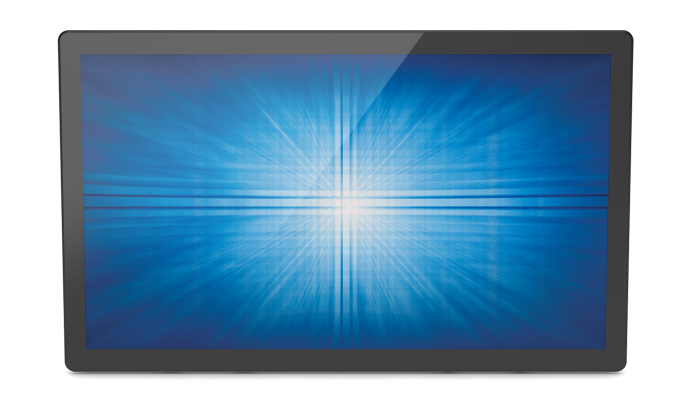

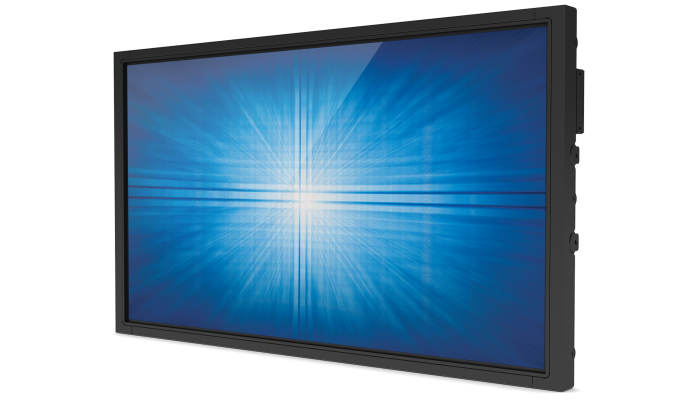

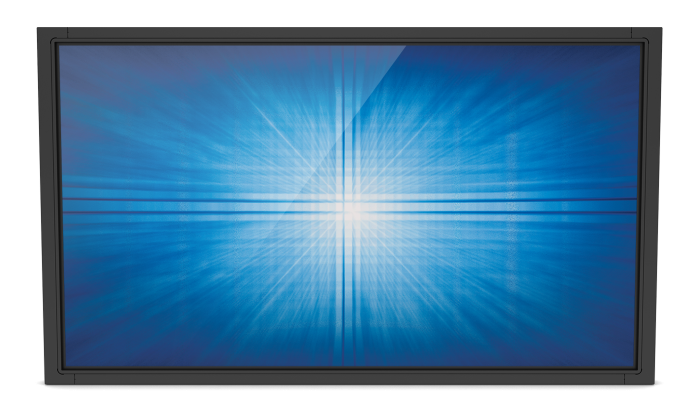

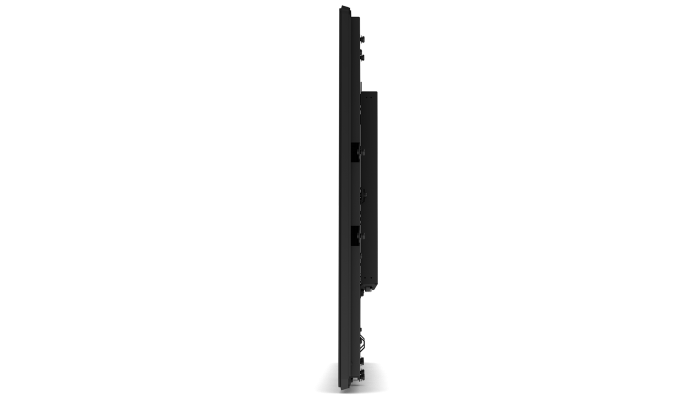

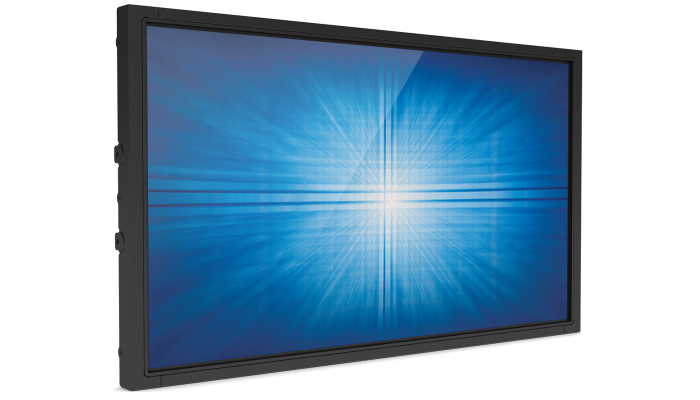

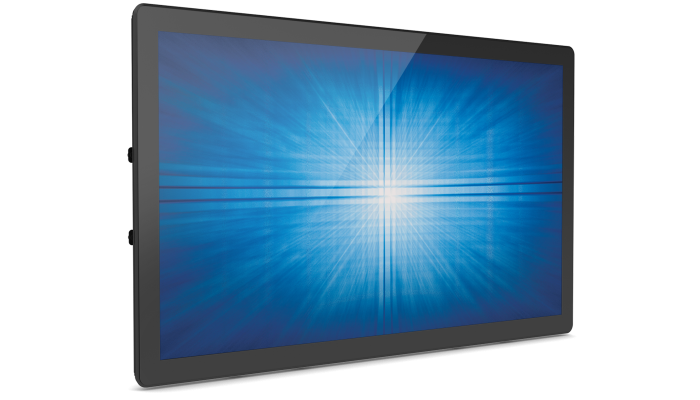

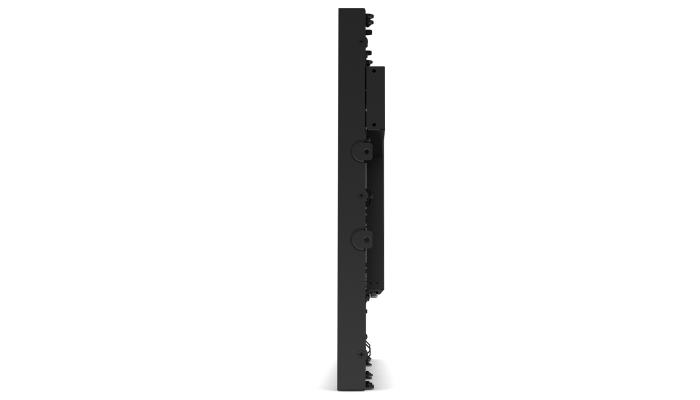

Elo 2494L Open Frame Touchscreen Display
The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo
-
Self-Service
-
Gaming
-
Healthcare
-
Industrial Automation
We chose Elo touchscreens to power our award-winning
BLUE FIRE Kiosk because they offered
the ease of
integration into our enclosure... We knew we could rely on
a durable,
long lifecycle product that will deliver a high
quality interactive experience for years
to come.
Ralf Hovenga
Managing Director, Pan Oston
Enabling Partners to Build Smarter Kiosks
With EloView and the Backpack, managing kiosks is EASY! Pair your Elo interactive open frame with the Elo Backpack and EloView to create an affordable, scalable, single-architecture deployment. The Backpack provides a low-power, solid-state, fan-less computing solution running Android 7.1 (Nougat) and when paired with EloView, you can remotely manage kiosks out-of-the-box with seamless device and content control.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru
functionality for installations
that require a front layer of glass with
thickness’s up to 6mm or solutions that require
specific IP ratings.
Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open
Frames are purpose-built for
durability in various applications and
environments: from self-service kiosks to highly
used gaming
cabinets to harsh industrial machines.
Interactive Open Frames From 10 to 55-inches
1093L 10" (16:10)
1291L 12" (4:3)
1590L 15" (4:3)
1593L 15" (16:9)
1598L 15" (4:3)
1790L 17" (5:4)
1990L 19" (5:4)
1991L 19" (5:4)
2094L 20" (16:9)
2293L 22" (16:9)
2294L 22" (16:9)
2494L 24" (16:9)
2794L 27" (16:9)
3243L 32" (16:9)
4243L 42" (16:9)
4343L 43" (16:9)
5543L 55" (16:9)
Connections
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
-
Backed by our 3-year standard
warranty with an optional
extension to 4 or 5-years. -
Purpose built for touch at
the factory level -
Compliant with UL-60950 &
IK-07 impact testing -
Ready for use 24/7
-
Designed and tested to ensure
reliable long life in the field -
Well-suited for use in any high
traffic or harsh environments.
规格
-
技术
产品料号
IntelliTouch ZB (Worldwide) - E335871
外壳颜色
黑色
触控技术
SAW ZB (IntelliTouch®表面声波) - 单点触控
触控界面
Dual serial/USB 2.0
对角线
23.8 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power长宽比
16:9
有效显示区域 (mm)
20.75" x 11.67" / 527.04mm x 296.46mm
分辨率
1920 x 1080
其他支持的分辨率
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz可视角度
水平: ±89° 或 178° 总计 / 垂直: ±89° 或 178° 总计
色彩
1670万
亮度 (标准)
LCD panel: 250 nits
IntelliTouch: 225 nits响应时间 - 总计 (标准)
16 msec
对比度
3000:1
I/O 端口
Serial port, USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in
视频输入格式
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of DisplayPort video input视频输入频率
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 Hz电源
External DC - Optional power brick (sold separately)
电源输入接口 (显示器)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
输入电压
12VDC +/- 5%
适配器输出电源连接器
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
功耗 (标准)
Monitor + Adapter at 230V/50Hz
ON: 27.3 W
SLEEP: 1.5 W
OFF: 0.5W尺寸
22.44" x 13.46" x 1.46" / 570.1mm x 342mm x 37.1mm
运输尺寸
27.24" x 17.8" x 7.48" / 692mm x 452mm x 190mm
重量 (不含包装)
14.1 lbs / 6.39 Kg
重量 (含包装)
19.3 lbs / 8.75 Kg
工作温度
0°C to 40°C / 32°F to 104°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%
Storage: 10% to 95%密封性
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000小时演示
质保
3年
延保选项
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125机构认证
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
安装选项

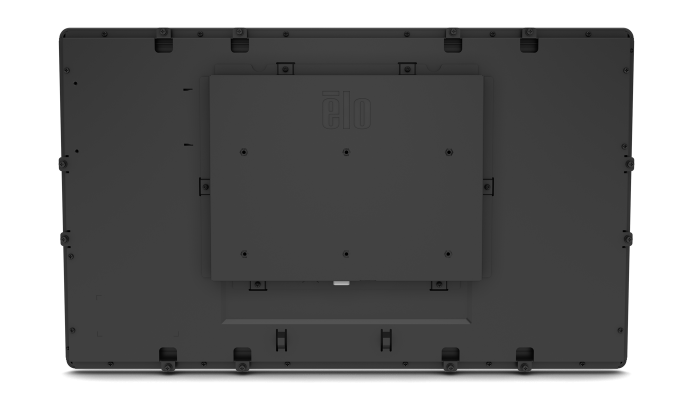

200x100mm VESA mount on rear of unit
4-hole mounting interface on all four sides.
Flush mount with included brackets包装内含
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
Flush Mount Brackets w/Screws
EEI Label
Japan Class-B TM info sheet相关选项/可选外设
Elo OSD遥控器(RJ45) - Elo P/N: E483757
Elo Backpack® 4安卓主机(Value型号); - Elo P/N: E393754
更换电缆套件 - Elo P/N: E546861
电缆套件DVI-D至HDMI - Elo P/N：E538507
电缆套件 DP至DP - Elo P/N: E582895
北美电源适配器 - Elo P/N: E005277
欧洲&韩国电源适配器 - Elo P/N: E571601
英国电源适配器 - Elo P/N: E180092
中国电源适配器 - Elo P/N: E558862
台湾电源适配器 - Elo P/N: E818655
日本电源适配器 - Elo P/N: E182546
阿根廷电源适配器 - Elo P/N: E887099
澳大利亚电源适配器 - Elo P/N: E637593
IntelliTouch 手写笔 - Elo P/N: D82064-000
Elo 24-寸 宽版嵌入式安装支架 - Elo P/N: E000879
