Elo's 3203L Interactive Display
Elo's 32-inch touchscreen display provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 3203L offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size tablet.
Enabling up to 40 touches with fast and extremely sensitive response time and anti-friction glass to minimize heat as fingertips drag across the screen, Elo’s 3203L with industry leading TouchPro® PCAP technology is designed with the user in mind. And with touch thru capability, the interactive display can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Create Immersive
Interactive Experiences
Endless Aisle Product
Information Signage
Video Conferencing
Interactive Whiteboard
Virtual Receptionist
Capacity Management
Patient Room Display
Virtual Health
Interactive Menu Board
Self-Order
Self-Checkout
Collaboration
Dashboarding
Inventory Management
Boot Barn Testimonial
Collaboration
for All Environments
Purpose-built to make collaboration easy – simply add the Huddle Kit with the 3203L Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.
Staff Training & Development
Whiteboarding & Annotation
Interactive Video Conferencing
Virtual Health
Unified Style Across Sizes
From 32- to 65-inches, choose the size that fits each space perfectly.
Elo Edge Connect™ Lets You do More
Expand your touchscreen’s potential by adding a payment device, barcode scanner, camera, NFC/RFID or one of our many other accessories. With the Elo Edge Connect system, accessories snap on to the edge of the touchscreen for a clean design and extended functionality.
Flexibility for Your Install
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a protective layer. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP products are purpose-built for durability.
Add Windows Computing
Power with Ease
The commercial-grade computer module transforms Elo's touchscreen into a powerful, all-in-one, touch computer platform. Running Intel® Core™ 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Android – Scalability
Simplified
With the Elo Backpack®, an Android-powered compute engine, you can transform any Elo touchscreen into a scalable and powerful media platform. Powered by EloView®, content-delivery and remote-management of your entire network has never been easier. The low-power, solid-state, fan-less computing solution offers everything needed in an affordable, compact design. * Supports a maximum resolution of 1920x1080
Elo Advance Unit Replacement - We Have Your Back.
As part of the three-year standard warranty for large format IDS, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service. If the issue can't be resolved over the phone, Elo will provide a replacement unit and a pre-paid shipping label for the defective unit to be returned at no cost. Elo also offers rapid response times and On-Site Exchange for large format interactive displays at additional cost.
Commercial-Grade Products Designed
for Commercial-Grade Environments
Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
Compliant with ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.
Purpose built for touch
Compliant with UL-60950 & IK-07 impact testing
Ready for use 24/7 in high traffic environments
Advance Unit Replacement included with standard warranty
External control for remote management
Free Technical Support with standard warranty
规格
-
技术
产品料号
AccuTouch (亚洲) - E183106
AccuTouch (日本) - E813593
IntelliTouch (中国) - E110290外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch®表面声波) - 单点触控对角线

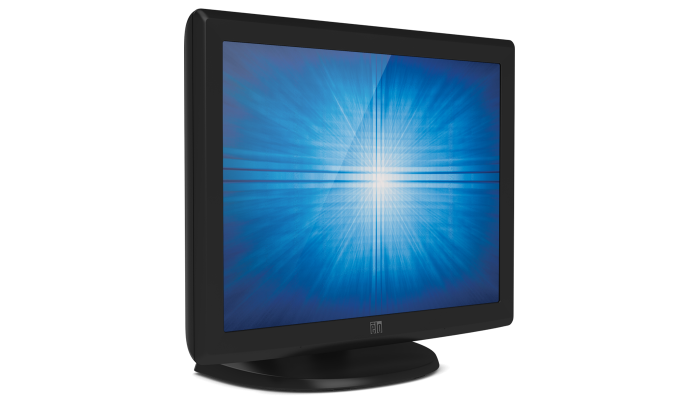

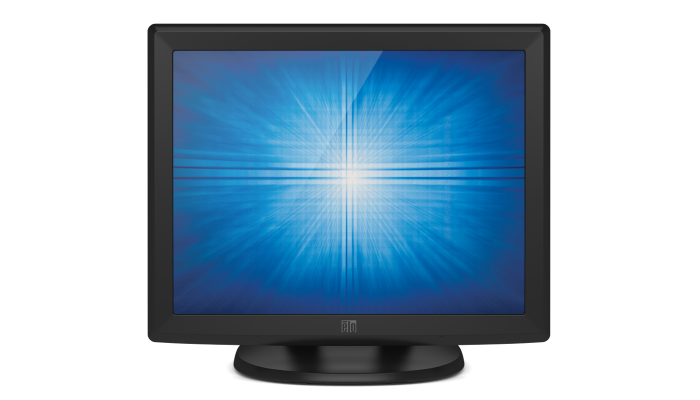

15 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
4:3
有效显示区域 (mm)
12.0" x 9.0" / 304mm x 228mm
分辨率
1024 x 768 @ 60, 70, 75 Hz, 65 Hz (日间)
其他支持的分辨率
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)
720 x 400 @70 Hz
800 x 600 @56, 60, 72 或75 Hz
832 x 624 @75 Hz (Mac)
1024 x 768 65 Hz (Sun)
1024 x 768 60, 70, 75 Hz可视角度
水平: ±80° 或 160° 总计 / 垂直: ±70° 或 140° 总计
色彩
1670万
亮度 (标准)
LCD 面板: 250 尼特
AccuTouch: 200 尼特
IntelliTouch: 225 尼特响应时间 - 总计 (标准)
11.7 毫秒
对比度
700:1
视频输入格式
模拟 VGA
视频输入信号接口
Mini-D-sub 15头 VGA类型
电源
内置AC. 可选外置DC (电源块）
输入电压
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
输入接口
AC: IEC 60320 C6 / DC: 同轴电源插孔 (2 mm 针脚外径, 6.4 mm 筒内径, 8.8 mm 筒长)
输入频率
水平: 31.5-60.2 kHz / 垂直: 56.3-75 Hz
功耗 (标准)
13W
屏幕显示 (OSD)
按键 (侧面): 菜单,向上,向下,选择,电源
设置: 对比度,亮度,水平/垂直位置,默认值恢复, RGB (色温), 屏幕显示退出,时钟,相位,锐度,屏幕显示水平/垂直位置,屏幕显示时间,恢复默认
语言选择: 英语, 德语, 西班牙语, 日语, 法语
锁定: 电源, 用户选择显示器尺寸 (含底座)
13.8" x 12.2" x 6.9" / 350mm x 310mm x 175mm
运输尺寸
17.52" x 14.96" x 10.24" / 445mm x 380mm x 260mm
重量 (含底座)
10.6 lb / 4.8 kg
重量 (不含底座)
7.3 lb / 3.3 kg
运输重量 (含底座)
15.4 lb / 7.0 kg
工作温度
0°C 至 40°C / 32°F 至 104°F
储存温度
-20°C 至 60°C / -4°F 至 140°F
湿度
工作: 20% 至 80%; 储存: 10% 至 90%
密封性
触控屏密封至边框; 触控屏密封至LCD
MTBF
50,000小时演示
安装选项

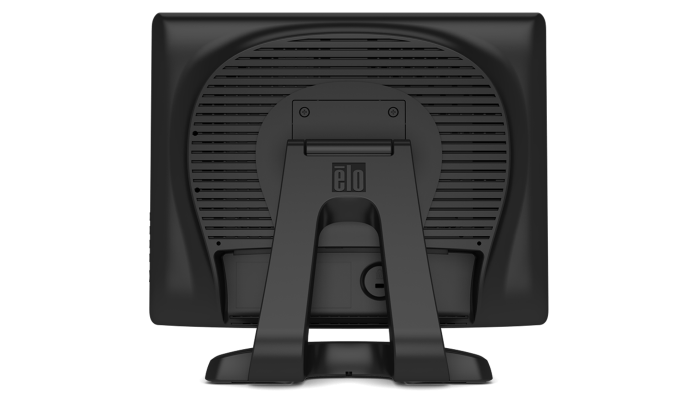

75毫米 VESA 安装, 穿线安装孔, 位于底座下方
其他功能
防盗锁插座
质保
3年
延保选项
1 年延长质保 - Elo P/N: 758588-000
2 年延长质保 - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000机构认证
北美/全球: UL, cUL, FCC, CE, Semko 或 Demko, VCCI, IC, RCM, 阿根廷 S-Mark
亚洲: UL, cUL, FCC, CE, Semko, VCCI, IC, CCC, KC, RCM, BSMI, 中国 RoHS, 阿根廷 S-Mark包装内含
快速安装手册, 使用手册CD, VGA 线缆, 串行电缆 , 电源线, USB 线
可替换DC电源
显示器还可以选择直流电压供电. 需额外购买 产品编号为E005277的12V DC 电源块
AC电源线
包括除欧洲, 中东和非洲地区以外其他地区可提供料号的北美电源线。包括欧洲, 中东和非洲地区可提供料号的欧洲和英国交流电源线。电源块的交流电源线
替换电缆套件
Elo 更换电缆需额外购买 产品编号 - E378229
可选 IntelliTouch 手写笔
专用橡胶触摸屏手写笔, 特别为IntelliTouch 或IntelliTouch DT 表面声波技术而设计。追加成本后可提供产品型号D82064-000。
触控/视频线:
包括USB触控线及VGA视频线
可选外设
磁条阅读器 (深灰色 MSR) – Elo P/N: E177037
可选底座
需要额外购买,产品编号 E245090
