C-Series 19" and 22" Touchcomputer (Discontinued June 2013)
Overview

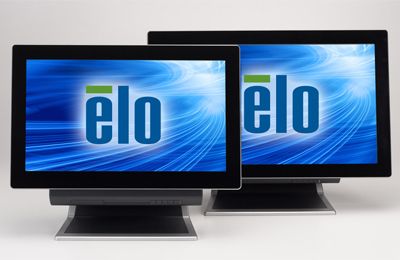

The Elo C-Series Rev.A All-in-One touchcomputer platform leverages the same quality, performance, configurations and design as our popular B-Series 15” and 17” POS touchcomputer systems. The C-Series Rev.A offers bigger, brighter displays in a wide-aspect ratio. This makes the C-Series Rev.A an excellent choice for retail point-of-information, countertop product demonstration or customer information systems. In addition, hospitality host and seating systems that depend on an accurate display of restaurant layouts can utilize the wide screen of the C-Series Rev.A and the additional screen space available to display their seating/floorspace.
The C-Series Rev.A touchcomputers bring flexibility with your choice of configuration and connectivity, serviceability with easy access to key components, and a choice in processing power. In addition, an array of field-installable peripherals, spill-resistant sealing, and a selection of input/output port connection options make the C-Series Rev.A both versatile and powerful. It is designed with your future in mind, allowing easy field serviceability of all of the main components.
The C-Series Rev.A is engineered for flexibility, with optional memory and storage configurations, as well as scalable computing power featuring two high-performance processor configurations:
- Cool and Quiet C2 Fan-less Intel Atom Dual-Core 1.66 GHz
- Performance Ultra C3 Fan-cooled Intel Core 2 Duo 3.0 GHz
The flexibility, serviceability and performance of the C-Series Rev.A are rare in commercial all-in-one touchcomputers. In a stylish, compact design, the C-Series Rev.A provides highly configurable, ruggedized touchcomputers, in two screen sizes: 19-inch and 22-inch, plus the choice of industry-leading Elo touch technologies. The C-Series Rev.A touchcomputer family has been developed to meet the demanding needs of a wide variety of hospitality and retail point-of-sale (POS), point-of-information (POI), point-of-service, point-of-presence, hospitality host station, kitchen systems, digital signage, customer loyalty, internet access sites, bedside entertainment and home automation and control.
Elo C-Series Rev.A touchcomputers are offered with your choice of the following operating systems (OS): Windows POSReady 2009, Windows 7 or no OS. Models with the IntelliTouch® Dual-touch product technology and Windows 7 support Windows 7 multi-touch functionality. Other touch product technologies with Windows 7 Operating System support single-finger gestures only.
Other features
- 19" 16:9 High Definition widescreen with high contrast LCD display - Provides a never before seen HD interactivity POI solution
- Single Image for POI 19" & 22" and POS 15" & 17" (B-Series) - Ease end point management and decrease Total Cost of Ownership (TCO); enable single image per location
- Full range of standard connectivity ports plus expansion ports to add functionality (serial, USB, HDMI and PCI-E optional I/O) - Allowing for easy integration to any legacy or new install environment
- Integrated peripherals with no external wiring - Easy installation, clean look, added security
- Choice of high-performance processor configurations - Facilitates a wide range of computing options, including low cost and high performance
- Supports industry standard low profile PCI-E (PCI Express) expansion cards - Outstanding configurability/customization options to meet all your connectivity needs
- Second hard drive option for expanded storage or RAID configuration - Enables extra storage capacity or disk mirroring (RAID) for data protection
- "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options - Stability to withstand the rigors of use in a public environment; mounting options to complement store layout and customer traffic
- 3 year warranty plus Elo quality and reliability - Satisfaction and peace of mind from nearly 40 years of experience built into all products
规格
-
技术
产品料号
19" Displays:
AccuTouch (Antiglare, Worldwide) - E274831
AccuTouch (Antiglare, Worldwide) - E199240
AccuTouch (Antiglare, Worldwide) - E258507
IntelliTouch Dual Touch (Antiglare, Worldwide) - E022657
IntelliTouch Dual Touch (Antiglare, Worldwide) - E119134
IntelliTouch ZB (Antiglare, Worldwide) - E735103
IntelliTouch ZB (Antiglare, Worldwide) - E629681
IntelliTouch ZB (Antiglare, Worldwide) - E926530
IntelliTouch ZB (Antiglare, Worldwide) - E764407
22" Displays:
AccuTouch (Antiglare, Worldwide) - E054037
AccuTouch (Antiglare, Worldwide) - E702960
AccuTouch (Antiglare, Worldwide) - E247514
IntelliTouch Dual Touch (Antiglare, Worldwide) - E531206
IntelliTouch Dual Touch (Antiglare, Worldwide) - E600229
IntelliTouch ZB (Antiglare, Worldwide) - E266917
IntelliTouch ZB (Antiglare, Worldwide) - E856702
IntelliTouch ZB (Antiglare, Worldwide) - E496955
IntelliTouch ZB (Antiglare, Worldwide) - E064208外壳颜色
深灰色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW (IntelliTouch® 表面声波)-双点触控
SAW ZB (IntelliTouch®表面声波) - 单点触控处理器
C2 Rev. A models:
Intel 1.66GHz Atom Dual-Core D510
1MB L2 Cache
533MHz System Bus
C3 Rev. A models:
Intel 3.0GHz Core 2 Duo E8400
6MB L2 Cache
1333MHz System BusBIOS
AMI
内存 (RAM)
C2 Rev. A models:
2GB Low-Profile DDR2 DIMM
on 1 of 2 slots
(Expandable to 4GB max1 on 2 slots)
C3 Rev. A models:
2GB Low-Profile DDR2 DIMM
on 1 of 1 slot
(Replaceable with 4GB max on 1 slot)硬盘
160GB 2.5” SATA HDD
芯片组
C2 Rev. A models:
Intel NM10 Express
C3 Rev. A models:
Intel G41 Express对角线
19 英寸对角线，有源矩阵 TFT LCD (LED)
屏幕显示 (OSD)
Controls: menu, up, down, select, power
Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
Languages: English, French, Italian长宽比
16:9
有效显示区域 (mm)
19" models: 16.1" x 9.1" / 409.8mm x 230.4mm
22" models: 18.8" x 10.6" / 476.6mm x 268.1mm分辨率
19" models: 1366 x 768 @ 60Hz
22" models: 1920 x 1080 @ 60Hz色彩
1670万
亮度 (标准)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch ZB: 225 nits
IntelliTouch Dual Touch: 225 nits响应时间 - 总计 (标准)
5 msec
对比度
1000:1
可视角度
水平: ±85° 或 170° 总计 / 垂直: ±80° 或 160° 总计
USB端口
6 x USB 2.0 (4 on I/O, 2 x USB Front Access)
Additional internal ports available for optional Elo peripherals串口
2 x USB-to-Serial RS-232 (standard)
以太网端口
1 x LAN RJ45 (Gigabit)
无线
Optional USB wireless kit available (802.11b/g/n)
钱箱端口
Optional cash drawer kit available (12V/24V default; selectable via jumper)
额外视频输出
C2 Rev. A models: Optional 2nd VGA port expansion card
C3 Rev. A models:Standard HDMI out / Optional 2nd VGA port expansion card音频端口
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-in扬声器
Two 2W internal speakers
操作系统
无操作系统
Windows POSReady 2009
Windows 7 Professional (32-bit only)语言
Windows 7 - 35 语言组
Windows POSReady 2009 – 32 Language groups电源
External 12VDC universal-type power supply brick
Input frequency: 50-60Hz
Max output power: 150W (Max. draw: 170W)输入电压
100-240VAC
功耗 (标准)
C2 Rev. A models: 19" models: 54W / 22" models: 54W
C3 Rev. A models: 19" models: 113W / 22" models: 113W
带底座的最大尺寸
19" models: 18.7" x 14.9" x 8.9" / 475mm x 380mm x 226mm
22" models: 21.2" x 15.3" x 8.9" / 540mm x 389mm x 226mm不带底座的最大尺寸
19" models: 18.7" x 11.9" x 3.8" / 475mm x 302mm x 98mm
22" models: 21.2" x 13.1" x 3.8" / 540mm x 333mm x 98mm运输尺寸
19" models: 23.2" x 19.5" x 14.2" / 590mm x 495mm x 360mm
22" models: 26.0" x 20.3" x 14.2" / 600mm x 516mm x 360mm重量 (含底座)
C2 Rev. A models: 19" models: 20.1 lbs / 9.1kg
22" models: 22.2lbs / 10.1kg
C3 Rev. A models: 19" models: 20.6lbs / 9.3 kg / 22" models: 22.7 lbs / 10.3 kg重量 (不含底座)
C2 Rev. A models: 19" models: 16.1 lbs / 7.3 kg
22" models: 18.3lbs / 8.3kg
C3 Rev. A models: 19" models: 16.6lbs (7.6kg) / 22" models: 18.7 lbs / 8.5 kg重量 (含包装)
C2 Rev. A models: 19" models: 30.1 lbs / 13.6 kg
22" models: 32.7lbs / 14.9kg
C3 Rev. A models: 19" models: 30.9lbs / 14.0kg / 22" models: 33.0 lbs / 15.0 kg工作温度
32°F to 95°F / 0°C to 35°C
储存温度
-22°F to 140°F / -30°C to 60°C
湿度
Operating: 20% to 80%
Storage: 5% to 95%机构认证
UL/cUL, FCC, TUV, CE, NOM COC, AR S-Mark, GOST-R, C-Tick, VCCI, CB, MPR II, 1PX1
实时时钟
锂离子电池
MTBF
50,000小时演示
安装选项
100mm VESA mount or secure base to tabletop or desktop
质保
3年
密封性
Touchscreen sealed to bezel (IntelliTouch Plus)
Touchscreen sealed to sub-bezel (AccuTouch, iTouch)
Touchscreen sealed to LCD (all)
IPX1电源线
North American and European power cables included
其他功能
Serviceable internal components
Removable base with 100mm VESA mounting
Threaded holes on bottom of base for mounting
Kensington security lock扩展选项
Wireless Adapter (USB, 802.11b/g/n)
Cash Drawer Port (12V/24V) Expansion Card
Second VGA Port Elo expansion card
Modem PCI-E Card
Parallel Port PCI-E Card可替换DC电源
12V DC power brick, part number E806884, is available at additional cost
可选 IntelliTouch 手写笔
D82064-000, available at additional cost
Optional Accessories/Peripherals
Second 160GB Hard Disk Drive (HDD)
Second HDD/SSD Mounting Bracket Kit only
2GB Low-Profile DDR2 Memory DIMM Kit
4GB Low-Profile DDR2 Memory DIMM Kit
Magnetic Stripe Reader - Elo P/N: E545781
Customer Display (2x20 VFD) - Elo P/N: E879762
Biometric Fingerprint Reader (FPR) - Elo P/N: E375206Magnetic Stripe Reader (MSR)
The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:
- Reads up to 3 tracks of information
- Bidirectional swipe reading
- Superior reading of high jitter, scratched, and worn
MagStripe cards
- Reliable for over 1,000,000 card swipes
- Reads ISO7811, AAMVA, and most other card data formats
- PC software makes configuration changes easy
- Swipe speeds from 3 to 60 inches per second
- Interfaces: USB-IDTech-HID
- Fully supports USB 2.0
- Part number: E545781
