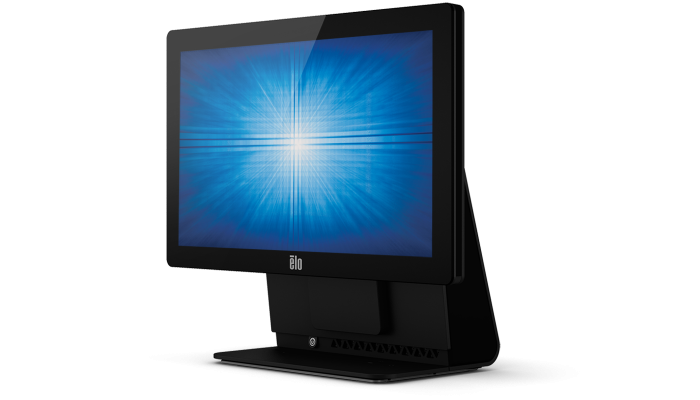

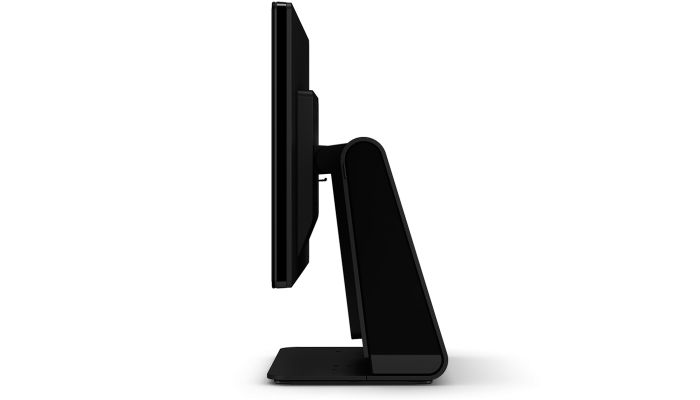

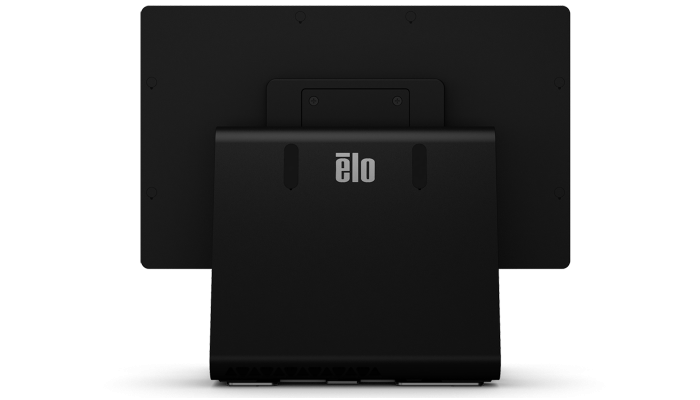

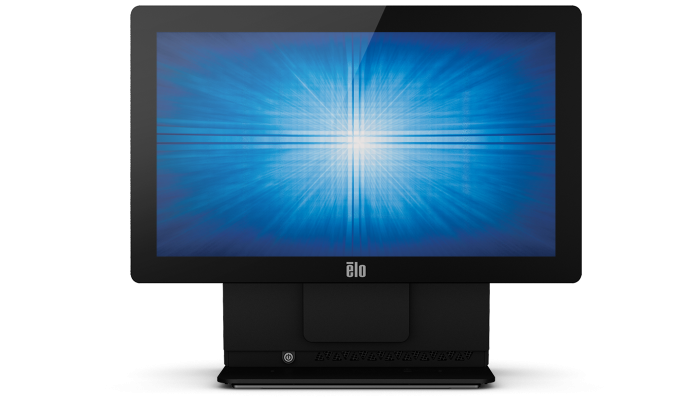

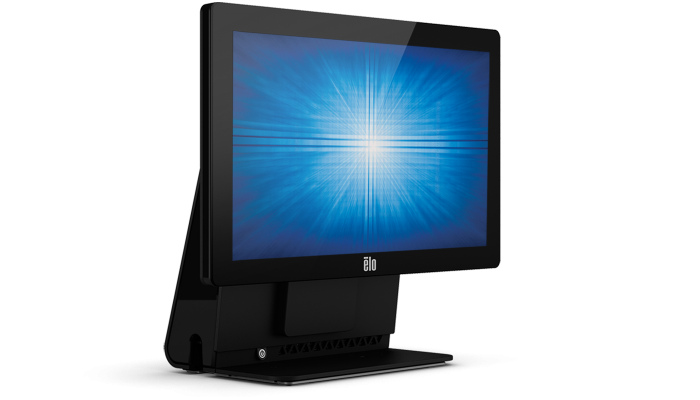

E-Series 15.6-inch (15E2) J1800 AiO Touchscreen Computer (Discontinued)
Overview
The Elo E-Series 15-inch touchscreen computer is a commercial-grade solution that delivers widescreen impact in a greatly reduced form factor. With a rugged design and fan-less operation, the E-Series is ideally suited for use in any retail or hospitality environment. Powered by an Intel Celeron J1800 (RevC) processor, the E-Series provides top-notch performance at a value-based price.
Sleek durability.The E-Series features a seamless edge-to-edge glass design that is easy to clean and built to endure commercial use. Available with IntelliTouch® zero-bezel surface acoustic wave (SAW) or AccuTouch® 5-wire resistive technologies, touch response using a finger, gloved hand, or soft stylus is fast, accurate, and drift free. Both feature pure glass construction that allows high light transmission without compromising durability or functionality. |
 |
 |
Connectivity.The 15-inch E-Series supports third-party peripherals through four USB and two serial ports. A second VGA output is available to add a second customer-facing display for advertising and customer engagement. |
Professional-grade.Rigorously tested and backed by a three-year warranty, the E-Series delivers superior quality and reliability. The fan-less cooling design promotes a noise-free, dust-free and particulate-free operation, allowing you to maximize uptime and performance. |
 |
Other features.
- Serviceable internal components
- Easy mounting with threaded holes on base
- Removable base with 100mm VESA mounting
- Kensington security lock
规格
-
技术
产品料号
AccuTouch (J1800) POSReady (Worldwide) - E058968
AccuTouch (J1800) Win7 (Worldwide) - E325013
AccuTouch (J1800) No OS (Worldwide) - E059167
IntelliTouch (J1800) ZB POSReady (Worldwide) - E023735
IntelliTouch (J1800) ZB Win7 (Worldwide) - E324801
IntelliTouch (J1800) ZB No OS (Worldwide) - E001466
外壳颜色
黑色
触控技术
五线电阻 (AccuTouch®) - 单点触控
SAW ZB (IntelliTouch®表面声波) - 单点触控处理器
Intel® Celeron® 2.41 GHz Dual-Core J1800, 1MB L2 Cache, Fan-less
显卡
Intel HD Graphics
BIOS
AMI
内存 (RAM)
Windows Pro 7: 4GB DDR3L SODIMM on 1 of 1 slot
Windows POSReady 7: 2GB DDR3L SODIMM on 1 of 1 slot (expandable to 4GB)1
No Operating System: 2GB DDR3L SODIMM on 1 of 1 slot (expandable to 4GB)1
(Replaceable with 4GB maximum on 1 slot)
NOTE: Maximum memory using 1 available slot; replacement for single, pre-installed memory module. Replaceable up to 4GB maximum, SODIMM DDR3L-1333.硬盘
320GB 2.5” 7mm SATA HDD
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.对角线
15.6 英寸对角线，有源矩阵 TFT LCD (LED)
长宽比
16:9
有效显示区域 (mm)
IntelliTouch: 13.6" x 7.6" / 344.2mm x 193.5mm
AccuTouch: 13.7” x 7.8” / 348.2mm x 197.5mm分辨率
1366 x 768 @ 60Hz
色彩
262000
亮度 (标准)
LCD panel: 200 nits
IntelliTouch ZB: 180 nits
AccuTouch: 160 nits响应时间 - 总计 (标准)
10 msec
对比度
650:1
可视角度
水平: ±45° 或 90° 总计 / 垂直: 20° / 45° 或 65° 总计
USB端口
4 x USB 2.0
串口
2 x Native DB9 RS-232 (standard)
以太网端口
1 x LAN RJ45 (Gigabit)
额外视频输出
2nd VGA out
音频端口
1 x 3.5mm line out, 1 x 3.5mm line in, 1 x 3.5mm mic in
操作系统
无操作系统
Windows 7 专业版*
Windows 7 POSReady版
Windows 10语言
Windows 7 - 35 语言组
Windows POSReady7 - 35语言组电源
External 19VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 65W (Max Draw: 74W)功耗 (标准)
29W
带底座的最大尺寸
15.4" x 13.0" x 6.3" / 390mm x 330mm x 161mm
不带底座的最大尺寸
15.4" x 11.0" x 9.5" / 390mm x 280mm x 240mm
运输尺寸
18.1" x 15.8" x 9.8" / 460mm x 400mm x 250mm
重量 (含底座)
10.4lbs / 4.7kg
运输重量 (含底座)
16.1lbs / 7.3kg
工作温度
0°C to 35°C / 32°F to 95°F
储存温度
-20°C to 60°C / -4°F to 140°F
湿度
Operating: 20% to 80%
Storage: 5% to 95%机构认证
UL, cUL, FCC, TUV, CB, CE, CoC, VCCI, CCC, KC, BSMI, RCM, UKSERTCOMPUTER
实时时钟
锂离子电池
MTBF
30,000小时演示
安装选项
Wall mount or secure base to tabletop/desktop
质保
3年
密封性
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD其他功能
Serviceable internal components
Threaded holes on bottom of base for mounting
Removable base
Kensington security lock包装内含
E-Series Touchcomputer, North America Power Cord; EU Power Cord; Power Adapter - 90W; Extended cable cover, Quick Installation Guide (QIG)
升级选项
4GB DDR3 SO-DIMM 内存套件
RE/SE系列 AC 电源线订购信息
北美 p/n: E042259
欧洲/韩国 p/n: E690013
中国 p/n: E030476
英国 p/n: E235317
台湾 p/n: E637694
阿根廷 p/n: E98419
日本 p/n: E109553
日本 3针脚至 2针脚适配器: E351985可替换DC电源
19V DC power brick (P/N: E395350) is available at additional cost
可选外设
磁条阅读器 (MSR) – Elo P/N: E122229
顾客显示屏 (VFD) – Elo P/N: E122426
7" LCD 顾客显示屏 – Elo P/N: E791658 (AccuTouch®)支架，支架和套件
壁挂支架套件 – Elo P/N: E143088
后置显示器安装套件 – Elo P/N: E122610
