E281-4035 PC-Bus Controller (Discontinued September 2001)

规格

• 技术

  ---

  产品料号

  498363-000

  技术

  accutouch

  响应时间 - 总计 (标准)

  18 ms for 14" touchscreen
  22 ms for 19" touchscreen
  Half-card size

  尺寸

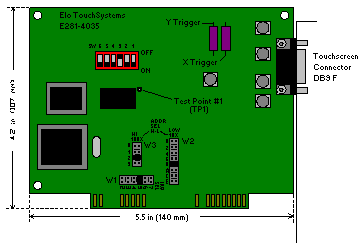

  Please reference dimensional drawing if available.

  分辨率

  900 touchpoints/in2 / 140 touchpoints/cm2

  Construction

  CMOS construction

  工作温度

  0°C to 50°C, 10% to 90% RH, noncondensing

  操作环境

  Polled or interrupt-driven operation

  储存温度

  -40°C to 71°C, 10% to 90% RH, noncondensing

  MTBF

  50,000小时演示

  质保

  5年

  机构认证

  UL and cUL Recognized Components for Information Technology Equipment Model E281-4035 is a UL Listed Accessory

  安装选项

  Surface mount

  其他功能

  Base I/O Port and IRQ jumper selectable
  UL Listed Accessory, File E133802
  Stream or single-point mode
  15 levels of Z-axis response for E281-4035 PC-Bus Controller
  255 levels of Z-axis response for Serial and ADB Controllers
  MTBF calculations per MIL-HDBK-217E, Notice 1 Update
  No CFCs used in manufacture
  On-board diagnostics
